EN Certified Biological Safety Cabinet
Parameter
| Model | BSC-3FA2 (3') | BSC-4FA2(4') | |
| External Size(W*D*H) | 1087*775*2265mm | 1383×775×2295mm | |
| Internal Size(W*D*H) | 910*600*660mm | 1210×600×660mm | |
| Work Surface Height | 750mm | ||
| Max Opening | 520mm (21’’) | 550mm (22’’) | |
| Tested Opening | Safety height 200mm (8’’) | ||
| Airflow Volume |
Inflow | 348m3/h(205cfm) | 462m3/h(272cfm) |
| Down flow | 65%:649m3/h(382cfm) | 65%:863m3/h(507cfm) | |
| Exhaust | 35%:348m3/h(205cfm) | 35%:462m3/h(272cfm) | |
| Front Window |
Manual. Two-layer laminated toughened glass ≥5mm. Anti UV | ||
| HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator | ||
| Filter Guard Type |
Aluminum alloy frame | ||
| Noise |
NSF 49≤61 dB/EN 12469≤58 dB | ||
| Illumination |
≥1000Lux | ||
| Display |
LCD Display | ||
| Waterproof Socket | 2, Total consumption: ≤500W | ||

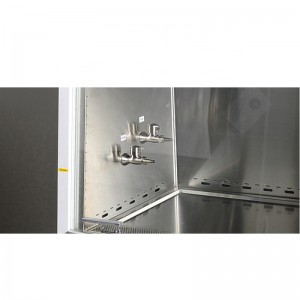

| Tap | Water tap*1, Gas tap *1 | ||
| Ground Resistance | ≤ 0.10Ω | ||
| Power Supply | AC230V, 50Hz | ||
| Consumption | ≤500W | ≤600W | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height | ||
| AC Motor | One ECM motor, 230V acceptable, Speed adjustable, high efficiency and low power consumption |
||
| Material | Working area: 304stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating |
||

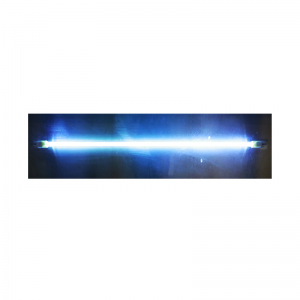

| UV Lamp |
18W | 30W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||
| Fluorescent lamp |
21W*2 | 28W*2 | |
| Standard Accessory |
Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, stainless Steel I.V. bar with 10 hooks. | ||
| Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, Electric height adjustable base stand, Motorized front window | ||
| Package Size (W*D*H) | 1250*1080*1840mm | 1540*1080*1900mm | |
| Gross Weight |
270kg | 334kg | |
Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Advantage

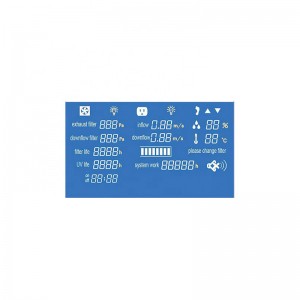

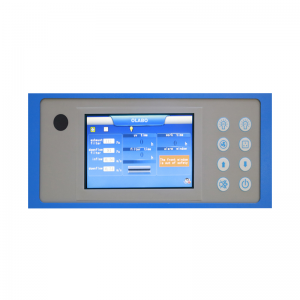

- Large LCD display, all information displayed.
- Automatic air speed adjustable with filter block.
- With memory function in case of power-failure.
- Side & back wall is made up of single piece stainless steel.
- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
- Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
