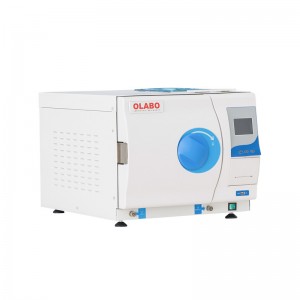

Table Top Autoclave Class B Series

Short Description:

BKMZA series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions.


Product Detail

Brochures

Product Tags

Parameter

Model BKM-Z18A BKM-Z23B
Capacity 18L 23L
Chamber Size(mm) φ247*360 φ247*470
Sterilization Class Class B (according toGB0646)
Sterilization Temp. 121℃,134℃
Special Program /
Drying System Vacuum drying system
Display LCD display
Testing System B&D Test
Vacuum Test
Helix Test
Control Precision Temperature: 1℃
Pressure: 0.1bar
Sterilization Data BKM-Z16B:Printer(optional)
BKM-Z18B/BKM-Z24B:USB(standard) and printer(optional)
Safety System Hand lock door
Pressure lock system
Relief valve in case of over pressure
Pressure or temperature over load protection
Alarm for system failure, finish reminding, water level warning
Water Supply System Build-in water tank easy to clean
WaterTankCapacity 4L
Water Consumption 0.16L~0.18L in one cycle
Tray Holder 3 pcs SS trays on SS shelf
Chamber SUS304
Max working pressure:2.3bar
Min working pressure: -0.9bar
Designtemperature: 140℃
Ambient Temp. 5~40℃
Noise <50dB
Consumption 1950W 1950W
Power Supply 110/220V±10%,50/60Hz
External Size(W*D*H)mm 495*600*410 495*700*410
Packing Size(W*D*H)mm 610*810*590 610*810*590
Gross Weight(kg) 63 65
Model BKMZA
Internal dimensions/mm Φ247×360
Overall dimension/mm 600×495×410
Net weight/Kg 48
Power / VA 2000
Equipment type Class B
Power Supply AC220V±22V,50Hz
Sterilization temperature 121℃/134℃
Design pressure 0.28MPa
Water tank capacity About 3.5L (maximum water level); minimum water supply 0.5L (minimum water level)
Ambient temperature 5~40℃
Relative humidity ≤85%
Atmospheric pressure 76Kpa-106kpa
Model BKMZB
Internal dimensions/mm Φ247×470
Overall dimension/mm 700×495×410
Net weight/Kg 53
Power / VA 2000
Equipment type Class B
Power Supply AC220V±22V,50Hz
Sterilization temperature 121℃/134℃
Design pressure 0.28MPa
Water tank capacity About 3.5L (maximum water level); minimum  water supply 0.5L (minimum water level)
Ambient temperature 5~40℃
Relative humidity ≤85%
Atmospheric pressure 76Kpa-106kpa
Model BKM-Z45B
Capacity 45L
Design pressure -0.1~0.3MPa
Sterilization temperature 105-138℃
Cavity material SUS304
Power Supply AC220V, 50/60HZ
Power  5.8KW
Ambient temperature 5-40℃
Internal dimensions/mm φ316*621
Overall dimension/mm 1000*610*560
Net weight/Kg 150

Application

BKMZA series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room
and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Features

1. Build-in open type water tank
The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.

2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.

3. Large LCD display for BKMZA/BKMZB
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.

4. Multiple program types
The system has various programs that include packed items, unpacked items, BD testing program, vacuum testing program and drying function.
Custom program, rapid program and preheat function(for BKM-Z16B).

5. Standard USB port for BKMZA/BKMZB
Users can store the sterilization data with USB disk.

6. Optional mini printer can be attached to record the process of sterilization.


  • Previous:
  • Next:

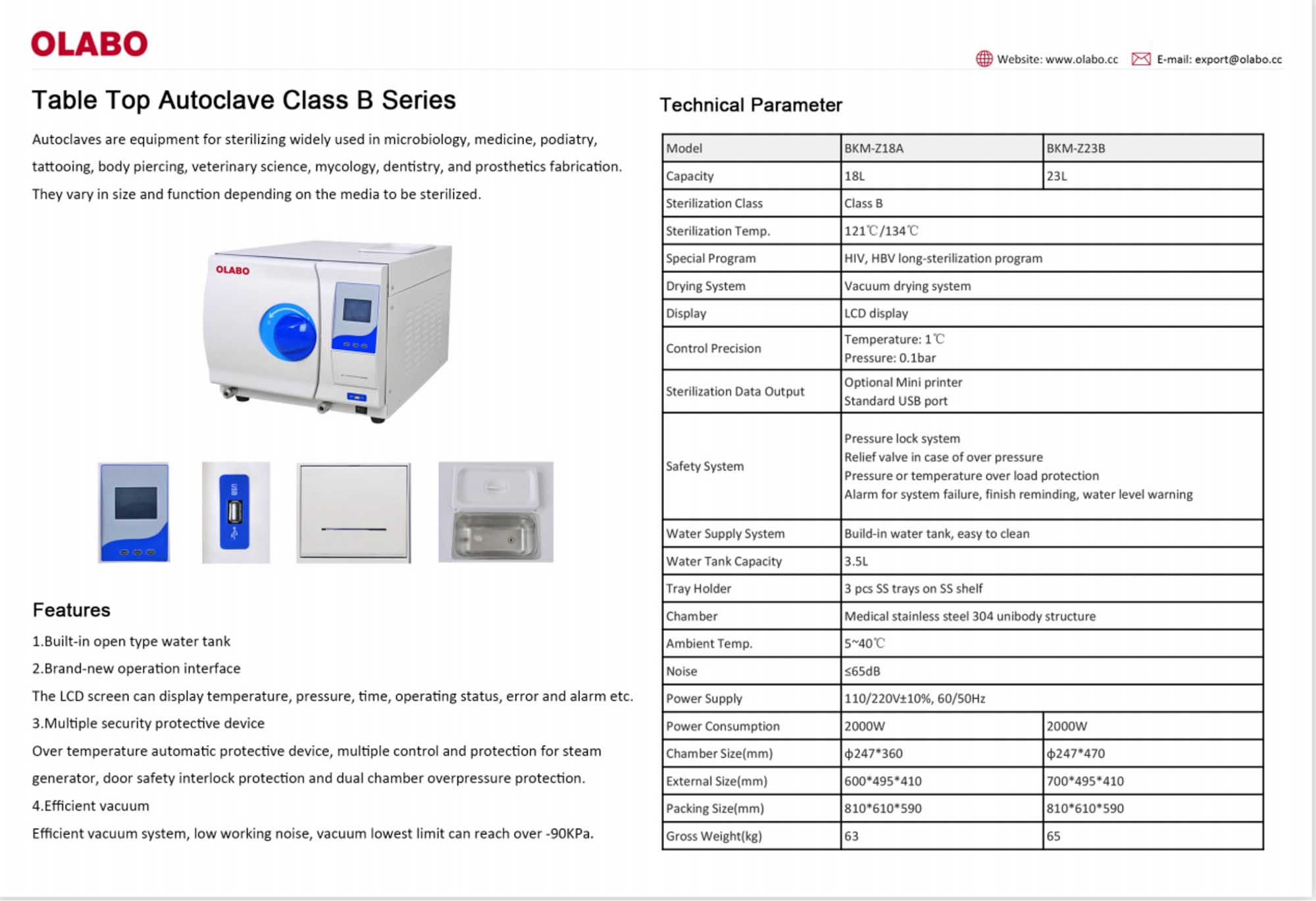

  • Download: Dental-Autoclave-Brochure Table Top Autoclave Class B Series
