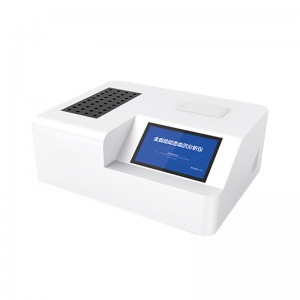

Auto ESR Analyzer BK-ESR40

Short Description:

Introduction:
ESR testing has important guiding significance for many clinical diseases, but the traditional standard Westergren method has complicated operation, low work efficiency and large cross-contamination. Automatic ESR analyzer uses advanced infrared light color difference interpretation technology to automatically scan the whole process of red blood cell sedimentation within 30 minutes for the sample of the vacuum blood collection tube, and refer to the Westergren method to measure the standard curve to obtain accurate results.


Product Detail

Brochures

Product Tags

Application:

Applicable to hospital inspection departments, medical laboratories, research institutes, universities, disease control centers, etc.



Feature:

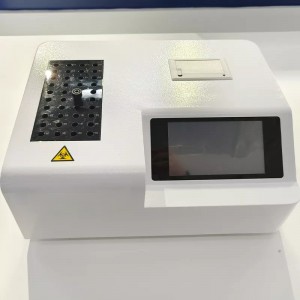

  1. 7-inch color touch LCD screen, easy to operate, high resolution
  2. 80 samples/hour, rapid detection
  3. Randomly insert sample positions for testing at any time
  4. Built-in thermal printer for easy data printing
  5. Results are automatically temperature compensated
  6. Advanced optical testing principles to overcome reading errors in manual methods
  7. Power-off save function, automatically save the test results



Technical Parameter:

Model BK-ESR40
Application Erythrocyte sedimentation rate analysis
Measurement Method Infrared detection
Analysis Result Westergren ESR value (mm/hour)
Throughput Maximum 80 tests/hour

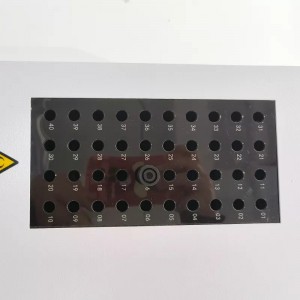

Analysis Channels 40 (load up to 40 samples for analysis at the same time)
Loading Type Load samples at any time, measure at any time
Analysis Time 30 minutes or 60 minutes selectable
Sampling Interval 3 min
Measurement Range 0~120mm/h
Temperature Compensation The result is automatically corrected to the result at 18°C
Result Resolution 1mm/1h and 1mm/2h
Blood Level Range 50mm~64mm
Result Accuracy ±2mm/h (ESR≤30mm/h)±3mm/h (30mm/h<ESR≤80mm/h)±5mm/h (ESR>80mm/h)
Result Precision CV≤2%
Channel Error ≤±4mm/h
Reading Accuracy 0.2mm
Timing Accuracy 90
Display 7-inch color LCD touch screen

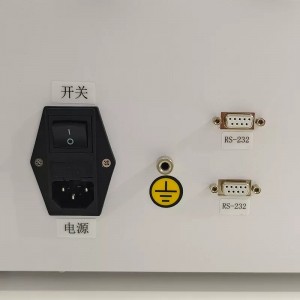

Communication Interface RS232 serial interface
Printer Built-in thermal printer
Power Supply AC220V 50/60Hz
External Size (W* D*H) 360*300*180mm
Net Weight 7.3kg
Package Size (W* D*H) 395*335*375mm
Gross Weight 10kg

  • Previous:
  • Next:

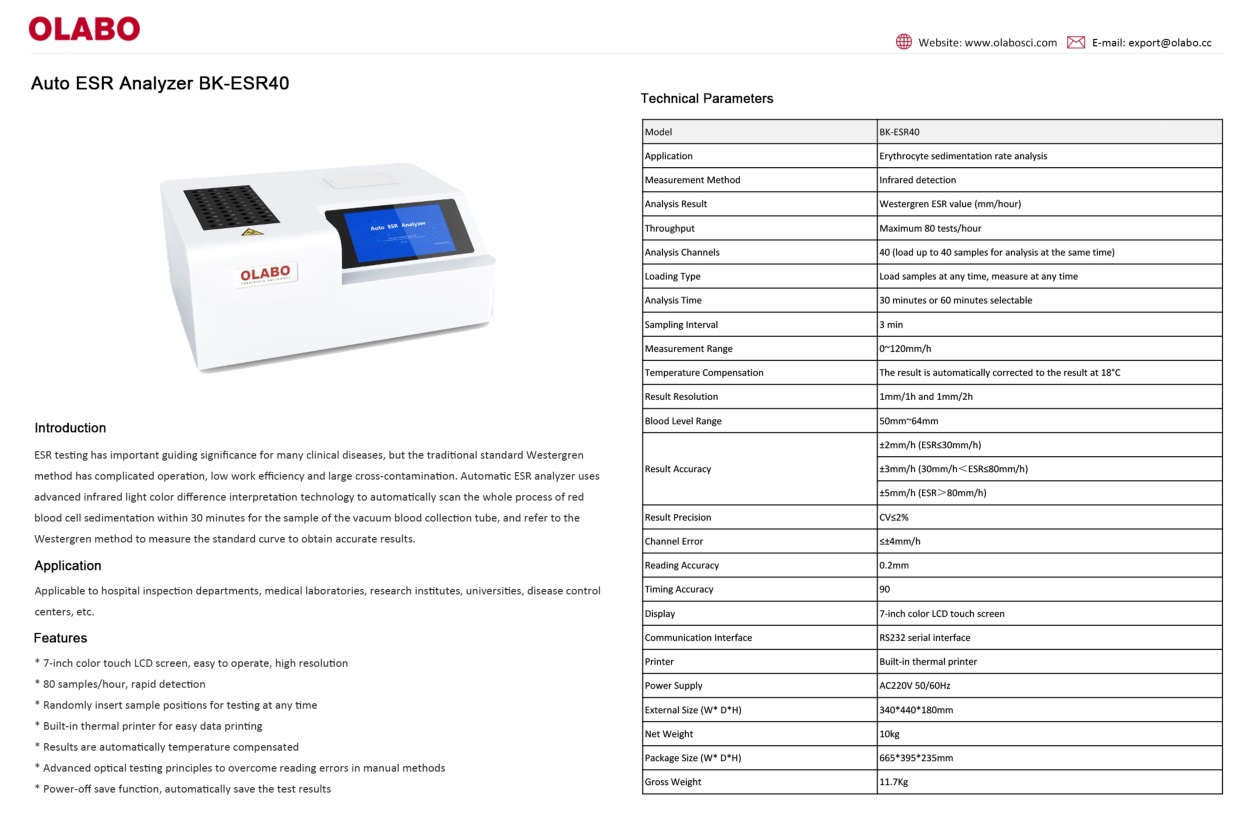

  • Downloads: Auto ESR Analyzer BK-ESR40

    OLABO-BK-ESR40
