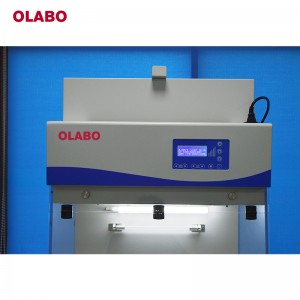

Small Benchtop Vertical Compounding Hood Manufacturer BBS-V500,V600,V700 BYKG-V Series

Short Description:

There are two types:

- Positive pressure in work area only protects sample.

- Negative pressure in work area protects operator and environment.

Product Detail


Product Tags


External Size (W*D*H)mm 550*460*700 600*581*1115 700*620*1150 1000*620*1150 1200*620*1150
Internal Size (W*D*H) 480*340*370 580*520*613 640*550*700 940*550*700 1140*550*700
Display LED Display LCD Display LED Display
Airflow Velocity 0.3~0.5m/s ≥0.5m/s 0.3~0.5m/s 0.3~0.8m/s 0.3~0.5m/s 0.3~0.8m/s
Material Main Body Cold-rolled steel with anti-bacteria power coating
  Work Table 304 Stainless steel Chemical resistant phenolic resin

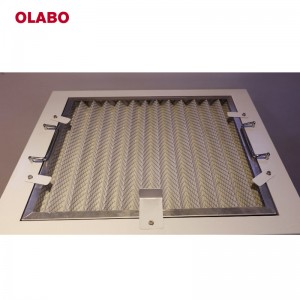

Pre-Filter Polyester fiber, washable(for BBS-V500,BBS-V600 and BBS-V700)
Filter HEPA Filter Active Carbon Filter, HEPA Filter Active Carbon Filter HEPA Filter Active Carbon Filter Active Carbon Filter,HEPA Filter
HEPA Filter
Noise ≤60dB
Front Window Manual, 5mm toughened glass, anti UV Manual, acrylic material
Max Opening 310mm 590mm 660mm

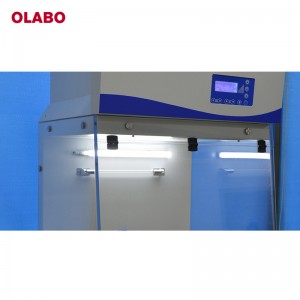

LED Lamp 4W*1 4W*2 12W*1

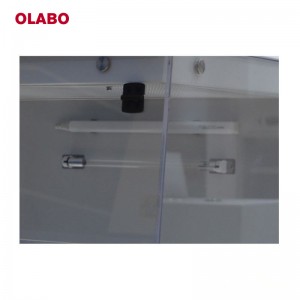

UV Lamp 8W*1 15W*1 15W*1
  Emission of 253.7 nanometers
Consumption 100W 150W 300W 300W
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory HEPA Filter Active Carbon Filter HEPA Filter Active Carbon Filter, HEPA Filter Active Carbon Filter
LED Lamp HEPA Filter LED Lamp LED Lamp LED lamp*2, UV Lamp*2 HEPA Filter(for model BYKG-X,BYKG-XII)
UV Lamp*2 LED Lamp UV Lamp*2 UV Lamp*2   LED lamp*2
  UV Lamp*2 Waterproof Socket. Waterproof Socket.   4 meters PVC exhaust duct,
          Pipe Strap.
Optional Accessory / Base Stand Base Stand, UV Lamp*2
Gross Weight 57kg 90kg 100kg 145kg 190kg
Package Size (W*D*H)mm 700*610*830 760*740*1280 840*760*1400 1140*740*1340 1340*740*1360


1. Air speed adjustable.

2. Tabletop type, easy to carry and save space.

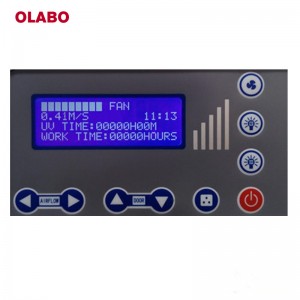

3. Microprocessor control system, LED Display.

4. HEPA Filter with efficiency: 99.999% at 0.3 μm.

  • Previous:
  • Next:

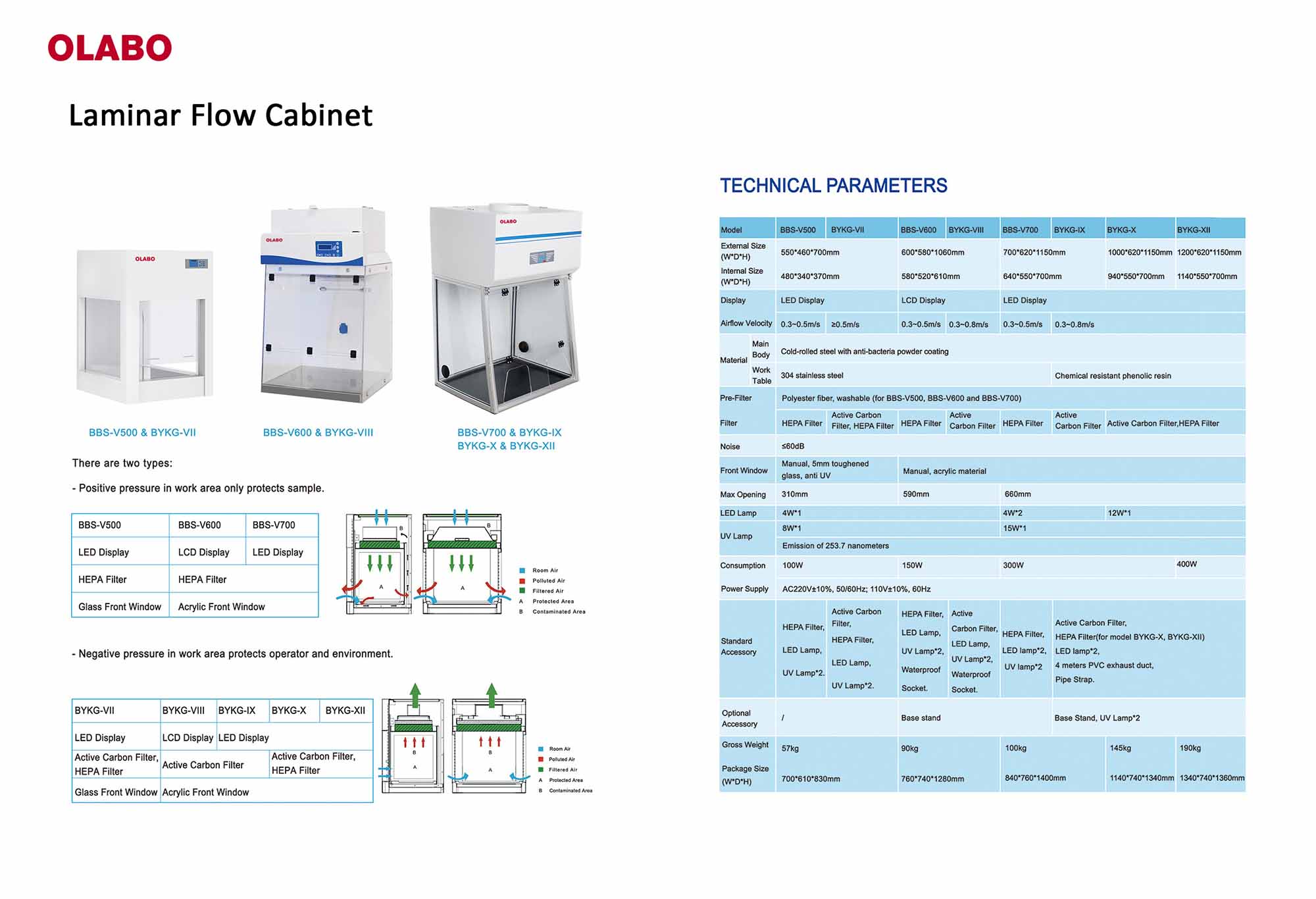

  • Download: Laminar Flow Cabinet Laminar Flow Cabinet BBS-V600
