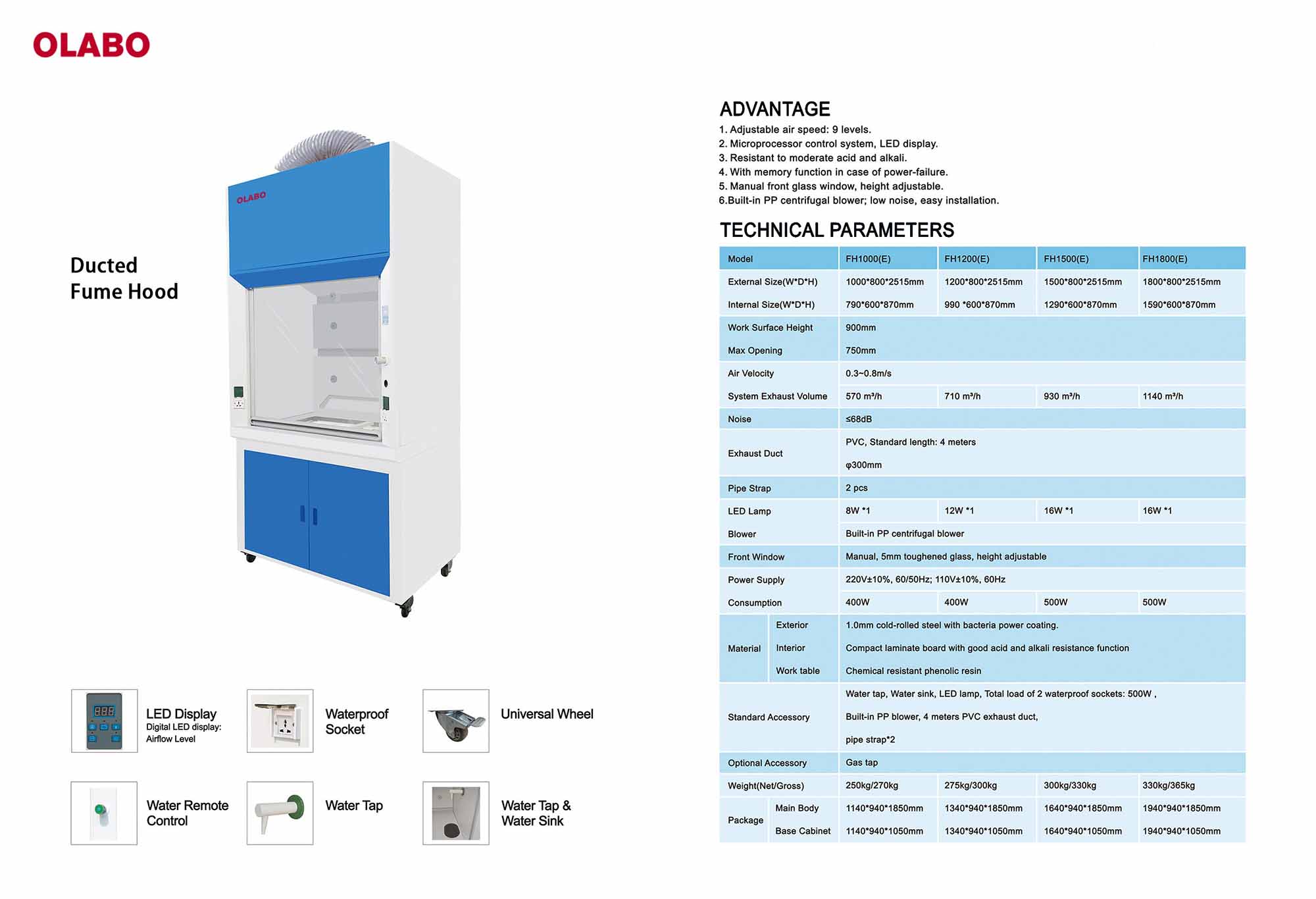

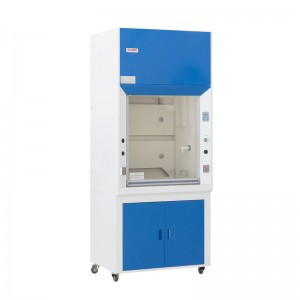

OLABO Manufacturer Ducted Fume-Hood(E) For Laboratory
Parameter
| Model | FH1000(E) | FH1200(E) | FH1500(E) | FH1800(E) | |||
| External Size(W*D*H) | 1000*800*2515mm | 1200*800*2515mm | 1500*800*2515mm | 1800*800*2515mm | |||
| Internal Size(W*D*H) | 790*600*870mm | 990*600*870mm | 1290*600*870mm | 1590*600*870mm | |||
| Work Surface Height | 900mm | ||||||
| Max Opening | 750mm | ||||||
| Air Velocity | 0.3~0.8m/s | ||||||
| System Exhaust Volume | 570 m3/h | 710 m3/h | 930 m3/h | 1140 m3/h | |||
| Noise | ≤68dB | ||||||
| Exhaust Duct |
PVC, Standard length: 4 meters | ||||||
| φ300mm | |||||||
| Pipe Strap |
2 pcs | ||||||
| LED Lamp | 8W *1 | 12W *1 | 16W *1 | 16W *1 | |||
| Blower |
Built-inPP centrifugal blower | ||||||
| Front Window |
Manual, 5mm toughened glass, height adjustable | ||||||
| Power Supply | 220V±10%, 60/50Hz;110V±10%, 60Hz | ||||||
| Consumption |
400 W | 400 W | 500 W | 500 W | |||
| Material |
Exterior | 1.0mm cold-rolled steel with bacteria power coating. | |||||
| Interior | High grade melamine board with good acid and alkali resistance function | ||||||
| Work table | Chemical resistant phenolic resin | ||||||
| Standard Accessory |

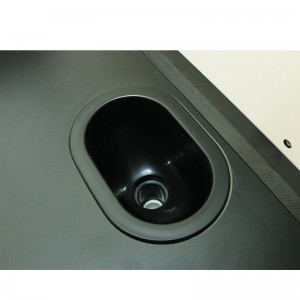

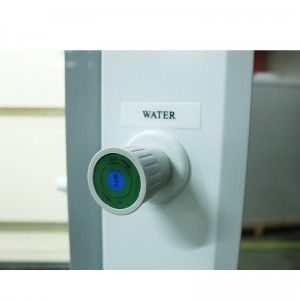

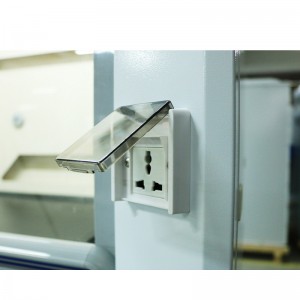

Water tap, Water sink, LED lamp, Total load of 2 waterproof sockets: 500W, Built-in PP blower, 4 meters PVC exhaust duct, Pipe strap*2 | ||||||
| Optional Accessory |
Gas tap | ||||||
| Weight(Net/Gross) | 250kg/270kg | 275kg/300kg | 300kg/330kg | 330kg/365kg | |||
| Package |
Main Body | 1140*940*1850mm | 1340*940*1850mm | 1640*940*1850mm | 1940*940*1850mm | ||
| Base Cabinet | 1140*940*1050mm | 1340*940*1050mm | 1640*940*1050mm | 1940*940*1050mm | |||
Advantage
- Adjustable air speed: 9 levels.

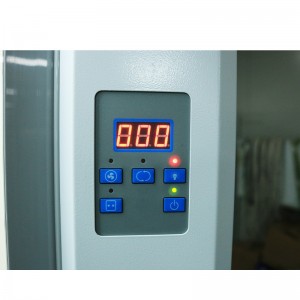

- Microprocessor control system, LED display.
- Resistant to moderate acid and alkali.
- With memory function in case of power-failure.
- Manual front glass window, height adjustable.
- Built-in PP centrifugal blower; low noise, easy installation.
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Download:
Ducted Fume-Hood(E)
