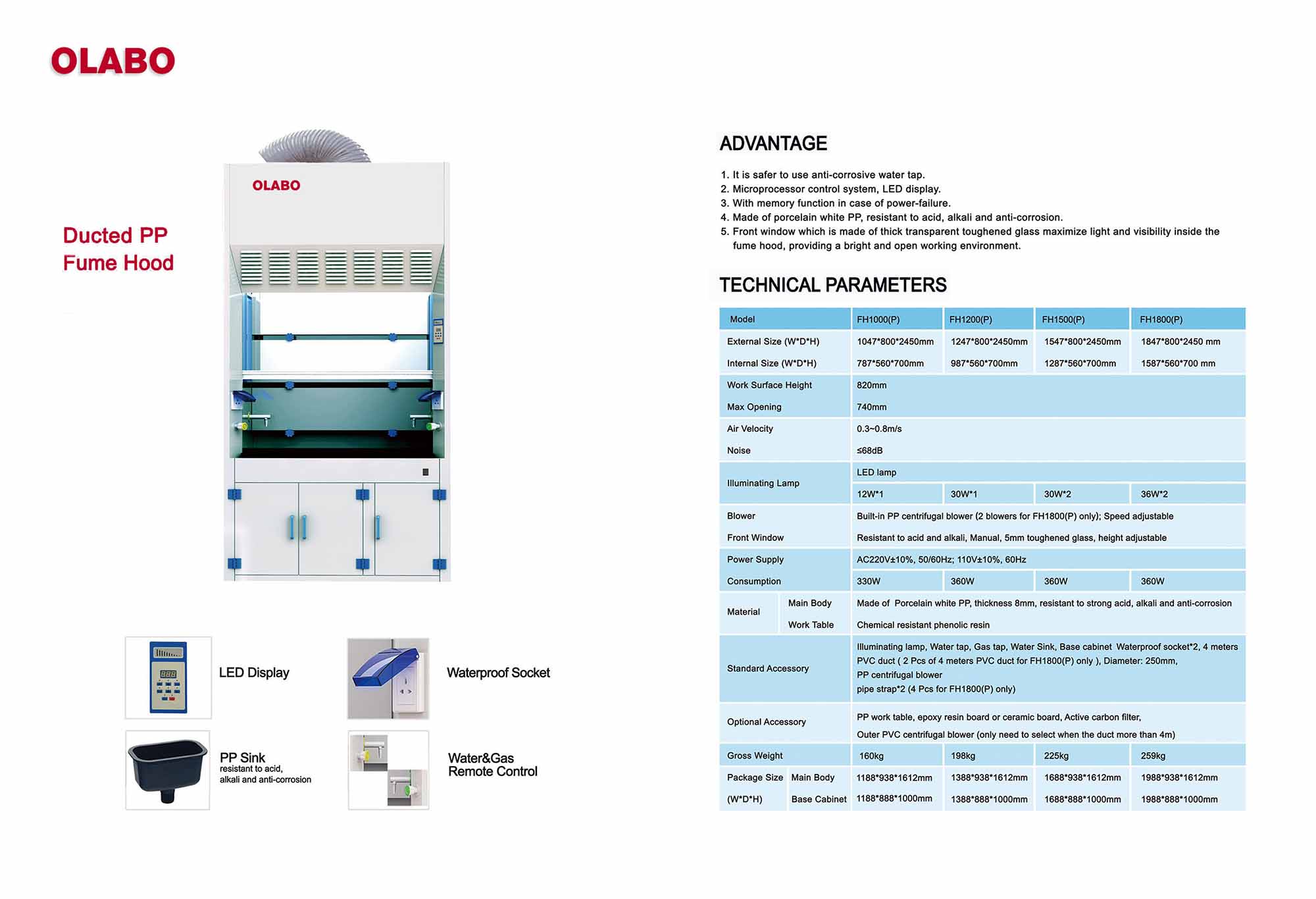

OLABO Manufacturer Ducted Fume-Hood(P) For Lab
Parameter
| Model | FH1000(P) | FH1200(P) | FH1500(P) | FH1800(P) | |
| External Size (W*D*H) | 1047*800*2450mm | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450 mm | |
| Internal Size (W*D*H) | 787*560*700mm | 987*560*700mm | 1287*560*700mm | 1587*560*700 mm | |
| Work Surface Height | 820mm | ||||
| Max Opening | 740mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Illuminating Lamp | LED lamp | ||||
| 12W*1 | 30W*1 | 30W*2 | 36W*2 | ||
| Blower | Built-in PP centrifugal blower（2 blowers for FH1800(P) only); Speed adjustable | ||||
| Front Window | Resitant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 330W | 360W | 360W | 360W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion | |||
| Work Table | Chemical resistant phenolic resin | ||||

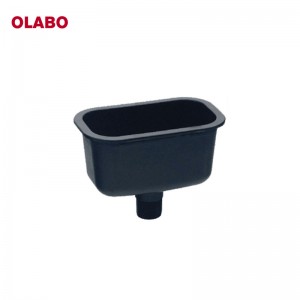

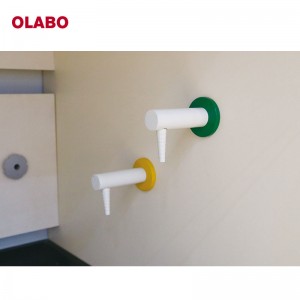

| Standard Accessory | Illuminating Lamp, Water tap, Gas tap, Water Sink, Base cabinet | ||||

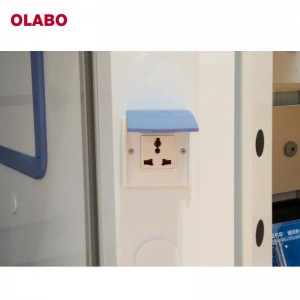

| Waterproof socket*2, PP centrifugal blower, pipe strap*2(4 Pcs for FH1800(P) only) | |||||
| 4 meters PVC duct (2 Pcs of 4 meters PVC dust for FH1800(P) only), Diameter:250mm | |||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board, Active carbon filter | ||||
| Outer PVC centrifugal blower(only need to select when the duct more than 4m) | |||||
| Gross Weight | 225kg | 253kg | 294kg | 346kg | |
| Package Size (W*D*H) |
Main Body | 1188*938*1612mm | 1388*938*1612mm | 1688*938*1612mm | 1988*938*1612mm |
| Base Cabinet | 1188*888*1000mm | 1388*888*1000mm | 1688*888*1000mm | 1988*888*1000mm | |
Advantage
- It is safer to use anti-corrosive water tap.

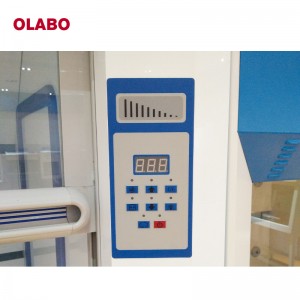

- Microprocessor control system, LED display
- With memory function in case of power-failure
- Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
- Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, medicine, universities, laboratories and other fields. The fume hood can be used for the operation of potentially dangerous or unknown infection factors, as well as the experiment of strong acid, strong alkali, strong corrosive and volatile. Protect operator and sample safety.
