OLABO 3 Parts Auto Hematology Analyzer BK-3100
Features:
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen
2. Fewer samples are required for testing: whole blood≤10ul, pre-diluted≤20ul
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. It can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available
2. Fewer samples are required for testing: whole blood≤10ul, pre-diluted≤20ul
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. It can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available

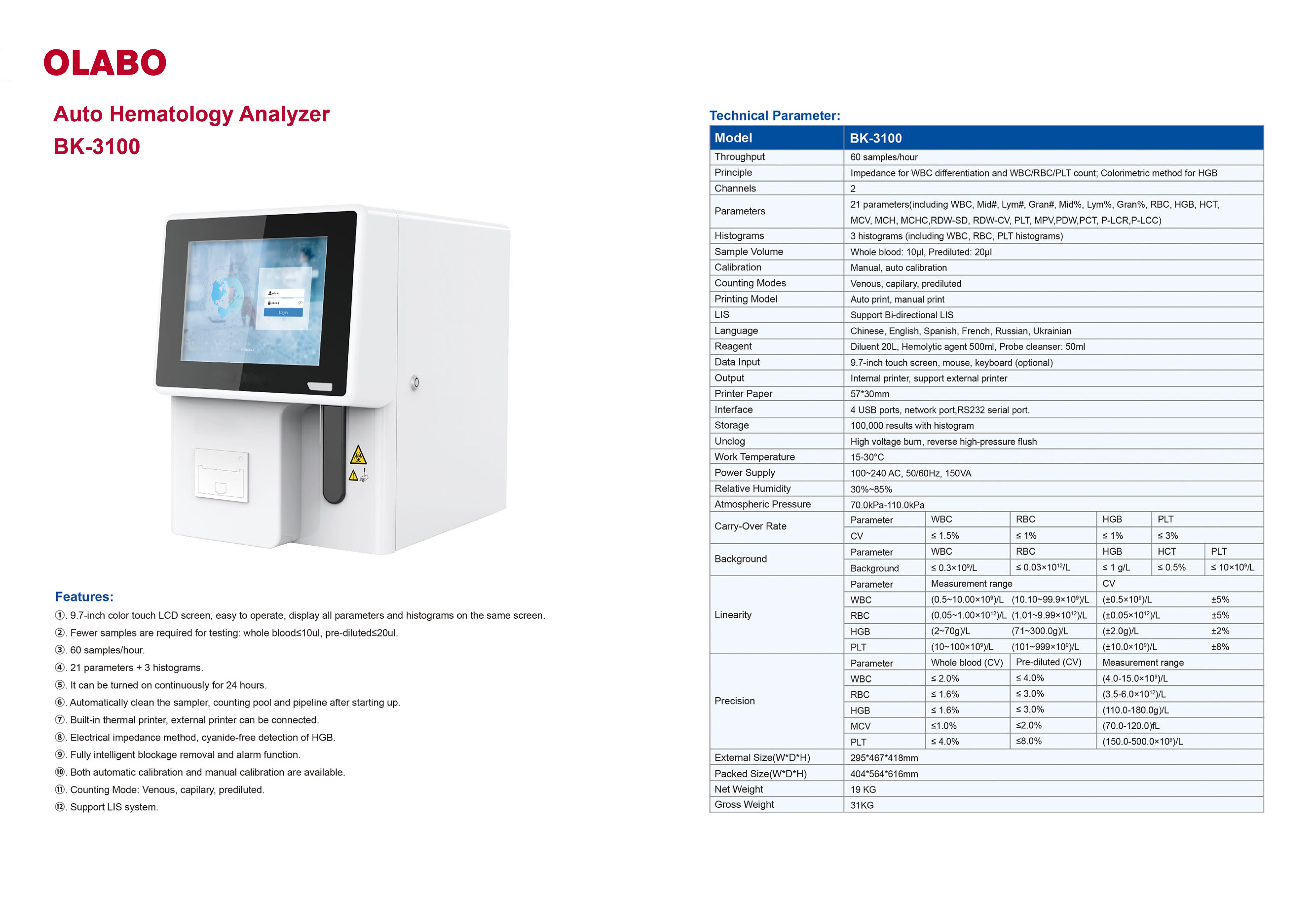

Technical Parameters:
|
Model
|
BK-3100
|
|||||
|
Throughput
|
60 samples/hour
|
|||||
|
Channels
|
2
|
|||||
|
Parameters
|
21 parameters
|
|||||
|
Histograms
|
3 histograms
|
|||||
|
Sample Volume
|
Whole blood: 10μl, Prediluted: 20μl
|
|||||
|
Calibration
|
Manual, auto calibration
|
|||||
|
Counting Modes
|
Venous, capilary, prediluted
|
|||||
|
Printing Model
|
Auto print, manual print
|
|||||
|
Language
|
Chinese, English, Spanish, French, Russian, Ukrainian
|
|||||
|
Reagent
|
Diluent 20L, Hemolytic agent 500ml, Probe cleanser: 50ml
|
|||||
|
Data Input
|
9.7-inch touch screen, mouse, keyboard (optional)
|
|||||
|
Output
|
Internal printer, support external printer
|
|||||
|
Printer paper
|
57*30mm
|
|||||
|
Interface
|
4 USB ports, network port，RS232 serial port.
|
|||||
|
Storage
|
100,000 results with histogram
|
|||||
|
Unclog
|
High voltage burn, reverse high-pressure flush
|
|||||
|
Work Temperature
|
15-30°C
|
|||||
|
Power Supply
|
100~240 AC, 50/60Hz, 150VA
|
|||||
|
Relative Humidity
|
30﹪～85﹪
|
|||||
|
Atmospheric Pressure
|
70.0kPa-110.0kPa
|
|||||
|
External Size(W*D*H)
|
295*467*418mm
|
|||||
|
Packed Size(W*D*H)
|
404*564*616mm
|
|||||
|
Net weight
|
19 KG
|
|||||
|
Gross weight
|
31KG
|
|||||
Downloads: BK-3100
