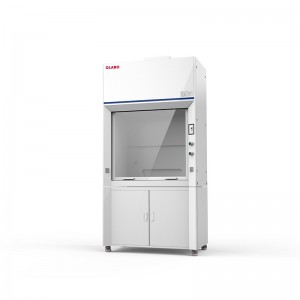

Fume Hood BK-FH1200E

Short Description:

The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning (integral type)


Product Detail

Brochures

Product Tags

2587-202305311448137640

Advantage

1, The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized;

2, Made of high quality cold rolled steel plate material, with surface electrostatic spraying and good finish;

3, The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning (integral type);

4, The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments;

5, Counterweight manual front window, height adjustable;

6, Equipped with large capacity bottom cabinet to place laboratory supplies, surface electrostatic spraying, more beautiful and practical;

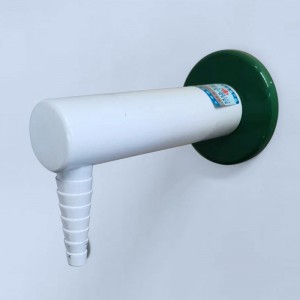

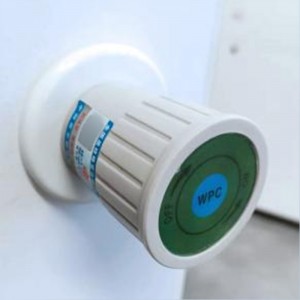

7, Equipped with wall mounted water supply cock, water supply flow control valve, laboratory sink, convenient experiment;

8, Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation;

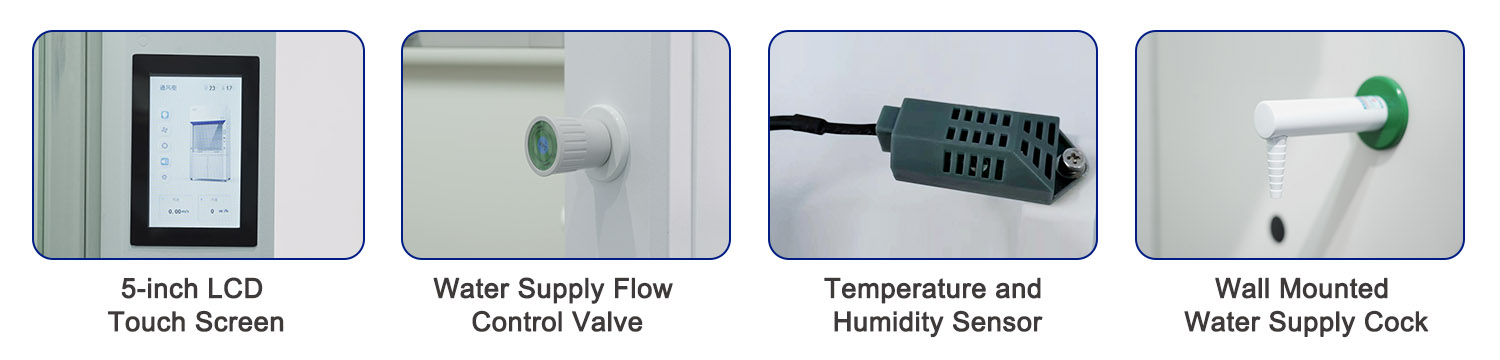

9, Equipped with a 5-inch LCD touch screen, the running state of the machine is clear;

10, The side of the cabinet body is equipped with lifting handles to facilitate carrying.



Technical Parameters

Model BK-FH1200E
Number of Users Single
Rated Power 125W (Load power cannot exceed 500W)
Exhaust Volume 2300 m³/h
Air Velocity 0.3m/s~0.8 m/s
Noise ≤65dB(A)
LED Lamp Power 12W
Max Opening 500mm
Tabletop Height 915mm

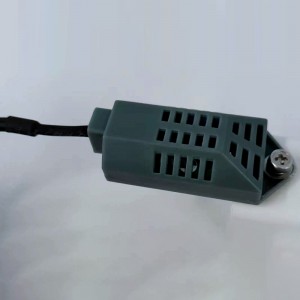

Standard Accessory LED lamp*1, Transparent socket*2, Temperature and humidity sensor, Wall mounted water supply cock, Water supply flow control valve
Optional Accessory Armrest*2, Wall mounted gas supply cock, Gas supply flow control valve
Net Weight 240kg
Gross Weight Cabinet

310kg

Base Stand 110kg
External Size

(W×D×H)



1200×800×2550mm

Internal Size

(W×D×H)



990×605×900mm

Package Size

(W*D*H)

Cabinet 1460*1010*1905mm
Base Stand 1460*1010*1035mm
