Class III Biological Safety Cabinet
Parameter
| Model | BSC-1100IIIX | BSC-1500IIIX |
| External Size(W*D*H) | 1540*880*2000 mm | 1790*880*2080 mm |
| Internal Size(W*D*H) | 910*650*660 mm | 1165*650*660 mm |
| Pass Box Size(W*D*H) | Internal Size:430*330*355mm | |
| External Size:575*425*495mm | ||
| Gloves | One pair of 800mm butyl rubber gloves | |
| Front Window | 8 mm toughened glass, anti-ultraviolet radiation | |
| Display | LCD display | |
| Pre-filter | Polyester fiber, washable | |
| Pressure | ≥ negative120 Pa | |
| ULPA Filter | Air supply filter: Efficiency 99.9995% at 0.12μm | |
| First exhaust filter: Efficiency 99.9995% at 0.12μm | ||
| Second exhaust filter: Efficiency 99.9995% at 0.12μm | ||
| Noise | NSF 49 ≤61dB/EN 12469≤48dB | |
| Alarm | Audio and visual alarm, abnormal pressure; filter replacement | |
| Work Zone Material | 304 stainless steel | |
| Illumination | ≥ 1000 lux | |
| Consumption | 1200W | 1300W |
| LED Lamp | 12W*2 | 16W*2 |
| UV Lamp | 18W*2 ,8W*1 | 30W*2, 8W*1 |
| Emission of 253.7 nanometers for most efficient decontamination | ||
| Power Supply | AC220V±10%, 50/60 Hz;110V±10%,60Hz | |
| Gross Weight | 350kg | 450kg |
| Package Size(W*D*H) | 1635*1062*2160mm | 1890*1065*2240mm |
| Standard Accessories | Gloves, fluorescent lamp, UV lamp*4, remote control, pressure meter, drain valve | |

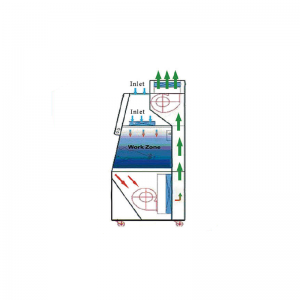

Class III Biosafety Cabinet is totally enclosed and gas-tight with ULPA filtered supply and exhaust air. Work is performed with long-sleeved gloves. The cabinet is kept under negative pressure of at least 120Pa, and airflow is maintained by a dedicated exterior exhaust system. It can protect the operator, product and environment.

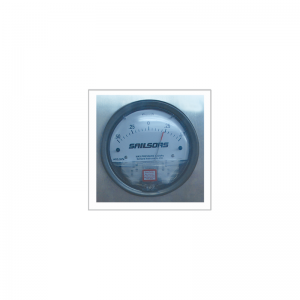

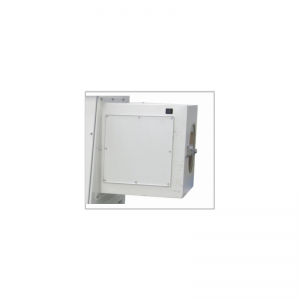

| Pass Box | Pressure Meter |
| Double doors with interlock function and UV lamp. | Display the pressure of work zone. |

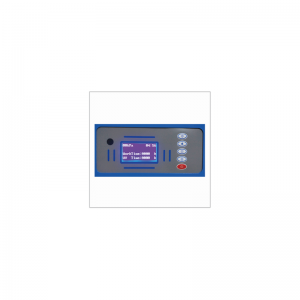

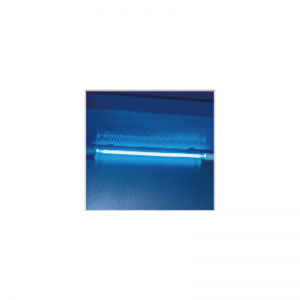

| UV Lamp | LCD Display |
| Emission of 253.7 nanometers for most parameters efficient decontamination. | Large diaplay is easy to monitor the pressure for work zone and three filters. |
Advantage
- With memory function in case of power-failure.
- UV lamp ensures work area sterilization effectively.
- An angled cabinet front ensure an ergonomic working posture.
- Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.9995% for 0.12μmparticles.
Download:
Class III Biological Safety Cabinet
