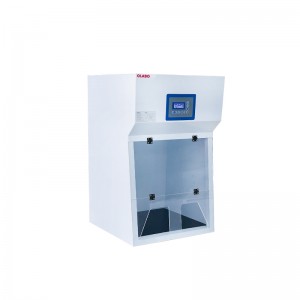

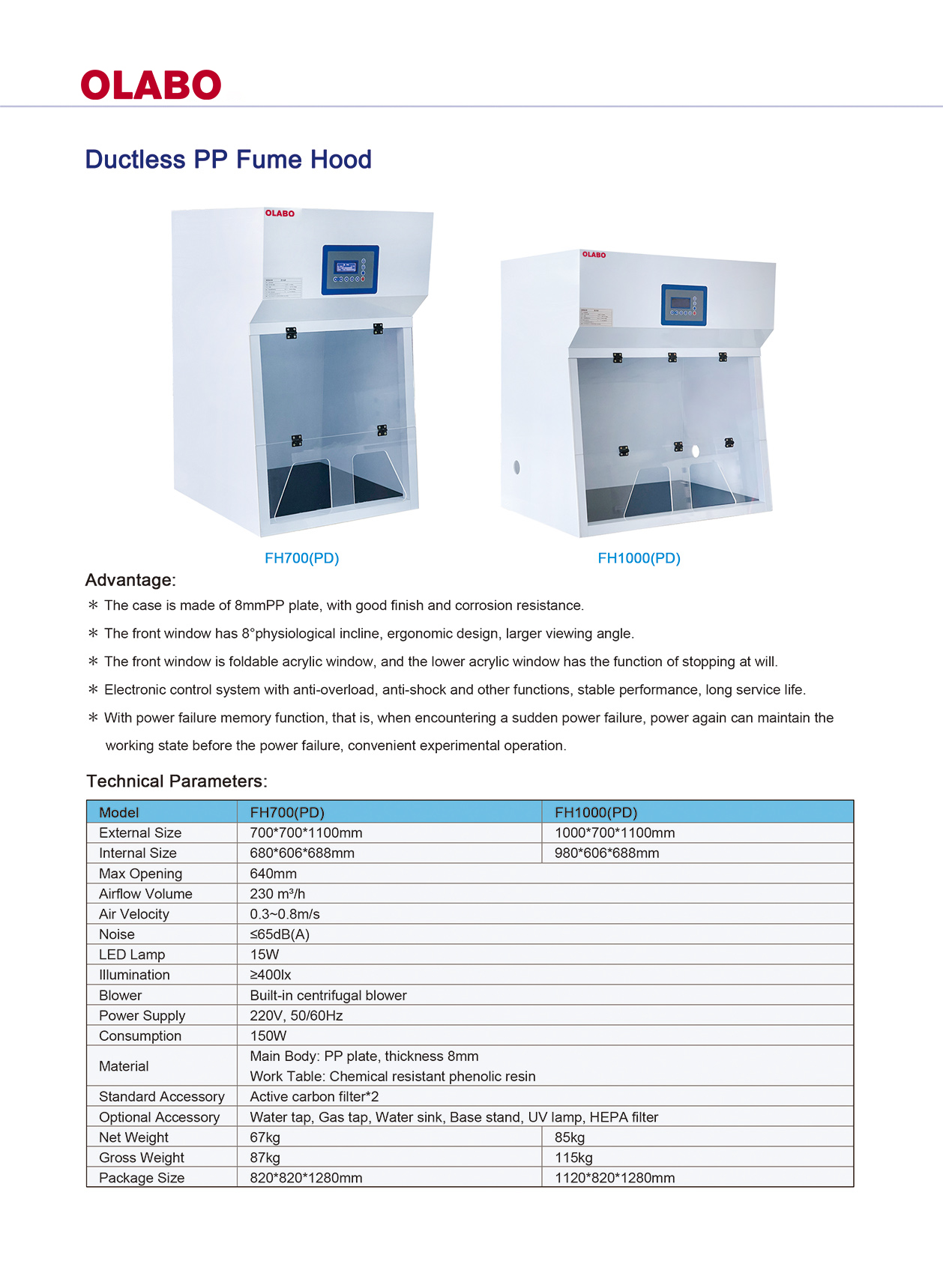

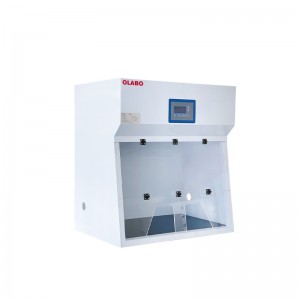

Ductless PP Fume Hood FH700(PD) FH1000(PD)
ADVANTAGE
* The case is made of 8mmPP plate, with good finish and corrosion resistance.
* The front window has 8°physiological incline, ergonomic design, larger viewing angle.
* The front window is foldable acrylic window, and the lower acrylic window has the function of stopping at will.
* Electronic control system with anti-overload, anti-shock and other functions, stable performance, long service life.
* With power failure memory function, that is, when encountering a sudden power failure, power again can maintain the working state before the power failure, convenient experimental operation.
TECHNICAL PARAMETERS
| Model | FH700(PD) | FH1000(PD) |
| External Size | 700*700*1100mm | 1000*700*1100mm |
| Internal Size | 680*606*688mm | 980*606*688mm |
| Max Opening | 640mm | |
| Airflow Volume | 230 m³/h | |
| Air Velocity | 0.3~0.8m/s | |
| Noise | ≤65dB(A) | |
| LED Lamp | 15W | |
| Illumination | ≥400lx | |
| Blower | Built-in centrifugal blower | |
| Power Supply | 220V, 50/60Hz | |
| Consumption | 150W | |
| Material | Main Body:PP plate,thickness 8mmWork Table: Chemical resistant phenolic resin | |
| Standard Accessory | Active carbon filter*2 | |
| Optional Accessory | Water tap, Gas tap, Water sink, Base stand, UV lamp, HEPA filter | |
| Net Weight | 67kg | 85kg |
| Gross Weight | 87kg | 115kg |
| Package Size | 820*820*1280mm | 1120*820*1280mm |
Downloads: Ductless PP Fume Hood
