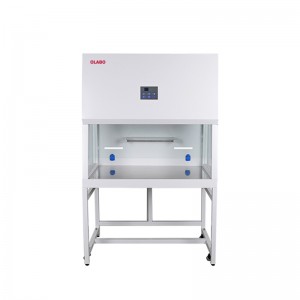

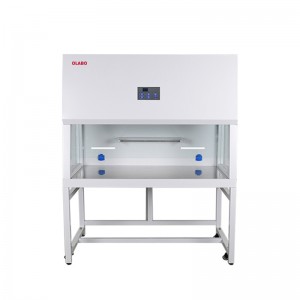

CE Certified PCR Cabinet PCR workstation
Parameter
| Model | PCR-800 | PCR-1000 | PCR-1200 | PCR-1300 | PCR-1500 |
| External Size (W*D*H) | 800*700*1770mm | 1000*705*1770mm | 1200*700*1770mm | 1300*700*1770mm | 1500*700*1770mm |
| Internal Size (W*D*H) | 700*595*550mm | 900*595*560mm | 1100*595*550mm | 1200*595*550mm | 1400*595*550mm |
| Work Surface Height | 750mm | ||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Work Table: 304 stainless steel | |||||
| Front & Side Windows | 5mm toughened glass, anti-UV | ||||
| Motorized | Manual | Motorized | |||
| Max Opening | 300mm | 320mm | 300mm | ||
| Pre-Filter | Polyester fiber, Washable | ||||
| HEPA Filter | 99.999% efficiency at 0.3μm. | ||||
| Airflow Velocity | 0.3-0.5m/s, speed adjustable | ||||
| Noise | ≤65dB | ||||
| UV Lamp | 20W*1 | 20W*2 | 30W*1 | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers, with UV timer | |||||
| LED Lamp | 8W*2 | 12W*2 | |||
| Illumination | ≥350lx | ||||

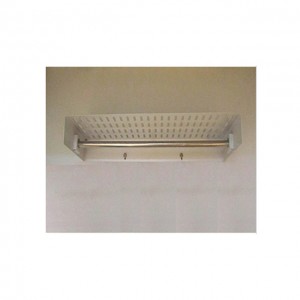

| Shelf with IV bar | Stainless steel, 502*150*50mm (W*D*H) | ||||
| Caster | Universal caster with leveling feet | ||||
| Consumption | 400W | 300W | 600W | ||
| Waterproof Socket | Two, total load≤500W | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Standard Accessory | UV lamp;Fluorescent lamp;
Base stand; Waterproof socket*2; Shelf with IV bar. |
||||
| Gross Weight | 168kg | 178kg | 220kg | 231kg | 250kg |
| Package Size (W*D*H) | 960*940*1450mm | 1150*930*1450mm | 1350*930*1450mm | 1450*930*1450mm | 1650*930*1450mm |

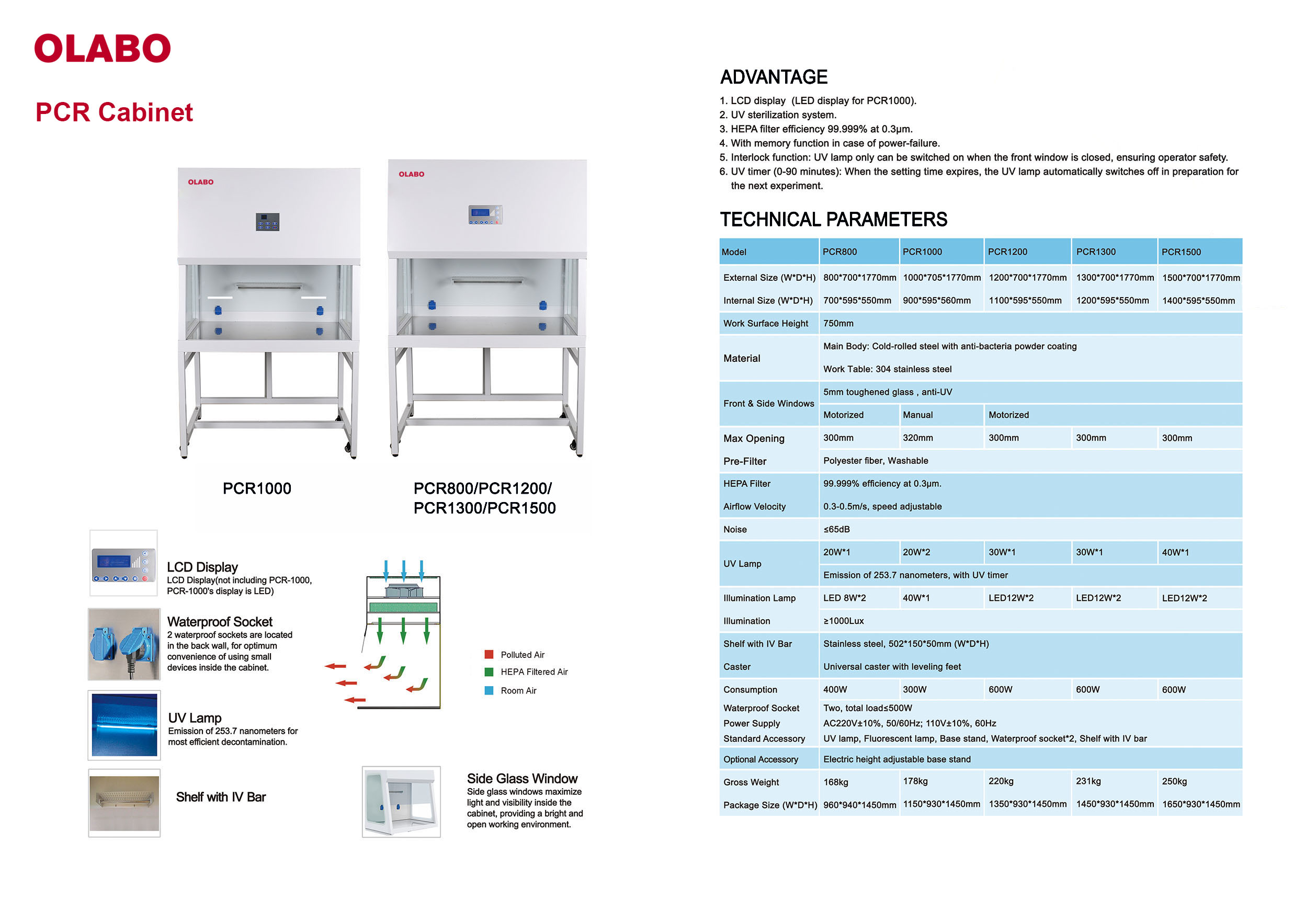

Advantage
1. LCD display(LED display for PCR1000).
2. UV sterilization system.
3. HEPA filter efficiency 99.999% at 0.3μm.
4. With memory function in case of power-failure.
4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
5. UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation
for the next experiment.
