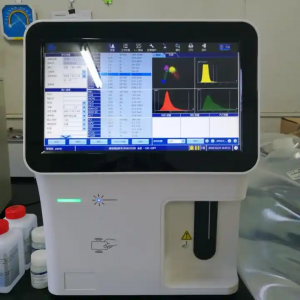

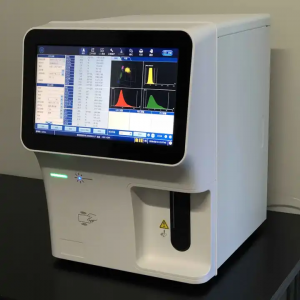

OLABO 5 Part Cbc Auto Hematology Analyzer Machine Blood Fully Automatic BK-6310
This 5-part auto hematology analyzer is applicable for detecting the parameters of WBC, RBC, PLT, HGB, etc. (see Section 3.2. Parameters for details) in anticoagulated venous whole blood or capillary blood, as well as WBC 5-part differential analysis and WBC counting.

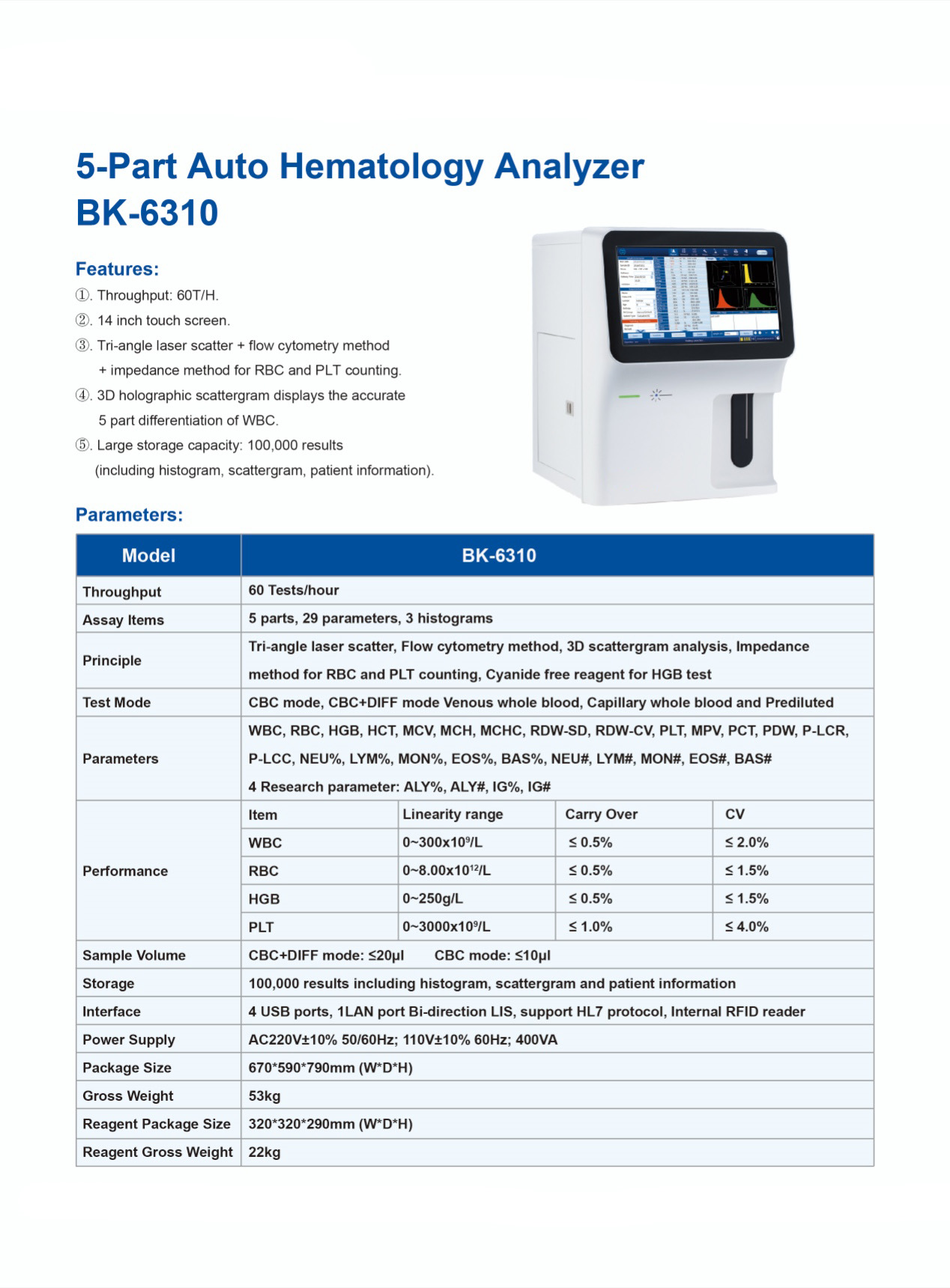

| Model | BK-6310 | |||
| Throughput | 60Tests/hour | |||
| Assay Items | 5 parts, 29parameters,3 histograms, 3Dscattergram | |||
| Principle | Tri-angle laser scatter,Flow cytometrymethod, 3D scattergram analysis, Impedancemethodfor RBC and PLT counting, Cyanide-free method for HGB test | |||
| Test Mode | CBC mode,CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted. | |||
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT,PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%,BAS%,NEU#, LYM#, MON#, EOS#, BAS#4 Research parameter: ALY%, ALY#, IG%, IG# | |||
| Performance | Item | Linearity range | Carry Over | CV |
| WBC | (0~300.0x10^9)/L | ≤0.5% | ≤2.0% | |
| RBC | (0~8.00x10^12)/L | ≤0.5% | ≤1.5% | |
| HGB | (0~250)g/L | ≤0.5% | ≤1.5% | |
| PLT | (0~3000x10^9)/L | ≤1.0% | ≤4.0% | |
| Sample Volume | CBC+DIFF mode≤20μl CBC mode≤10μl | |||
| Storage | 10,000 resultsincludinghistograms,scattergrams and patient information | |||
| Interface | 4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol,Internal RFID reader | |||
| Power Supply | AC220V±10% 50/60Hz; 110V±10% 60Hz; 400VA | |||
| Package Size | 670*590*790mm(W*D*H) | |||
| Gross Weight | 53kg | |||
| Reagent Package Size | 330*330*330mm , 400*290*240mm , 400*290*240mm | |||
| Reagent Gross Weight | 22kg, 2kg, 1kg | |||
