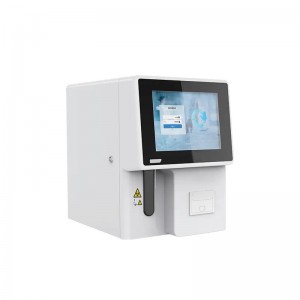

Auto Hematology Analyzer BK-3100VET
Application:
The Hematology Analyzer candetect abnormalitiesof healthy animals, assess sick animals and monitor sick animals undergoing treatment byperforming routine blood tests.It is suitable for animal experiment center, drug research center, animal and plant quarantine department, zoo,pet hospital, animal husbandry and veterinary system and other institutions.
Features:
1.Detection many animal species, with upgrade function
2.Three (rabbit, dog and cat) animal detection modes
3.Eosinophilic granulocyte detection function (dog, cat)
4.Automatic detection, eliminating manual error
5.Abnormal results intuitive prompt, timely and accurate screening out abnormal experimental results
6.Three detection modes: venous blood, peripheral blood, pre-diluted peripheral blood
7.9.7-inch color touch screen, data status at a glance
8.One button for maintenance
9.It can be turned on continuously for 24 hours
10.Applying cyanide-free hemolytic agent to sample, safe and environmental protection without stimulation
11.Automatic system diagnosis and maintenance, with a variety of alarm functions
12.Fully enclosed reagent line, no contamination
13.Excellent data management and communication function, automatically store 100,000 results
14.Supporting online remote diagnosis and quality control
The BK-3100VET Hematology Analyzer has three detection modes of venous blood, peripheral blood and pre-diluted peripheral blood,including21 detection parameters:
MID# GRAN# LYM% RBC MCV MCHC RDW-CV MPV PCT
P-LCC WBC LYM# MID% GRAN% HGB HCT MCH RDW-SD PLT PDW P-LCR
Technical Parameters:
| Model | BK-3100VET | |||||||||||
| Throughput | 50 samples/hour, | |||||||||||
| Principle | Impedance for WBC differentiation,WBC/RBC/PLTcount, Colorimetricmethod for HGB | |||||||||||
| Channel | 2 | |||||||||||
| Parameters | 21 parameters (includingMID#, GRAN#, LYM%, RBC, MCV, MCHC, RDW-CV, MPV, PCT, P-LCC, WBC, LYM#, MID%, GRAN%, HGB, HCT, MCH, RDW-SD, PLT, PDW, P-LCR) | |||||||||||
| Histograms | 3 histograms (includingWBC,RBC,PLT) | |||||||||||
| Sample Volume | Whole blood:10μl; Pre-diluted: 20μl | |||||||||||
| Calibration | Manual calibration, automatic calibration, and fresh blood calibration | |||||||||||
| Counting Mode | Venous blood, peripheral blood, pre-diluted blood | |||||||||||
| Printing Model | Auto print, manual print | |||||||||||
| LIS System | Supporting Bi-directional LIS | |||||||||||
| Language | Chinese, English, Spanish, French, Russian, Ukrainian, Portuguese, and Indonesian | |||||||||||
| QC | L-J、X-B | |||||||||||
| Reagent | Diluent 20L, Hemolytic agent 500ml (animal specific), Probe cleaner 50ml | |||||||||||
| Date Input | 9.7-inch touch screen; mouse, keyboard (optional) | |||||||||||
| Output | Built-in printer, supporting external printers | |||||||||||
| Printer Paper | 57×30mm | |||||||||||
| Interface | 4 USB ports, 1 network port, and 1 RS232 serial port | |||||||||||
| Storage | Automatic storage, 100,000 results with histograms (including sample information) | |||||||||||
| InformationTransmission | Bidirectional LIS communication, HL7 and many other transmission protocols | |||||||||||
| Unclog | Reverse high-pressure flush | |||||||||||
| Work Temp. | -10~40°C | |||||||||||
| Power Supply | AC100～240V, 50/60Hz | |||||||||||
| Relative Humidity | 30﹪～85﹪ | |||||||||||
| Atmospheric Pressure | 70.0kPa~110.0kPa | |||||||||||
| Carry-Over Rate | Parameter | WBC | RBC | HGB | PLT | |||||||
| CV | ≤ 1.5% | ≤ 1.0% | ≤ 1.0% | ≤ 3.0% | ||||||||
| Background | WBC | RBC | HGB | PLT | ||||||||
| ≤ 0.5×109/L | ≤ 0.05×1012/L | ≤ 2 g/L | ≤ 10×109/L | |||||||||
| Linearity | Parameter | Measurement Range | CV | |||||||||
| WBC | (1～10.00×109)/L (10.10-99.9×109)/L |
(±0.5×109)/L ±5% | ||||||||||
| RBC | (0.3～1.00×1012)/L (1.01-7.00×1012)/L |
(±0.5×1012)/L ±5% | ||||||||||
| HGB | (20~70g)/L (71~200.0g)/L |
(±2.0g)/L ±3% | ||||||||||
| PLT | (20~100×109)/L 101~999×109)/L |
(±10.0×109)/L ±10% | ||||||||||
| Precision | Parameter | Whole Blood(CV) | Pre-diluted(CV) | Measurement Range | ||||||||
| WBC | ≤ 2.0% | ≤ 4.0% | (3.5-9.5)×109/L | |||||||||
| RBC | ≤ 1.6% | ≤ 3.0% | (3.8-5.80×1012/L | |||||||||
| HGB | ≤ 1.6% | ≤ 3.0% | (115.0-175.0g)/L | |||||||||
| HCT | ≤ 10.0% | ≤ 12.0% | 35%~50% | |||||||||
| PLT | ≤ 4.0% | ≤8.0% | (125.0-350.0)×109/L | |||||||||
| ExternalSize | (L*W*H)295*467*418mm | |||||||||||
| Package Size | (L*W*H)404*564*616mm | |||||||||||
| Net Weight | 19kg | |||||||||||
| Gross Weight | 31kg | |||||||||||
