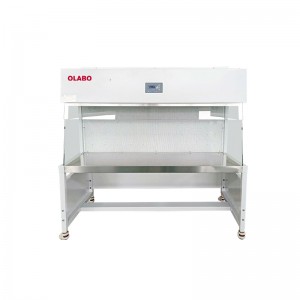

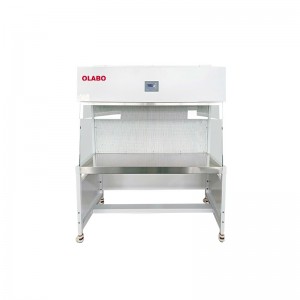

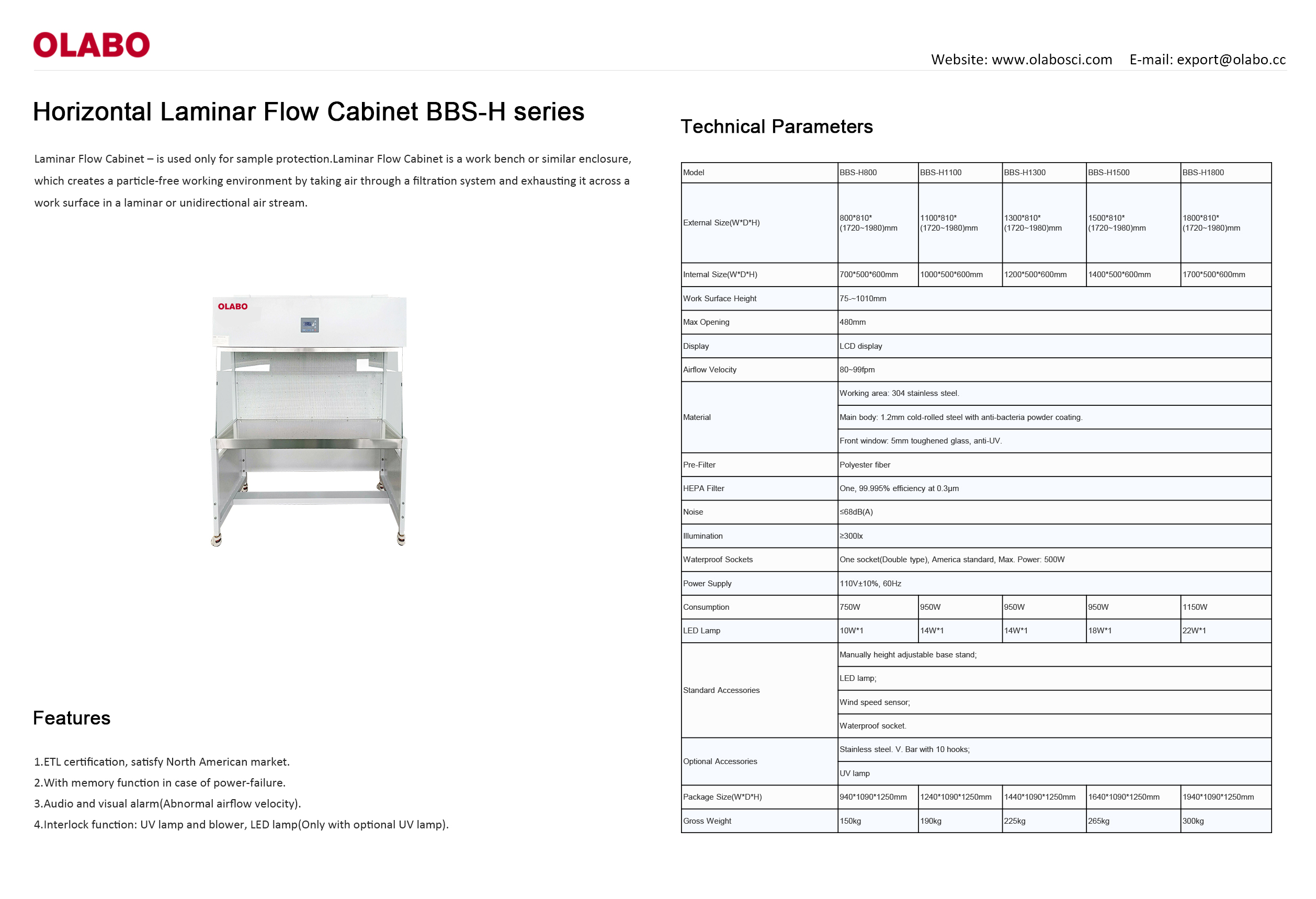

ETL Certified Horizontal Laminar Flow Cabinet BBS-H800,1100,1300,1500
Advantages:
- ETL certification, satisfy North American market.
- With memory function in case of power-failure.
- Audio and visual alarm(Abnormal airflow velocity).
- Interlock function: UV lamp and blower, LED lamp(Only with optional UV lamp).
Models:
| Model | BBS-H800 | BBS-H1100 | BBS-H1300 | BBS-H1500 | BBS-H1800 |
| External Size(W*D*H) | 800*810*(1720~1980)mm | 1100*810*(1720~1980)mm | 1300*810*(1720~1980)mm | 1500*810*(1720~1980)mm | 1800*810*(1720~1980)mm |
| Internal Size(W*D*H) | 700*500*600mm | 1000*500*600mm | 1200*500*600mm | 1400*500*600mm | 1700*500*600mm |
| Work Surface Height | 75-~1010mm | ||||
| Max Opening | 480mm | ||||
| Display | LCD display | ||||
| Airflow Velocity | 80~99fpm | ||||
| Material | Working area: 304 stainless steel.
Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating. Front window: 5mm toughened glass, anti-UV. |
||||
| Pre-Filter | Polyester fiber | ||||
| HEPA Filter | One, 99.995% efficiency at 0.3μm | ||||
| Noise | ≤68dB(A) | ||||
| Illumination | ≥300lx | ||||
| Waterproof Sockets | One socket(Double type), America standard, Max. Power: 500W | ||||
| Power Supply | 110V±10%, 60Hz
|
||||
| Consumption | 750W | 950W | 950W | 950W | 1150W |
| LED Lamp | 10W*1 | 14W*1 | 14W*1 | 18W*1 | 22W*1 |
| Standard Accessories | Manually height adjustable base stand;
LED lamp; Wind speed sensor; Waterproof socket. |
||||
| Optional Accessories | Stainless steel. V. Bar with 10 hooks;
UV lamp |
||||
| Package Size(W*D*H) | 940*1090*1250mm | 1240*1090*1250mm | 1440*1090*1250mm | 1640*1090*1250mm | 1940*1090*1250mm |
| Gross Weight | 150kg | 190kg | 225kg | 265kg | 300kg |
