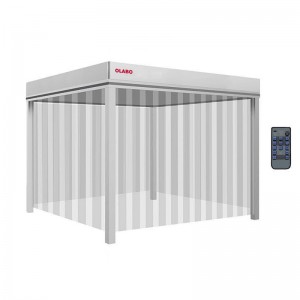

OLABO Clean Booth BKCB-1500 For Lab Clean Booth

Short Description:


Product Detail

Product Tags

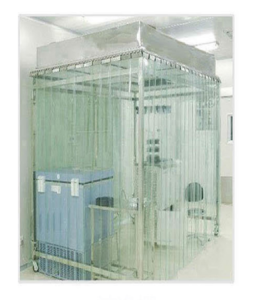

Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost
and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement (Universal wheel can be installed).
Specification
Model
BKCB-1500
BKCB-2000
BKCB-3000
BKCB-5000
External Size (W*D*H)
2000*1500*2530mm
3000*2000*2530mm
4000*3000*2530mm
5000*5000*2530mm
Internal Size(W*D*H)
1920*1380*2140mm
2920*1880*2115mm
3880*2880*2095mm
4880*4880*2095mm
HEPA Filters
99.999% efficiency at 0.3 μm
Consumption
800W
1500W
2800W
5000W
FFU Nos.
4pcs
6pcs
12pcs
25pcs
Clean Level
Class 100, Class A
Control System
Microprocessor control system
Rectangular Tube Material
Aluminium alloy
Wall Material
Anti-static dust-proof curtain
Blower
Built-in centrifugal blower; Speed adjustable
UV Lamp
40W
40W*2
40W*3
40W*5
Emission of 253.7nanometers, with UV timer
Illuminating Lamp
16W*1
16W*2
16W*3
16W*5
LED Lamp,Illumination :≥500lux
Air Velocity
0.1~0.6m/s, average 0.45m/s
Noise
≤75db
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight
390Kg
670Kg
1100Kg
2900Kg
Net Weight
355kg
625kg
1020kg
2800kg
Package Size (W*D*H)
2110*930*920mm
2280*660*500mm
3080*980*1280mm
3080*660*550mm
3080*980*1280mm*2
4080*660*550mm
4080*980*1280mm*3
1260*660*1280mm
5080*460*500mm
