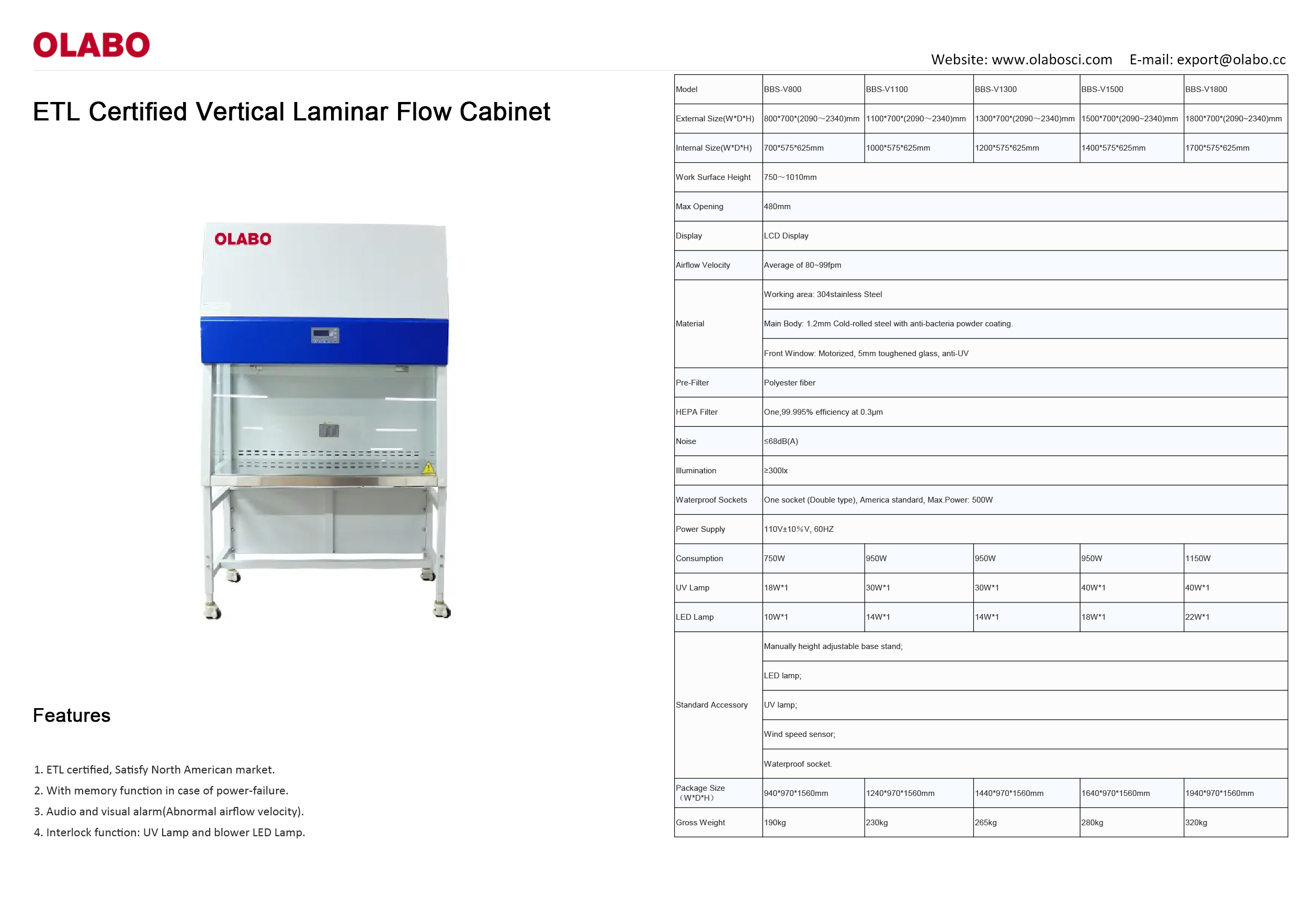

ETL Certified Vertical Laminar Flow Cabinet
Advantage：
1. ETL certified, Satisfy North American market.
2. With memory function in case of power-failure.
3. Audio and visual alarm(Abnormal airflow velocity).
4. Interlock function: UV Lamp and blower LED Lamp.
Models:
| Model | BBS-V800 | BBS-V1100 | BBS-V1300 | BBS-V1500 | BBS-V1800 |
| External Size(W*D*H) | 800*700*(2090～2340)mm | 1100*700*(2090～2340)mm | 1300*700*(2090～2340)mm | 1500*700*(2090~2340)mm | 1800*700*(2090~2340)mm |
| Internal Size(W*D*H) | 700*575*625mm | 1000*575*625mm | 1200*575*625mm | 1400*575*625mm | 1700*575*625mm |
| Work Surface Height | 750～1010mm | ||||
| Max Opening | 480mm | ||||
| Display | LCD Display | ||||
| Airflow Velocity | Average of 80~99fpm | ||||
| Material | Working area: 304stainless Steel | ||||
| Main Body: 1.2mm Cold-rolled steel with anti-bacteria powder coating. | |||||
| Front Window: Motorized, 5mm toughened glass, anti-UV | |||||
| Pre-Filter | Polyester fiber | ||||
| HEPA Filter | One,99.995% efficiency at 0.3μm | ||||
| Noise | ≤68dB(A) | ||||
| Illumination | ≥300lx | ||||
| Waterproof Sockets | One socket (Double type), America standard, Max.Power: 500W | ||||
| Power Supply | 110V±10％V, 60HZ | ||||
| Consumption | 750W | 950W | 950W | 950W | 1150W |
| UV Lamp | 18W*1 | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| LED Lamp | 10W*1 | 14W*1 | 14W*1 | 18W*1 | 22W*1 |
| Standard Accessory | Manually height adjustable base stand;
LED lamp; UV lamp; Wind speed sensor; Waterproof socket. |
||||
| Package Size （W*D*H） | 940*970*1560mm | 1240*970*1560mm | 1440*970*1560mm | 1640*970*1560mm | 1940*970*1560mm |
| Gross Weight | 190kg | 230kg | 265kg | 280kg | 320kg |
