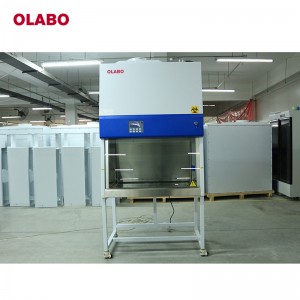

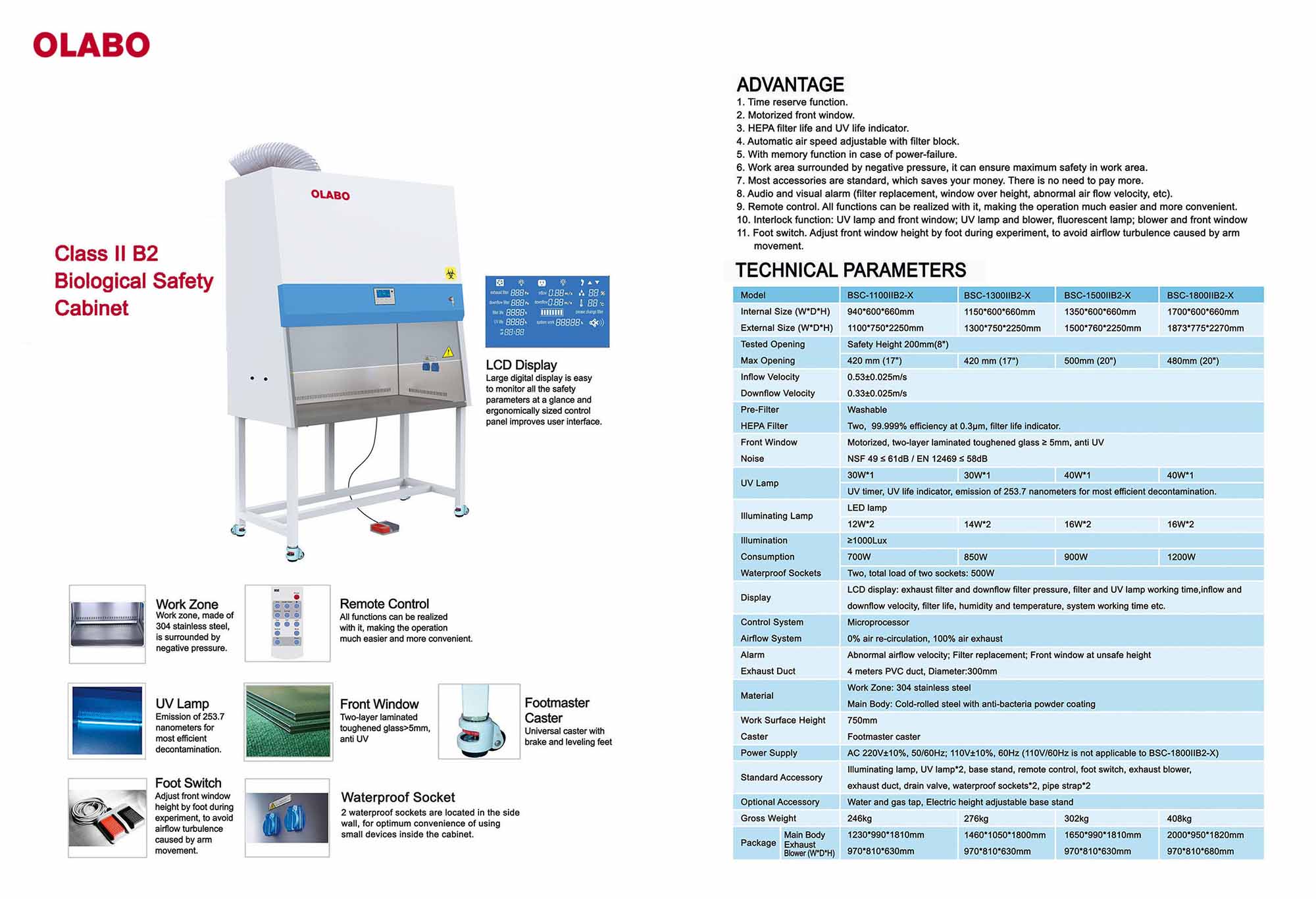

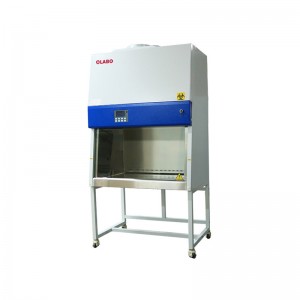

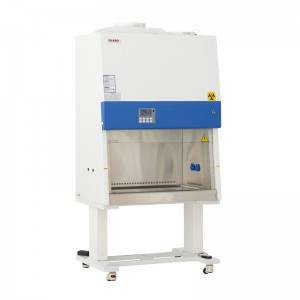

Class II B2 Biological Safety Cabinet
Parameter
| Model |
BSC-1100IIB2-X | BSC-1300IIB2-X | BSC-1500IIB2-X | BSC-1800IIB2-X | |
| Internal Size(W*D*H) | 940*600*660 mm | 1150*600*660 mm | 1350*600*660mm | 1700*600*660 mm | |
| External Size(W*D*H) | 1100*750*2250mm | 1300*750*2250mm | 1500*760*2250mm | 1873*775*2270mm | |
| Tested Opening | Safety Height 200 mm（8’’) | ||||
| Max Opening | 420mm(17’’) | 420mm(17’’) | 500mm(20’’) | 480mm(20’’) | |
| Inflow Velocity | 0.53±0.025 m/s | ||||
| Down flow Velocity | 0.33±0.025 m/s | ||||
| Pre-Filter | Washable | ||||
| ULPA Filter | Two, 99.9995% efficiency at 0.12 μm,filter life indicator. | ||||
| Front Window | Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV. | ||||
| Noise | NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB | ||||
| UV Lamp |
30W*1 | 30W* 1 | 40W* 1 | 40W*1 | |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |
|||||
| Illuminating Lamp |
LED Lamp | LED Lamp | LED Lamp | LED Lamp | |
| 12W*2 | 14W*2 | 16W*2 | 16W*2 | ||
| Illumination | ≥1000Lux | ||||
| Consumption | 700W | 850W | 900W | 1200W | |

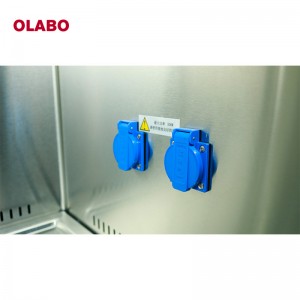

| Waterproof Sockets | Two, total load of two sockets: 500W | ||||
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | ||||
| Control System | Microprocessor | ||||
| Airflow System | 0% air recirculation, 100% air exhaust | ||||
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | ||||
| Exhaust Duct | 4 meters PVC duct, Diameter:300mm | ||||
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating. |
||||
| Work Surface Height | 750mm | ||||
| Caster | Foot master caster | ||||
| Power Supply | AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X) | ||||
| Standard Accessory | Illuminating lamp, UV lamp*2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2 |
||||

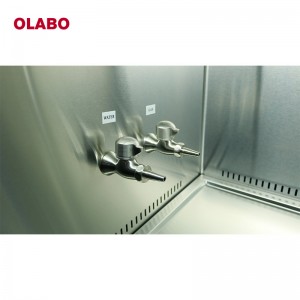

| Optional Accessory | Water and gas tap, Electric height adjustable base stand | ||||
| Gross Weight | 246kg | 276kg | 302kg | 408kg | |
| Package | Main Body | 1230* 990* 1810 mm | 1460*1050*1800 mm | 1650*990*1810 mm | 2020*1080*1900 mm |
| Exhaust Blower (W*D*H) | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 680 mm | |
Three protection: operator, sample and environment.
Airflow system: 0 % air recirculation, 100% air exhaust
A Class II B2 BSC, also called a total exhaust cabinet, is necessary when significant amounts of radionuclides and volatile chemicals are expected to be used.
Advantage
- Time reserve function.
- Motorized front window.
- ULPA filter life and UV life indicator.
- Automatic air speed adjustable with filter block.
- With memory function in case of power-failure.
- Work area surrounded by negative pressure, it can ensure maximum safety in work area.
- Most accessories are standard, which saves your money. There is no need to pay more.
- Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
- Remote control. All functions can be realized with it, making the operation much easier and more convenient.
- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
- Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
