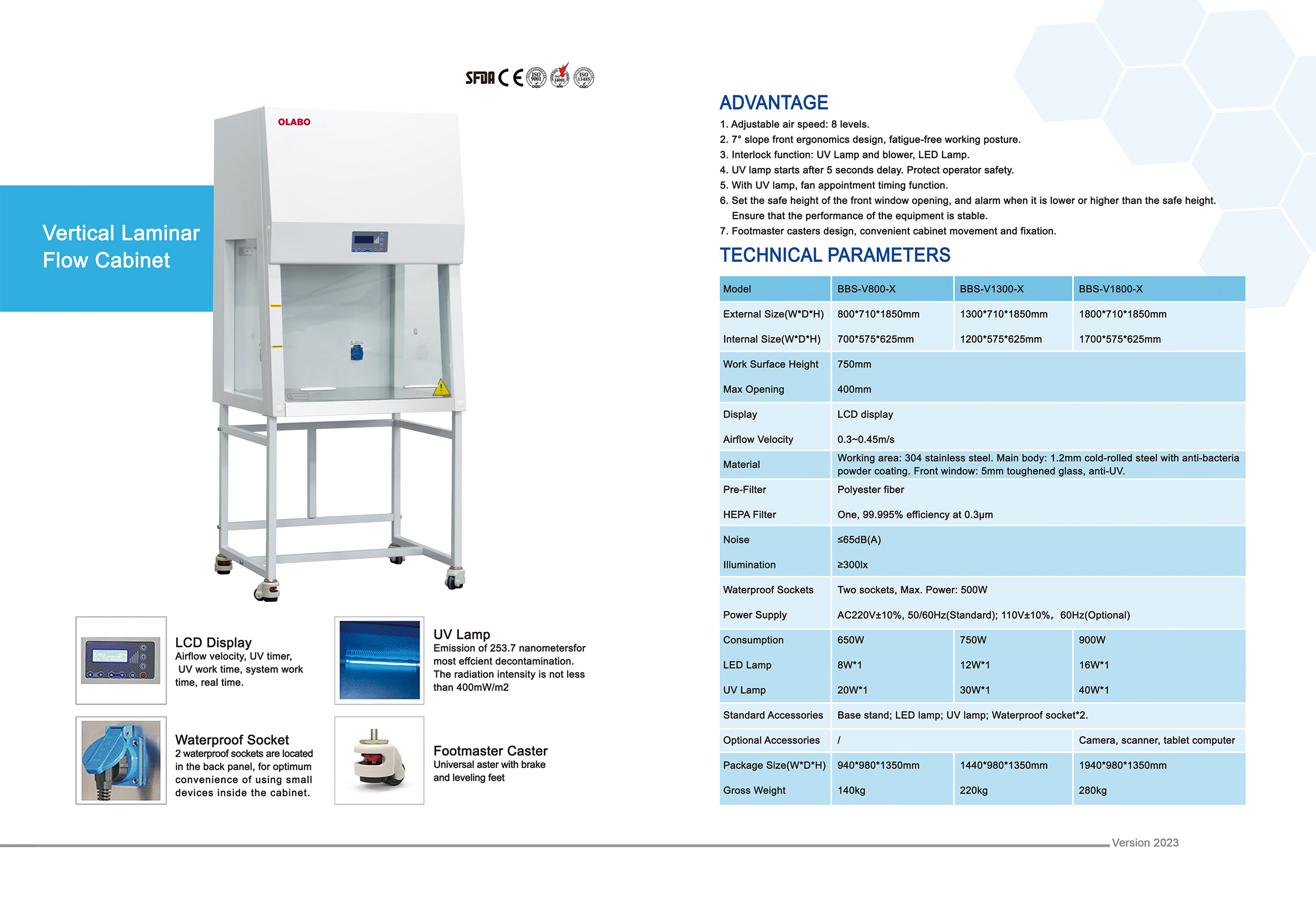

Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X
Advantage:
1. Adjustable air speed: 8 levels.
2. 7° slope front ergonomics design, fatigue-free working posture.
3. Interlock function: UV Lamp and blower, LED Lamp.
4. UV lamp starts after 5 seconds delay. Protect operator safety
5, With UV lamp, fan appointment timing function.
6. Set the safe height of the front window opening, and alarm when it is lower or higher than the safe height. Ensure that the performance of the equipment is stable.
7, Footmaster casters design, convenient cabinet movement and fixation
Model
| Model | BBS-V800-X | BBS-V1300-X | BBS-V1800-X |
| External Size(W*D*H) | 800*710*1850mm | 1300*710*1850mm | 1800*710*1850mm |
| Internal Size(W*D*H) | 700*575*625mm | 1200*575*625mm | 1700*575*625mm |
| Work Surface Height | 750mm | ||
| Max Opening | 400mm | ||
| Display | LCD display | ||
| Airflow Velocity | 0.3~0.45m/s | ||
| Material | Working area: 304 stainless steel. Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating. Front window: 5mm toughened glass, anti-UV. | ||
| Pre-Filter | Polyester fiber | ||
| HEPA Filter | One, 99.995% efficiency at 0.3μm | ||
| Noise | ≤65dB(A) | ||
| Illumination | ≥300lx | ||
| Waterproof Sockets | Two sockets, Max. Power: 500W | ||
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%，60Hz(Optional) | ||
| Consumption | 650W | 750W | 900W |
| LED Lamp | 8W*1 | 12W*1 | 16W*1 |
| UV Lamp | 20W*1 | 30W*1 | 40W*1 |
| Standard Accessories | Base stand; LED lamp; UV lamp; Waterproof socket*2. | ||
| Optional Accessories | / | Camera, scanner, tablet computer | |
| Package Size(W*D*H) | 940*980*1350mm | 1440*980*1350mm | 1940*980*1350mm |
| Gross Weight | 140kg | 220kg | 280kg |
