OLABO Pass Box

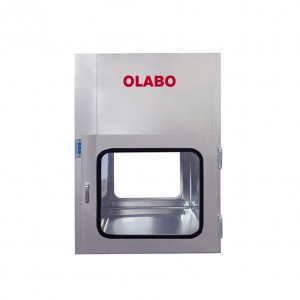

OLABO Laminar Air Flow Pass Box For Clean Room

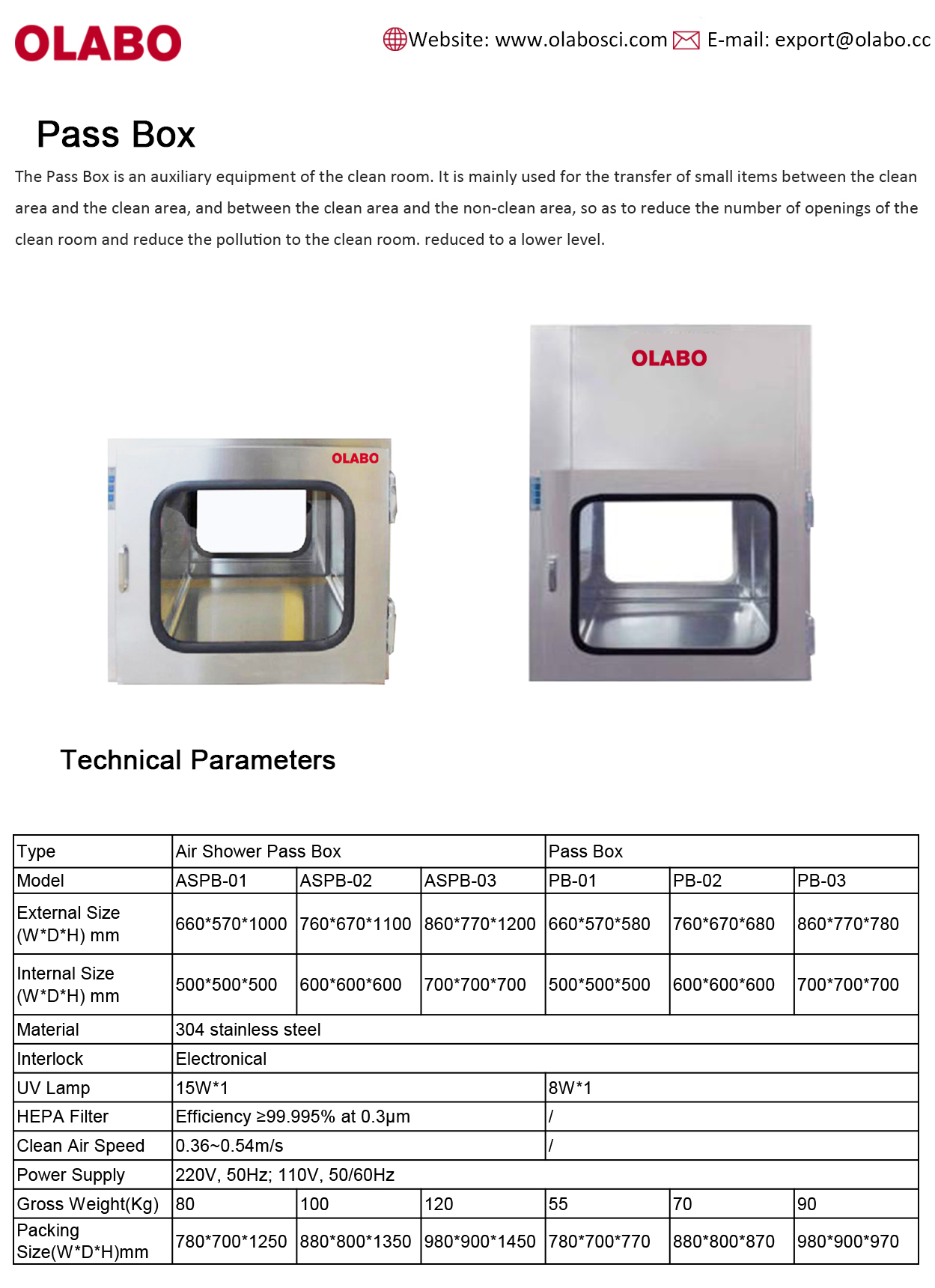

Pass box is used to transfer goods between rooms of different clean levels of clean room.It can reduce times of opening door, prevent the air convection between different rooms and minimize the pollution extent.
Models:
| Type | Air Shower Pass Box | Pass Box | ||||
| Model | ASPB-01 | ASPB-02 | ASPB-03 | PB-01 | PB-02 | PB-03 |
| External Size (W*D*H) mm |
660*570*1000 | 760*670*1100 | 860*770*1200 | 660*570*580 | 760*670*680 | 860*770*780 |
| Internal Size (W*D*H) mm |
500*500*500 | 600*600*600 | 700*700*700 | 500*500*500 | 600*600*600 | 700*700*700 |
| Material | 304 stainless steel | |||||
| Interlock | Electronical | |||||
| UV Lamp | 15W*1 | 8W*1 | ||||
| HEPA Filter | Efficiency ≥99.995% at 0.3μm | / | ||||
| Clean Air Speed | 0.36~0.54m/s | / | ||||
| Power Supply | 220V, 50Hz; 110V, 50/60Hz | |||||
| Gross Weight(Kg) | 80 | 100 | 120 | 55 | 70 | 90 |
| Packing Size(W*D*H)mm | 780*700*1250 | 880*800*1350 | 980*900*1450 | 780*700*770 | 880*800*870 | 980*900*970 |
