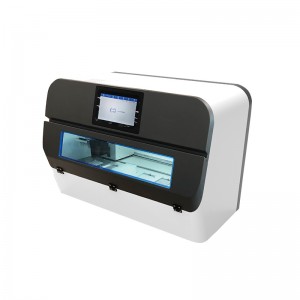

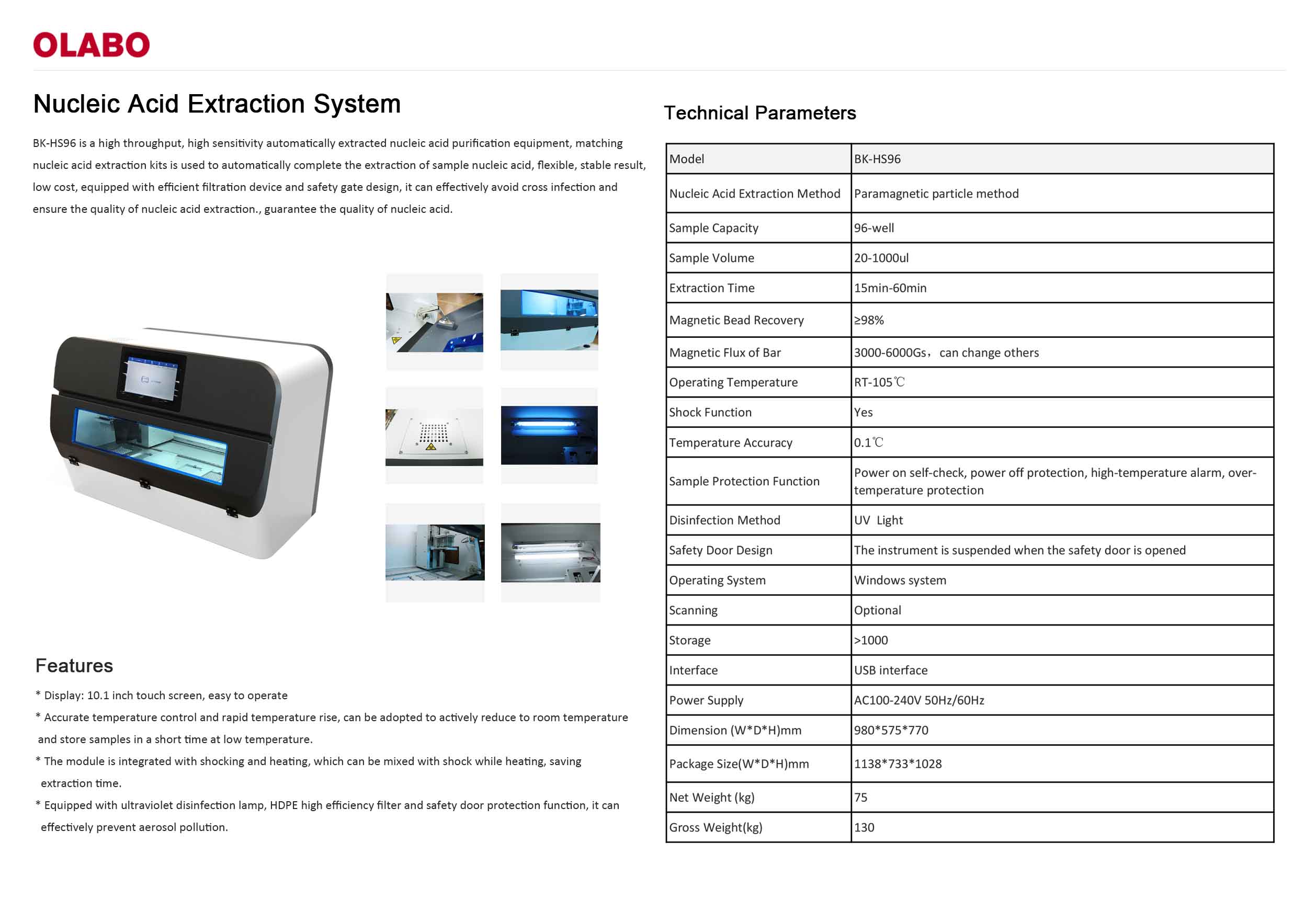

OLABO Automatic Nucleic Acid Extraction System BK-HS96

Short Description:

BK-HS96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.

Product Detail


Product Tags


Model BK-HS96
Nucleic Acid Extraction Method Paramagnetic particle method
Sample Capacity 96-well
Sample Volume 20-1000ul
Extraction Time 15min-60min
Magnetic Bead Recovery ≥98%
Magnetic Flux of Bar 3000-6000Gs,can change others
Operating Temperature RT-105℃
Shock Function Yes
Temperature Accuracy 0.1℃
Sample Protection Function Power on self-check, power off protection, high-temperature alarm, over-temperature protection
Disinfection Method UV  Light

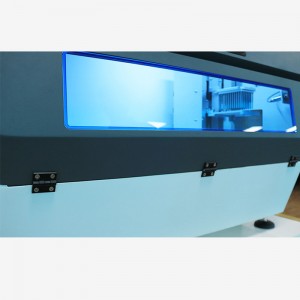

Safety Door Design The instrument is suspended when the safety door is opened
Operating System Windows system
Scanning Optional
Storage >1000
Interface USB interface
Power Supply AC100-240V 50Hz/60Hz
Dimension (W*D*H)mm 980*575*770
Package Size(W*D*H)mm 1138*733*1028
Net Weight (kg) 75
Gross Weight(kg) 130


*Display: 10.1 inch touch screen, easy to operate

*Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature

and store samples in a short time at low temperature.

*The module is integrated with shocking and heating, which can be mixed with shock while heating, saving

extraction time.

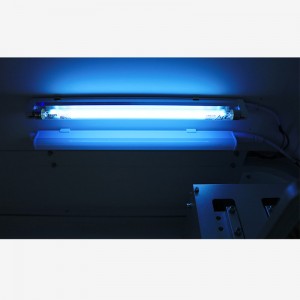

*Equipped with ultraviolet disinfection lamp, HDPE high efficiency filter and safety door protection function, it can

effectively prevent aerosol pollution.
