BNP Series Nucleic Acid Extractor

Short Description:

The nucleic acid extractor is a high-tech product that uses the universal magnetic bead method to extract nucleic acids, and has an automated process.
It has the advantages of high accuracy, fast extraction speed, stable results, and easy operation. Using a dedicated 96-well deep-well plate, 1-32 samples can be operated at the same time.

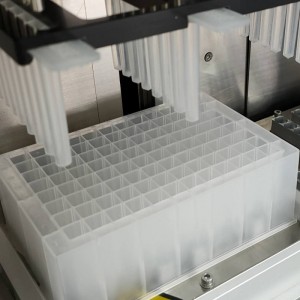

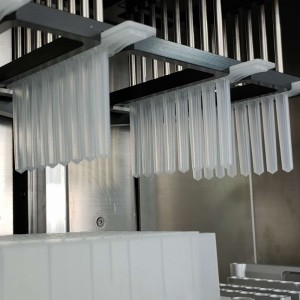

Use the magnetic rod on the magnetic rod rack of the experimental cabin to move the magnetic beads with nucleic acid to different
In the reagent well, a stirring sleeve sheathed on the outer layer of the magnetic rod is used to repeatedly and quickly stir the liquid to make the liquid and the magnetic beads uniformly mixed. After cell lysis, nucleic acid adsorption, washing and elution, high-purity nucleic acid is finally obtained.

Send email to us Download as PDF

Product Detail

Brochure

Product Tags

Parameter

Model	BNP32	BNP48
Sample Quantity	32	48
Processing Volume	20μL-1000μL
Sample Volume	20-500μL
Sample Throughput	1-32
Magnetic Bead Recovery	>98%
Extracting the Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing	Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type	Magnetic bead open platform
Extraction Time	10-40 min/round (depending on the reagent used)
Internal Program	Be able to store >100 groups of programs
Program Management	Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design	After the safety door is opened,the program operation will be automatically suspended, and the program can continue to run after the safety door closed
Built-in Air Duct	No	Yes
Ultraviolet Irradiation	Yes
Packing Size(WDH)mm	580510700	700520750
GrossWeight(kg)	51	80
