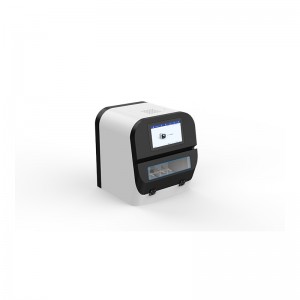

OLABO Nucleic Acid Extraction System/DNA RNA BK-HS32

Short Description:

BK-HS32 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.

Product Detail


Product Tags

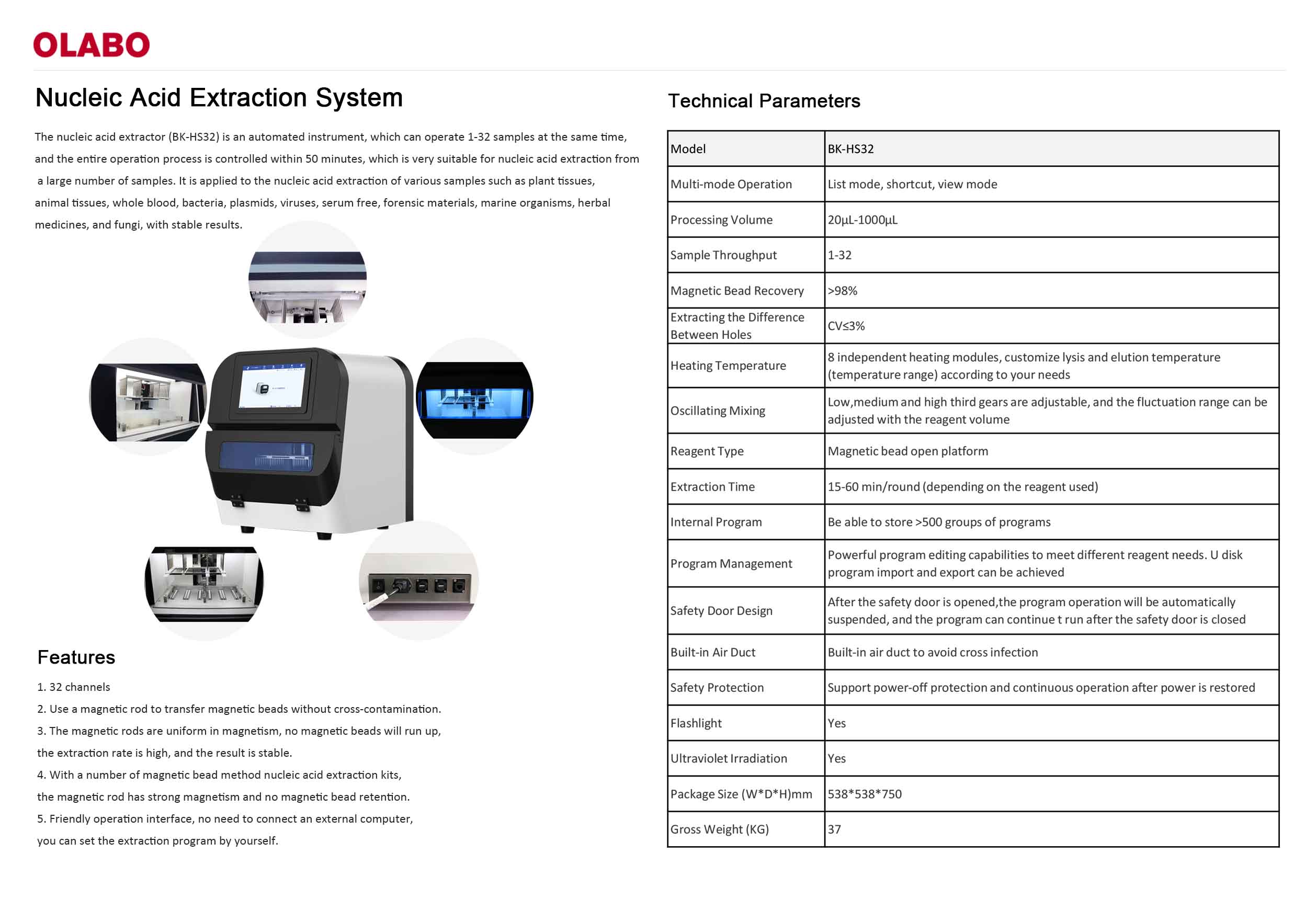

Model BK-HS32
Multi-mode Operation List mode, shortcut, view mode
Processing Volume 20µL-1000µL
Sample Throughput 1-32
Magnetic Bead Recovery >98%
Extracting the Difference Between Holes CV≤3%
Heating Temperature 8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type Magnetic bead open platform
Extraction Time 15-60 min/round (depending on the reagent used)
Internal Program Be able to store >500 groups of programs
Program Management Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door is closed
Built-in Air Duct Built-in air duct to avoid cross infection
Safety Protection Support power-off protection and continuous operation after power is restored
Flashlight Yes
Ultraviolet Irradiation Yes
Package Size (W*D*H)mm 538*538*750
Gross Weight (KG) 37


1. Friendly user interface: Smart & Intelligent display.

With 10.1 inch LCD touch screen, Windows operating system.

2. Zero Aerosol ContaminationHigh efficiency HEPA filter and Auto safety door protection function, safety door protection function, HEPA filter and UV lamp

replacement HEPA filter and UV lamp replacement alarm functions.

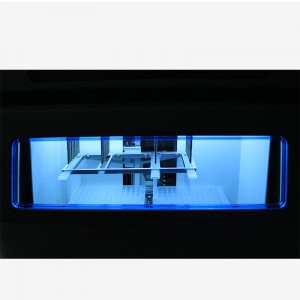

3. UV Sterilization Lamp

*With manual or set automatic opening timeUV lamp,

sterilizing the operation area easily and effectively.

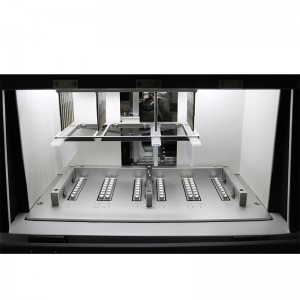

4. Integrated Shaking &Heating Module Mix deep wells while heating, saving extraction time.
