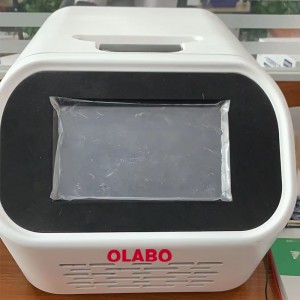

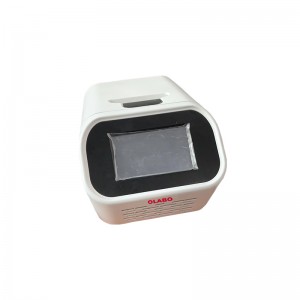

OLABO PCR Thermal Cycler
Parameter
| Model | TEC01 |
| Capacity | 96 |
| Reaction Volume | 10~200ul |
| Tube Type | 96×0.2mlPCR plate, 8×0.2ml PCR tube |
| Block Temperature Range | 4℃～105℃ |
| Heat Lid Temperature Range | 30℃～110℃, When the set temperature is lower than 30°, the Heat Lid will be closed automatically |
| Display Resolution | ±0.1℃ |
| Temperature Accuracy | ≤0.5℃ |
| Temperature Uniformity | ≤1℃ |
| Block Material | Aluminum |
| Gradient Range | 30～99℃ |
| Temperature Differential Range | 1～42℃ |
| Program | A single program can be up to 30 steps, 99 cycles |
| Display | 7” LCD |
| Power Supply | 110V~220V, 50/60Hz |
| External Size(L*W*H) | 398*280*257mm |
| Net Weight | 11kg |
| Package Size(L*W*H) | 495*380*380mm |
| Gross Weight | 17kg |
Features
1) Reliable performance of heating and cooling elements, high-performance temperature control system
2) High-performance digital signal processor for precise temperature control
3) Excellent temperature uniformity
4) Rapid heating and cooling
5) 7-inch color touch panel, easy to operate
6) Support large-capacity program storage

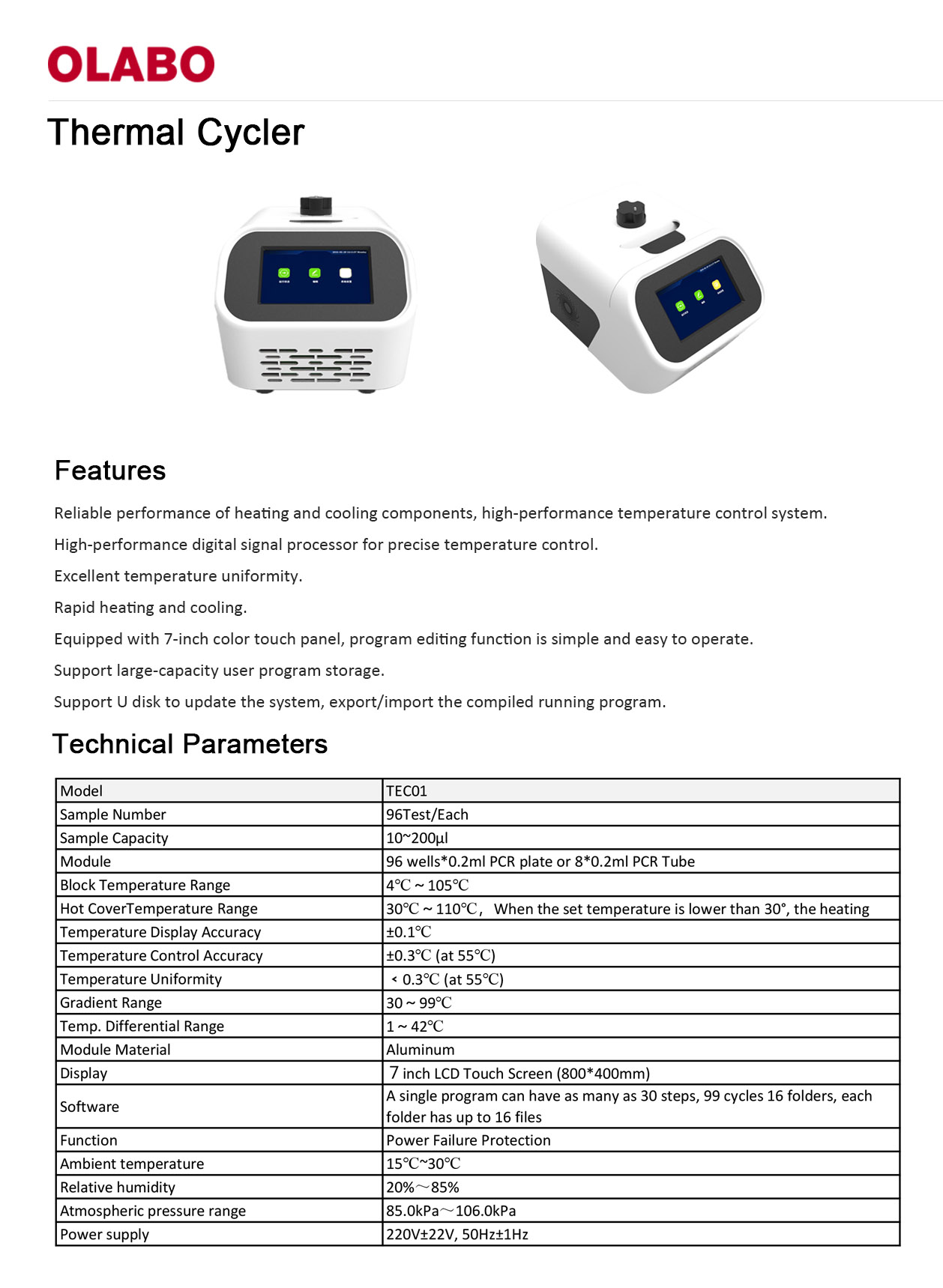

Download:OLABO Thermal Cycler
