OLABO Laboratory Horizontal/Vertical Electrophoresis Power Supply

Short Description:

The BG-Power300 can provide power for horizontal nucleic acid electrophoresis and small vertical electrophoresis systems. Electrophoresis can be run by constant voltage, current or power.
It can supply the required power for the BG-verMINI mini vertical electrophoresis system, BG-sub series horizontal electrophoresis system, BG-verBLOT mini vertical transfer tank and other company’s corresponding electrophoresis system.


Product Detail

Brochure

Product Tags

Parameter

Performance index Parameter
Feature Once set the constant value of any one of the voltage, current or power the other two are automatically matched
Output specifications voltage:5-300V DC

current:1-500mA

power: 1-150W

Programmed limits voltage:5-300V DC

current:10-500mA

power: 1-150W

Timer:  0-999min

Output Resolution voltage: 1V

current:1mA,40-500mA

power: 1W

Setting Resolution voltage: 1V

current:1mA

power: 1W

Timer: 1min,000-999min

Precision voltage: 4%,或±2V

current:4%,或±4mA

power: 2%,或±1W

Timer: <0.1%,±1min,0-999min

Linear adjustment rate <0.2%
Load adjustment rate <1%,Load change range(10-90%)
Ripple coefficient <2%,300V
Short-term stability <0.2%, 10 hours after starting up
Long-term stability <1%,after one year
No-load detection resistance ≤0.04MΩ
Ground leak protection current≤ 500µA
Safety features overload/short circuit protection, overvoltage detection, input line protection
Power-fail protection <8s,Automatic program recovery

≥8s,Manual program recovery

Operating temperature 4-40℃
Working Humidity 0-95%
Pressure bearing range 68-106KPa,Maximum altitude 2000m
Allowable Input Voltage AC100-120/200-240V;50/60Hz
Input power Max 200W
Dimensions (h × w × d) 308×242×100mm
Weight 3.5Kg

Advantage

*Automatic match function: Once set the constant value of any one of the voltage, current or power the other two are automatically matched. You needn’t set up all three parameters each time and won’t worry about miss set for the other two once set one constant;
*Micro-current state function:At the end of electrophoresis, the microcurrent state starts automatically. It can not only avoid the sample diffusion after the electrophoresis completed without anybody standby, but also prevent the sample from over running;
*Pause/resume function;
*Storage capacity for up to 12 user-defined methods.
*Alarming, automatic shutdown and power automatic recovery to continue the electrophoresis program function: avoid misoperation during experiment in case of blackouts;
*Safety features: overvoltage, arc, short circuit, rapid resistance change, no-load and overload monitoring and power leakage protection;
*Output terminals: 4 pair recessed banana jacks floating in parallel which can carry several electrophoresis tanks.


  • Previous:
  • Next:

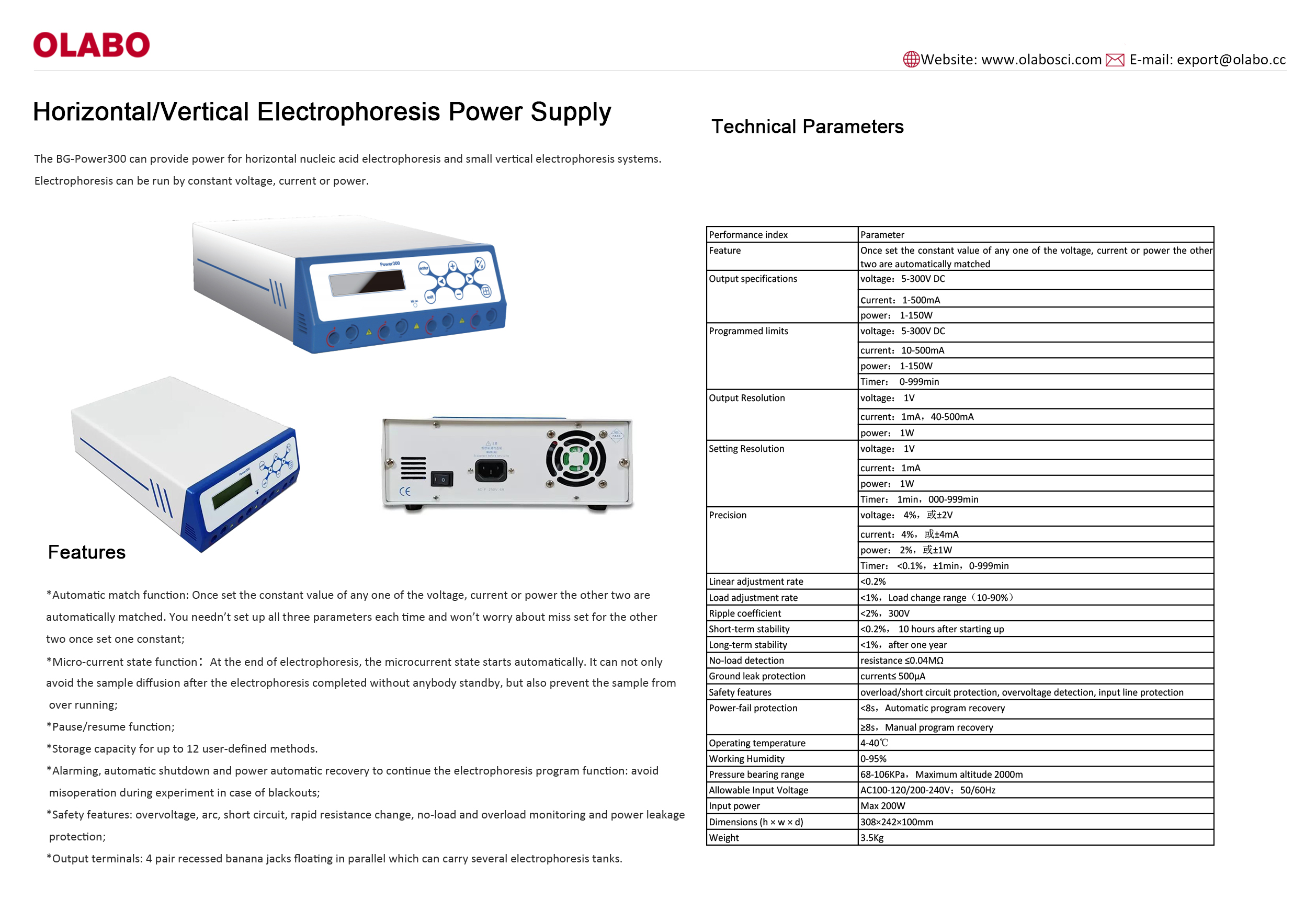

  • Download:OLABO Laboratory Horizontal/Vertical Electrophoresis Power Supply
