Water Purifier SCSJ-II-60/80/100L
Advantage
1. The machine is automatically controlled throughout the whole process, with one key to start, simple operation and reliable work.
2. After the power is turned on, the machine first enters the automatic perfusion process to empty the gas in the system to prevent the reverse osmosis membrane from being damaged by the air hammer phenomenon, and then automatically enters the water production process. This not only reduces the self-fouling of the reverse osmosis membrane, but also avoids the consumption and pollution of the post-stage resin caused by the low-quality effluent in the initial stage of the reverse osmosis membrane operation, prolongs the service life of the reverse osmosis membrane and the resin, saves consumables, and improves the effluent quality.
3. The machine also has low water pressure protection function.
4. It can effectively prevent the water machine from working in the state of low water pressure and water shortage in the source water, and has played a reliable protective role for the high-pressure pump head.
Parameter
| Product number | SCSJ-Ⅱ-60L | SCSJ-Ⅱ-80L | SCSJ-Ⅱ-100L |
| Water intake | Municipal tap water, the inlet water pressure is 0.1-0.4Mpa, the water temperature is 15-35℃, and the water quality meets the requirements of GB57492 | ||
| System flow | PF+AC+RO+DI | ||

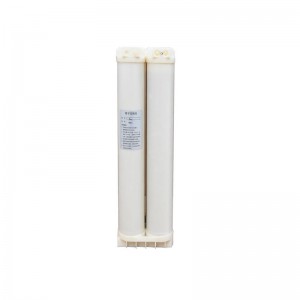

| Purification system | Precision filter*1+300GDP RO reverse osmosis membrane*2+ion purification column*4 | Precision filter*1+400GDP RO reverse osmosis membrane*2+ion purification column*1 | |
| DI deionized water indicator | |||
| Conductivity | 0.055-0.1us/cm | ||
| Resistivity | 10-18.25MΩ.cm | ||
| heavy metal ion | <0.1ppb | ||
| germ | <0.1cfu/ml | ||
| particulates | <1/ml | ||
| RO reverse osmosis water index | |||
| Ion rejection | 96-99% | ||
| Organic Retention Rate | >99% | ||
| Particle and bacteria | >99% | ||
| Water production (25℃) | 60 liters/hour | 80 liters/hour | 100 liters/hour |
| Instant water output | 2500ml/min | ||
| Outlet | 1 RO reverse osmosis water (optional), 1 DI deionized water (standard) | ||
| Use environment | Temperature: 15-35℃ Relative Humidity: ≤80% | ||
| Dimensions/Weight | 390*400*1000mm/35-45kg | 400*393*1002mm | |
| Power/Power | Rated voltage and frequency: 220V±10%, 50/60Hz, rated power: 230W | ||
| The standard | Host + 60L bucket + accessories | Host + 80L bucket + accessories | |
| ①The quality of the influent water will affect the quality of the pure water and the life of the filter column. When the TDS of the influent water is greater than 200ppm, it is recommended to choose an external softener | |||
| ②PF: pre-filtration, AC: activated carbon, RO: reverse osmosis, DI: ion exchange, optional pure water booster module, optional UV sterilization function | ②PF: pre-filtration, AC: activated carbon, RO: reverse osmosis, DI: ion exchange, optional pure water booster module | ||
| ③The best working pressure: 0.55Mpa | |||
Download:Water Purifier
