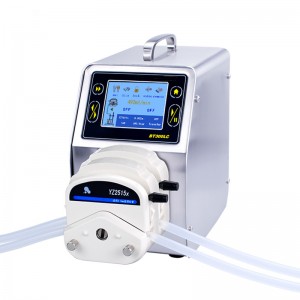

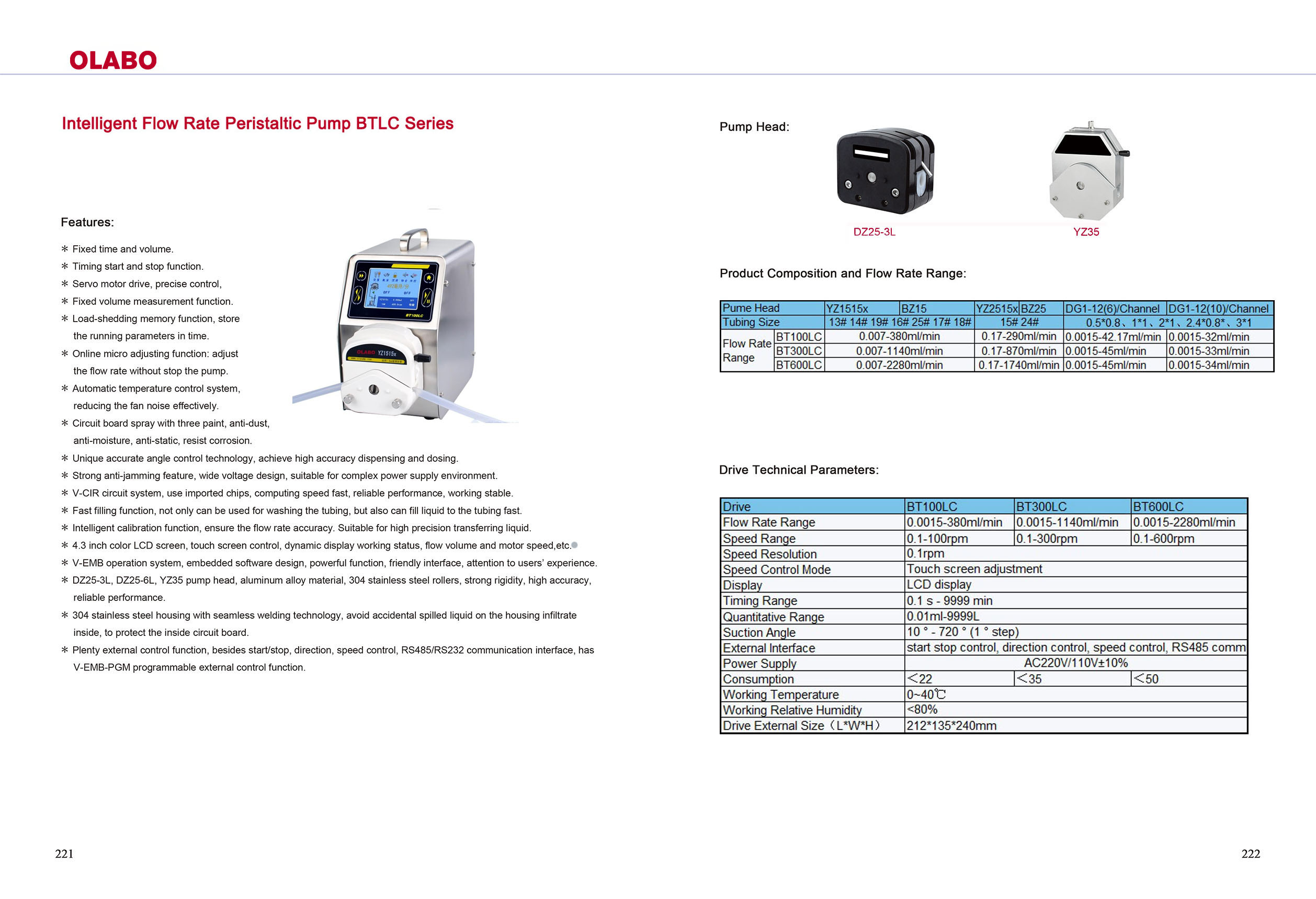

Variable Speed Industrial Peristaltic Pump With Display
Parameter
| Model | BT100LC | BT300LC | BT600LC |
| Speed range | 0.1~100rpm（reversible） | 0.1~300rpm(reversible) | 0.1~600rpm（reversible） |
| Speed resolution | 0.1rpm | ||
| Flow range | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Accuracy | ＜±0.5% | ||
| Flow calibration | Yes | ||
| Control Method | Touch screen + keypad（Support external signal control and communication control） | ||
| Display Mode | LCD（English and Chinese optional） | ||
| Suckback angle | 10°~720° (1° Stepping) | ||
| Suckback speed | 10~100rpm | 10~300rpm | |
| Power supply | AC220V±10%(standard) or AC110V±10%(optional) | ||
| Power consumption | ＜22W | ＜35W | ＜50W |
| Environment Temperature | 0~40℃ | ||
| Relatively Humidity | ＜80%， No condensation | ||
| Drive size | 212*139*240mm | ||
| Drive weight | 3.98kg | 4.3kg | 4.8kg |
| Motor type | Stepper motor | ||
| IP grade | IP31 | ||
| Working mode | Transmission mode | ||
| Speed status signal output | 0-10kHz linear corresponds to 0-600rpm（Max speed） | ||
| Rev. Stop status signal output | switching value signal output | ||
| Direction status signal output | switching value signal output | ||
| External control interface | DB-15 | ||
| External contro | Control Rev. Stop,Direction,Speed.-Support RS485/MODBUS communication protocol , analog quantity control (0-5V 0-10V 4-20mA ...)foot switch control. | ||
Advantage
·Storage function-user data storage function:(9 sets of data) .
·External control function-Multiple mode selection: communication mode, analog mode,foot switch control.Provide customized services.
·Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
· Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system
will automatically carry out flow calibration to ensure the flow accuracy
· Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
·Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
·lock screen function-lock screen design, error proof touch, application more secure.
·Display function-real-time animation of the operation interface shows the running state and working parameter.

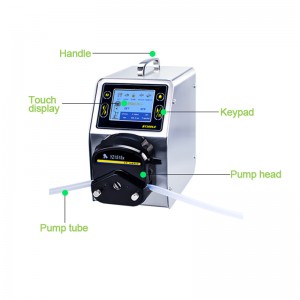

·Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.
Download:Variable Speed Industrial Peristaltic Pump With Display
