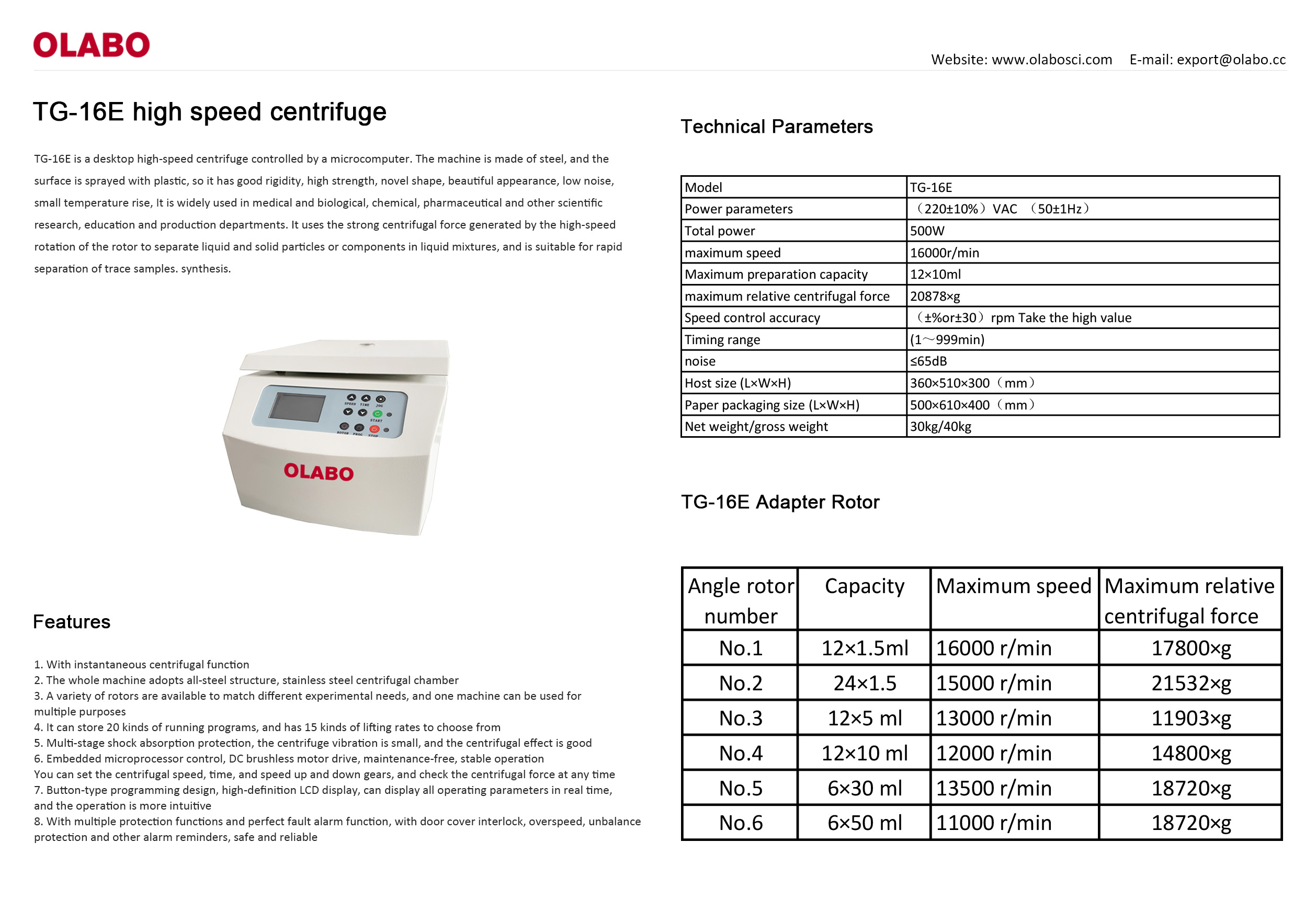

Table Top TG-16E high speed centrifuge
Parameter
Model | TG-16E |
Power parameters | (220±10%)VAC (50±1Hz) |
Total power | 500W |
maximum speed | 16000r/min |
Maximum preparation capacity | 12×10ml |
maximum relative centrifugal force | 20878×g |
Speed control accuracy | (±%or±30)rpm Take the high value |
Timing range | (1~999min) |
noise | ≤65dB |
Host size (L×W×H) | 360×510×300(mm) |
Paper packaging size (L×W×H) | 500×610×400(mm) |
Net weight/gross weight | 30kg/40kg |
Angle rotor
Angle rotor number | Capacity | Maximum speed | Maximum relative centrifugal force |
No.1 | 12×1.5ml | 16000 r/min | 17800×g |
No.2 | 24×1.5 /2.0ml | 15000 r/min | 21532×g |
No.3 | 12×5 ml | 13000 r/min | 11903×g |
No.4 | 12×10 ml | 12000 r/min | 14800×g |
No.5 | 6×30 ml | 13500 r/min | 18720×g |
No.6 | 6×50 ml | 11000 r/min | 18720×g |
Advantage
1. With instantaneous centrifugal function
2. The whole machine adopts all-steel structure, stainless steel centrifugal chamber
3. A variety of rotors are available to match different experimental needs, and one machine can be used for multiple purposes
4. It can store 20 kinds of running programs, and has 1
5 kinds of lifting rates to choose from 5. Multi-stage shock absorption protection, the centrifuge vibration is small, and the centrifugal effect is good
6. Embedded microprocessor control, DC brushless motor drive, maintenance-free, stable operation You can set the centrifugal speed, time, and speed up and down gears, and check the centrifugal force at any time
7. Button-type programming design, high-definition LCD display, can display all operating parameters in real time, and the operation is more intuitive
8. With multiple protection functions and perfect fault alarm function, with door cover interlock, overspeed, unbalance protection and other alarm reminders, safe and reliable
Download:TG-16E high speed centrifuge
