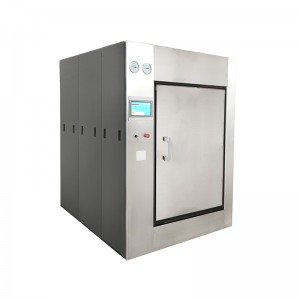

Large Horizontal Pulse Vacuum Autoclave BKQ-Z1200H

Short Description:

Application
For sterilization of medical surgical instruments, dressings, fabrics, etc. in medical and pharmaceutical units.


Product Detail

Brochures

Product Tags

Features

  •  The main body of the annular stiffener has higher strength and stability, more uniform stress and temperature distribution.
  •  The use of pressure transmitters for pressure control and pneumatic valves for drainage, Intelligent and efficient.
  •  With multiple Interlock function, water-saving and noise reduction devices, intelligent fault alarms, information prompts function.
  •  The touch screen with large memory can store multiple print records.
  •  Siemens control system, stable and reliable.

 Model

Model BKQ-Z1200H
Capacity 1200L (316L optional)
Designed Pressure -0.1/0.3MPa
Max Working Temp. 139℃
Working Pressure 0.28MPa
Chamber Material SUS30408
Power Supply 380V,50Hz
Chamber Size(W*D*H) 1500*680*1180mm
External Size (W*D*H) 1760*1450*2100mm
Packing Size (W*D*H) 1910*1600*2250mm
Gross Weight 2100kg

  • Previous:
  • Next:

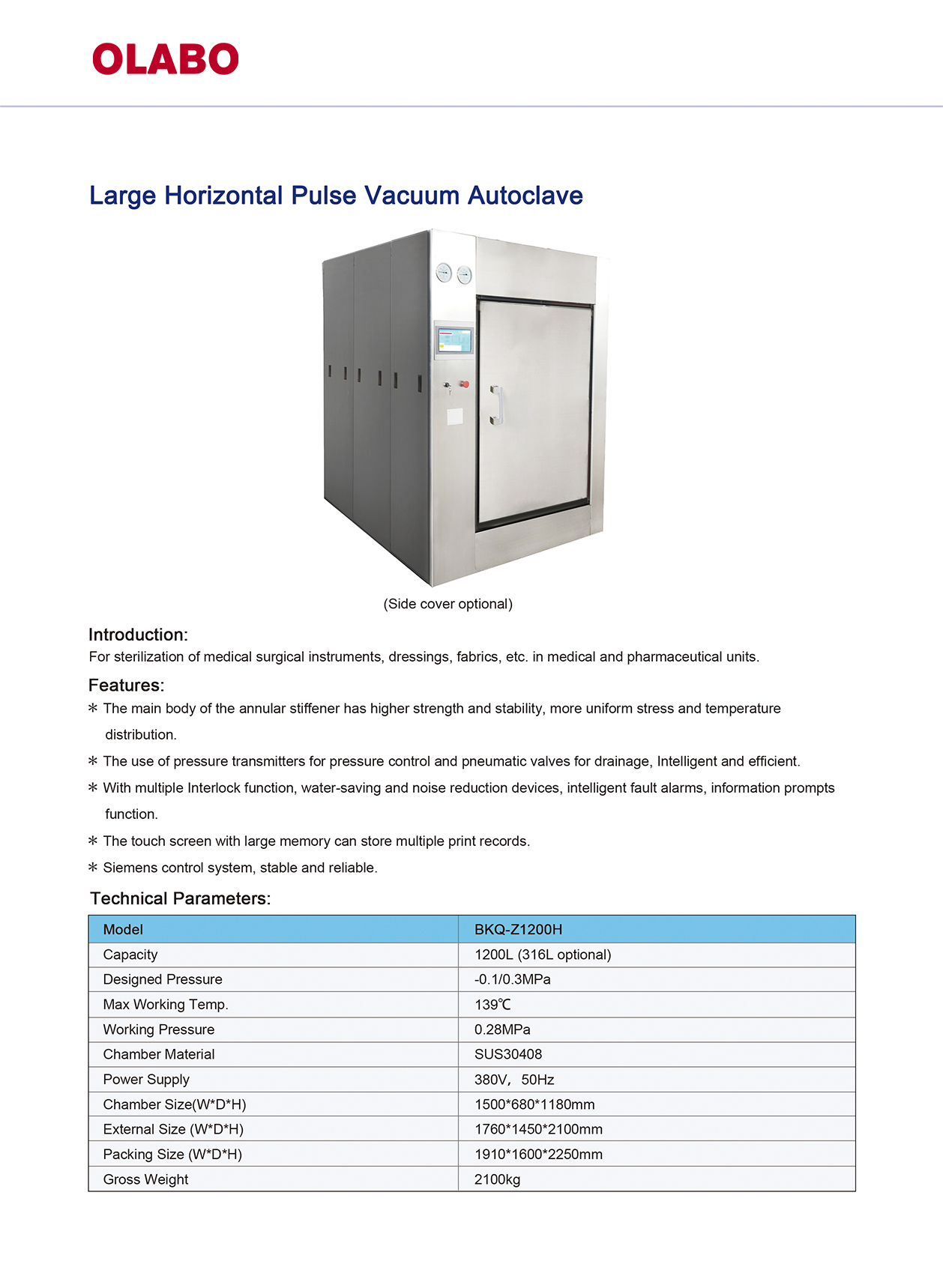

  • Downloads:Large-Horizontal-Pulse-Vacuum-Autoclave-BKQ-Z1200H.jpg

    Large Horizontal Pulse Vacuum Autoclave BKQ-Z1200H
