Vertical Pulse Vacuum Autoclave BKQ-B50V BKQ-B75V

Short Description:

Features:
*Steam water internal circulation.
* Pulse vacuum exhaust to ensure the effect of steam sterilization.
*Mobile probe detects the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
*LCD screen display shows pressure, temperature, time, running status, error codes and operation curve etc.
*Selectable programs for packed, unpacked, dressings, rubber, liquid, liquid custom, solid custom, sterilization of medium, dissolution of medium, B&D testing and vacuum testing etc.
*Complete process of preheating, replacement, pulse exhaust, heating, sterilizing and drying run automatically.
*0.22pm Sterilization high efficiency air filter.The filtration efficiency is higher than 99.5%, ensuring that the vacuum-depleted air is sterile air to prevent re-pollution of sterile materials.
*Standard built-in printer for recording the information during the entire sterilization process.


Product Detail

Brochures

Product Tags

Models:

Model BKQ-B50V BKQ-B75V
Capacity 50L 75L
Chamber Size(mm) φ386x490 φ386x670
Design Pressure -0.1/0.28MPa
Chamber Material S30408
Design Temperature 150°C
Vacuum System Eject vacuum system
Working Temp. 105~134°C
Consumption 5.5KW
Power Supply AC110/220V±10%,50/60HZ
Environment Temperature 5~40°C
Standard SS Basket 1 pc 1pc
External Size(W*D*H)mm 700*610*1070
Package Size(W*D*H)mm 820*740*1380
Gross Weight(kg) 142 145



















Note: It is applicable to the altitude below 3500 meters, and the parts need to be changed when the altitude is over 2000 meters.


  • Previous:
  • Next:

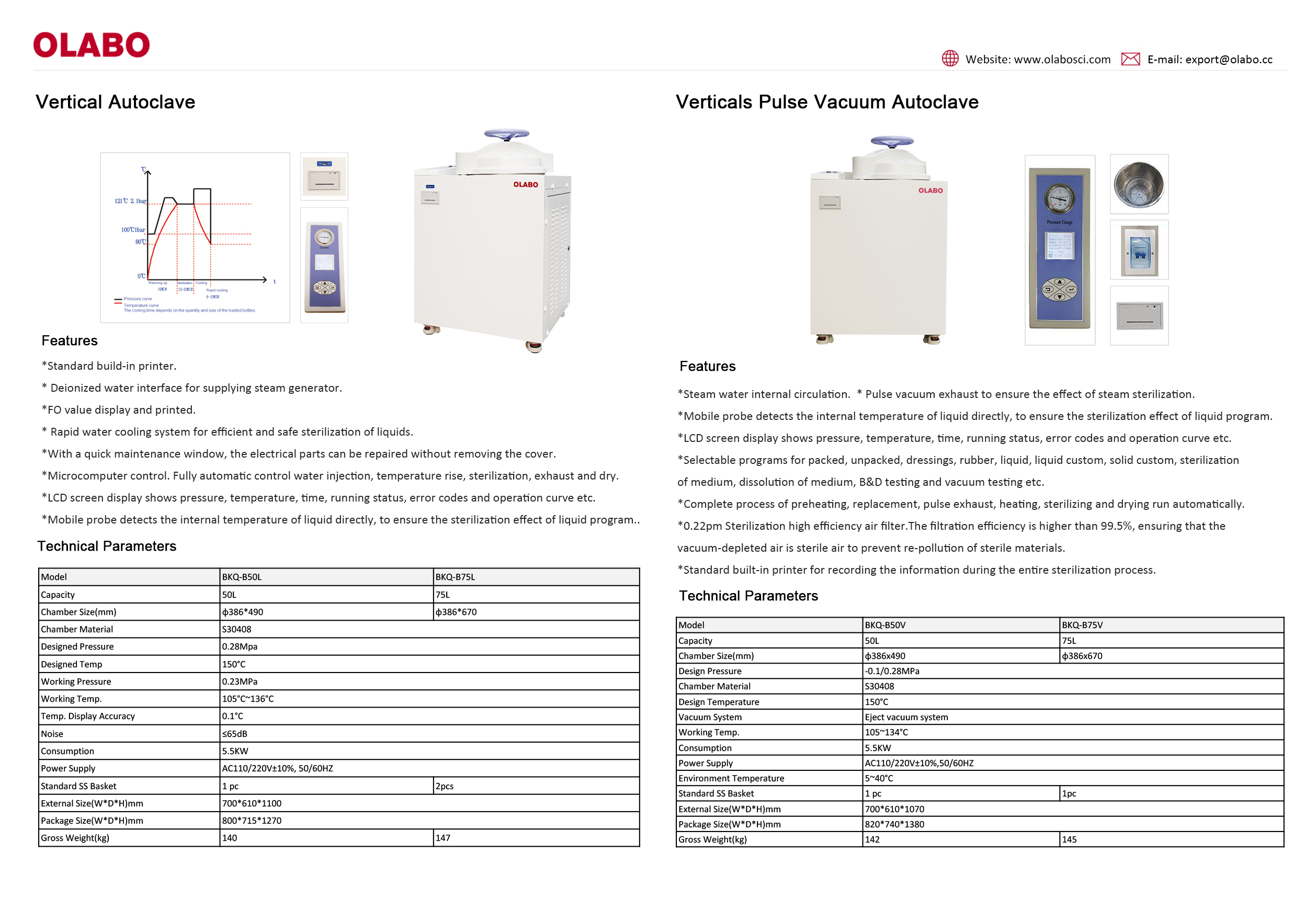

  • Downloads:17-18-Vertical-Autoclave-Vertical-Pulse-Vacuum-Autoclave.jpg

    17-18  Vertical Autoclave & Vertical Pulse Vacuum Autoclave
