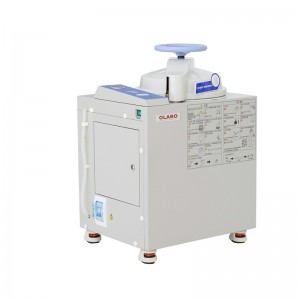

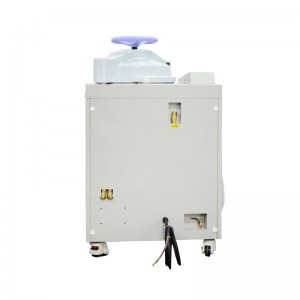

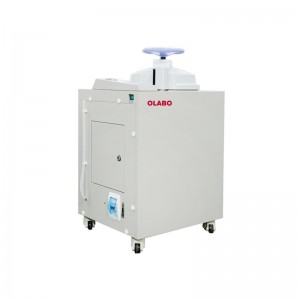

Factory Selling China Ysmj-05 35L/50L/75L/100L Stainless Steel Vertical Steam Autoclave
Assume full obligation to meet all demands of our customers; accomplish ongoing advancements by promoting the advancement of our customers; become the final permanent cooperative partner of clientele and maximize the interests of shoppers for Factory Selling China Ysmj-05 35L/50L/75L/100L Stainless Steel Vertical Steam Autoclave, Let’s cooperate hand in hand to jointly generate a beautiful foreseeable future. We sincerely welcome you to visit our corporation or call us for cooperation!
Assume full obligation to meet all demands of our customers; accomplish ongoing advancements by promoting the advancement of our customers; become the final permanent cooperative partner of clientele and maximize the interests of shoppers for Autoclave Sterilizer, China Autoclave, we rely on own advantages to build a mutual-benefit commerce mechanism with our cooperative partners. As a result, now we have gained a global sales network reaching the Middle East, Turkey, Malaysia and Vietnamese.
Parameter
Model | BKQ-B50II | BKQ-B75II | BKQ-B100II | BKQ-B120II |
Capacity | 50L | 75L | 100L | 120L |
Chamber Size(mm) | φ386*514 | φ386*694 | φ386*874 | φ386*1054 |
Chamber Material | SUS304 | |||
Designed Pressure | 0.28Mpa | |||
Designed Temp | 150℃ | |||
Working Pressure | 0.22MPa | |||
Working temp. | 105~136℃ | |||
Temp. Displayaccuracy | ±0.1℃ | |||
Timing range | 0~999min | |||
Dynamic Pulse Exhaust Times |
0~9 times | |||
Dynamic Pulse Exhaust Temp. |
105~134℃ | |||
Dissolution Temp. Range | 60~100℃ (programmable) | |||
Temp. Holding Range | 40~60℃ (programmable) | |||
Consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW |
Power Supply | AC110/220V±10%, 50/60Hz | 380V, 50Hz/200V, 50/60Hz | ||
SS Basket | 1 pc | 2pcs | 2pcs | 3pcs |
External Size(W*D*H)mm | 640*550*970 | 640*550*1070 | 640*550*1270 | 640*550*1370 |
Packing Size(W*D*H)mm | 750*745*1100 | 750*745*1240 | 750*745*1450 | 750*745*1540 |
Gross Weight(kg) | 102 | 112 | 125 | 140 |
Safety Features
● Over pressure. Safety valve can automatically open to release pressure.
● Over temperature. The system will power off automatically.
● Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
● Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
● Over current. over voltage or electric leakage protection apparatus-air switch.
● Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
Technical Features
● Water inlet filter to keep high water quality.
● Optional printer for recording sterilization data.
● LED screen displays all steps of full process as well as error codes.
● Independent quick service window, easy for repairing and maintenance.
● Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
● Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
● Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
● Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
● Adopting certain temperature(98~102℃) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
● Inner stainless steel water tank for water and steam to circulate inside. Steam dose not exhaust during sterilization, so as to keep the outside clean and dry.
● Drying function.
● Optional stainless steel bucket and tray.
Assume full obligation to meet all demands of our customers; accomplish ongoing advancements by promoting the advancement of our customers; become the final permanent cooperative partner of clientele and maximize the interests of shoppers for Factory Selling China Ysmj-05 35L/50L/75L/100L Stainless Steel Vertical Steam Autoclave, Let’s cooperate hand in hand to jointly generate a beautiful foreseeable future. We sincerely welcome you to visit our corporation or call us for cooperation!
Factory Selling China Autoclave, Autoclave Sterilizer, we rely on own advantages to build a mutual-benefit commerce mechanism with our cooperative partners. As a result, now we have gained a global sales network reaching the Middle East, Turkey, Malaysia and Vietnamese.

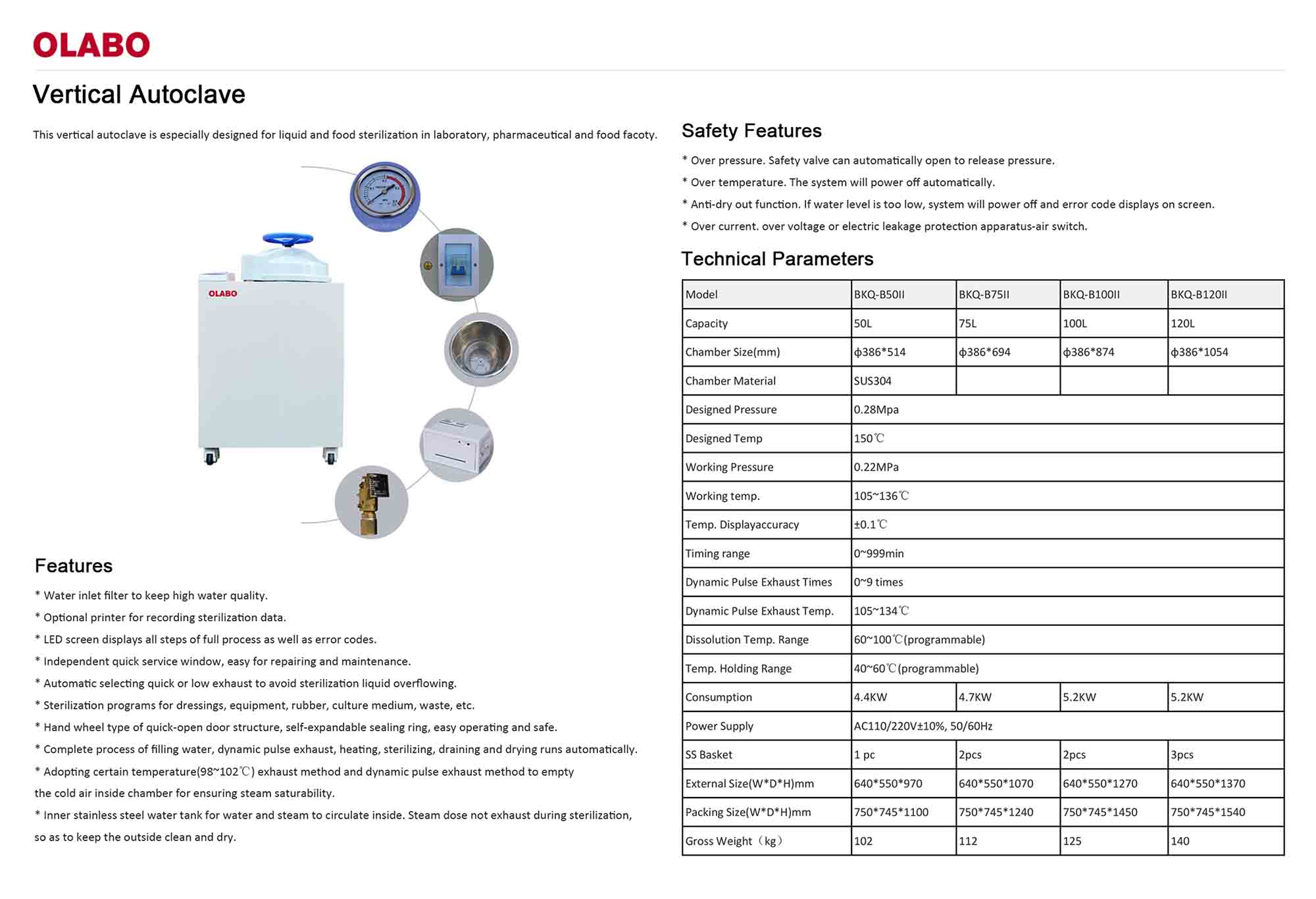

Download: Vertical Autoclave
