Popular Design for China Medcial Equipemt PCR Thermal Cycler DNA Testing Machine Bio Rad Thermal Cycler
The corporate keeps towards the operation concept “scientific administration, superior quality and performance primacy, client supreme for Popular Design for China Medcial Equipemt PCR Thermal Cycler DNA Testing Machine Bio Rad Thermal Cycler, We have a big inventory to fulfill our customer’s demands and needs.
The corporate keeps towards the operation concept “scientific administration, superior quality and performance primacy, client supreme for China Real Time PCR, Fluorescent Quantitative Detection PCR System Rt PCR Machine Real Time, Pcr System, We integrate design, manufacture and export together with more than 100 skillful workers, strict quality controlling system and experienced technology.We keep long term business relationships with wholesaler and distributors form more than 50 countries, such as USA, UK, Canada, Europe and Africa etc.
Parameter

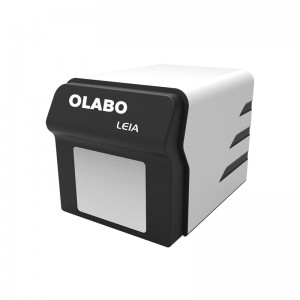

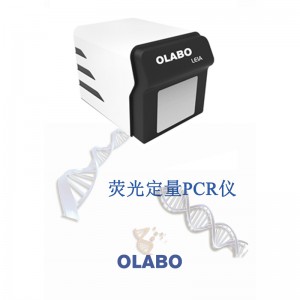

| Product Name | Fluorescence Quantitative PCR Detection System |
| Model | LEIA-X4 |
| Sample Capacity | 96×0.1ml PCR plate, 12×8-strip tubes, 96*0.1ml single tube (Transparent Cover) |
| Reaction System | 10~50μl |
| Dynamics Range | 1-1010 copies |
| Channel | 4 |
| Emission Light | LED |
| Detector | MPPC |
| Detection Path | F1 F2 F3 F4 |
| Suitable Probe/Dye | FAM/SYBR GREEN VIC/JOE/ HEX/TET ROX/TEXAS-RED Cy5 |
| Excitation Wavelength | 455~680nm |
| Detection Wavelength | 510~730nm |
| Fluorescence Detection Repeatability | CV≤2% |
| Fluorescence Detection Accuracy | CV≤3% |
| Fluorescence Detection Linearity | r≥0.995 |
| Module Temp. Range | 4-99℃(resolution:0.1℃) |
| Ramp Rate | 5.0℃/s(max) |
| Temp. Accuracy | ±0.3℃ |
| Temp. Uniformity | ≤ ±0.3℃ |
| Temp. Control Mode | Block mode |
| Gradient Temp. Range | 1-36℃ |
| Hot-Lid Temp. Range | 100℃, Automatic Hot-lid |
| Scanning Mode | Full plate scanning |
| Programming | Max 100 Segments for Each Program, Max 99 Cycles |
| Operation Mode | Continuous |
| Scanning Time | 8.5s |
| Special Function | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. |
| Operation System | Microsoft: Windows10 |
| Power Supply | 220V,50/60HZ; 110V,60HZ |
| Dimension(L*W*H) Mm | 375*490 *365 |
| Port Method | USB Port |
| Packing Size(L*W*H) Mm | 645*565 *605 |
| Gross Weight | 45 |
Features:
● Excellent temperature control performance of the instrument, the maximum temperature rise and fall ≥5.0℃/s.
● No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
● Fluorescence detection adopts MPPC sensor with high sensitivity.
● Long-life LED light source, stable emission wavelength, maintenance-free.
● 4-channel fluorescence detection, no cross interference between channels.
● User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions, all the parameters can be stored.
The corporate keeps towards the operation concept “scientific administration, superior quality and performance primacy, client supreme for Popular Design for China Medcial Equipemt PCR Thermal Cycler DNA Testing Machine Bio Rad Thermal Cycler Mslpcr16, We have a big inventory to fulfill our customer’s demands and needs.
Popular Design for China Real-Time PCR, PCR System, We integrate design, manufacture and export together with more than 100 skillful workers, strict quality controlling system and experienced technology.We keep long term business relationships with wholesaler and distributors form more than 50 countries, such as USA, UK, Canada, Europe and Africa etc.

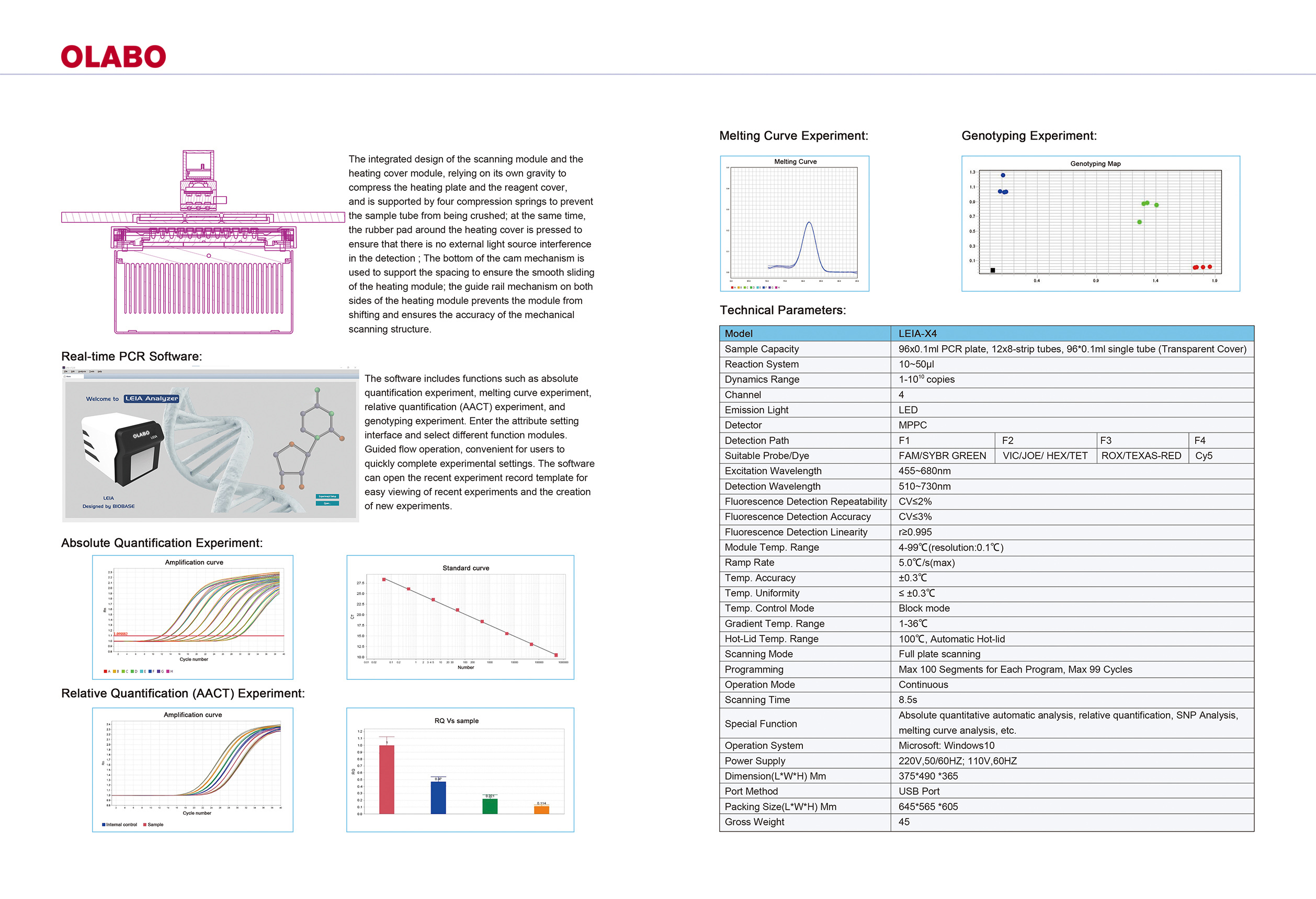

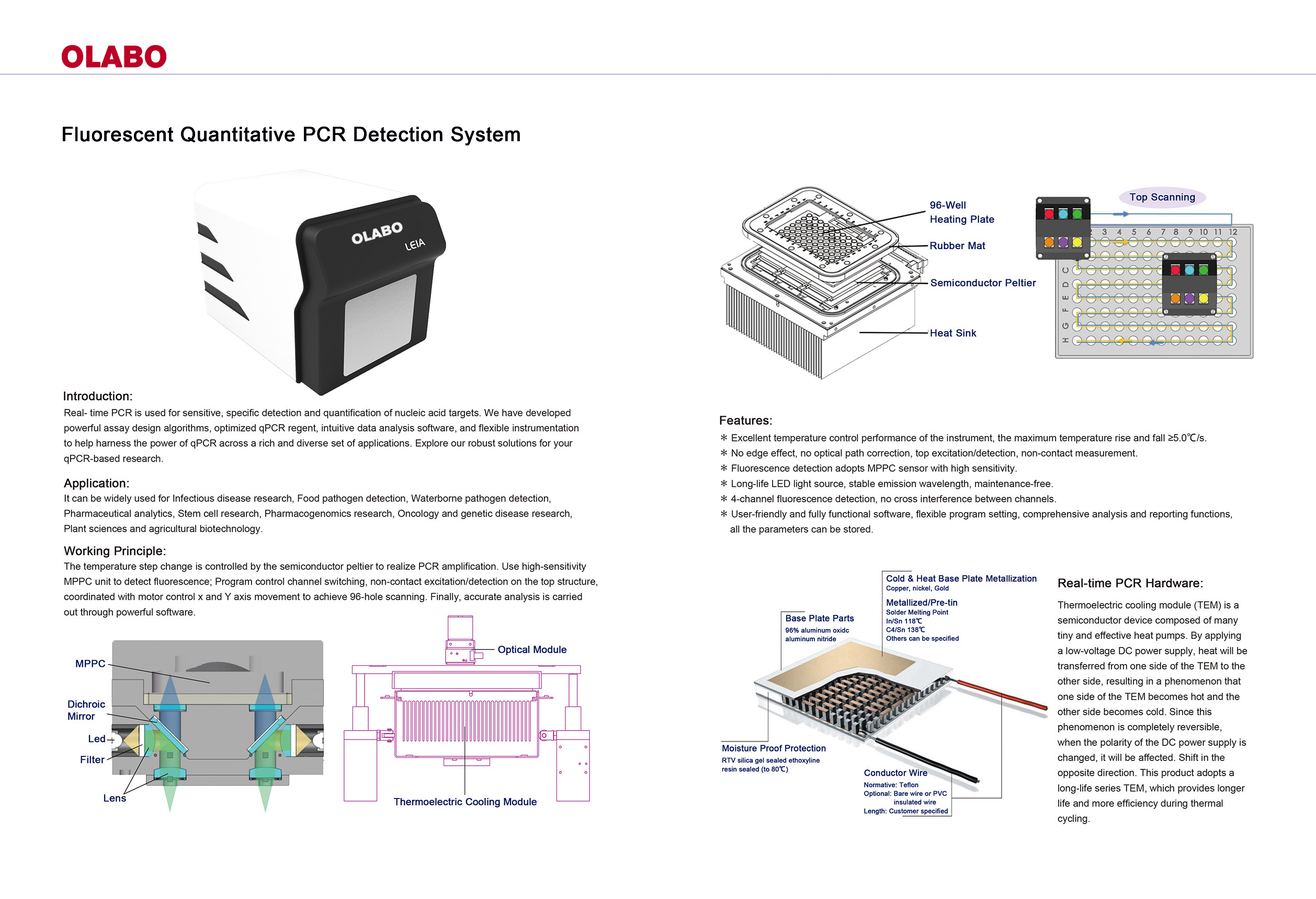

Download:Fluorescent Quantitative Detection System1
Dwownload:Fluorescent Quantitative Detection System2
