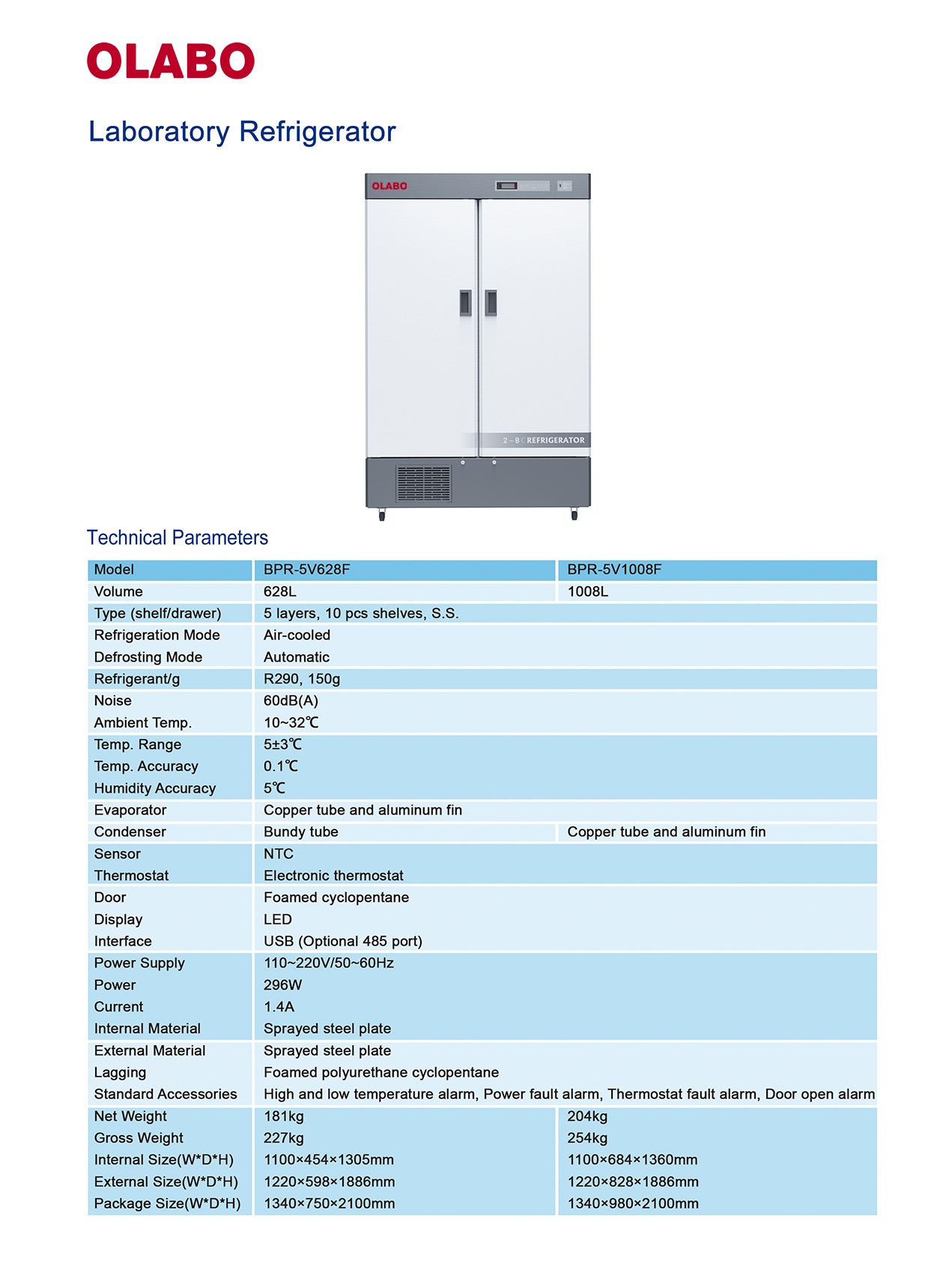

Technical Parameters:
Model |
BPR-5V628F |
BPR-5V1008F |
Volume |
628L |
1008L |
Type (shelf/drawer) |
5 layers, 10 pcs shelves, S.S. |
Refrigeration Mode |
Air-cooled |
Defrosting Mode |
Automatic |
Refrigerant/g |
R290, 150g |
Noise |
60dB(A) |
Ambient Temp. |
10~32℃ |
Temp. Range |
5±3℃ |
Temp. Accuracy |
0.1℃ |
Humidity Accuracy |
5℃ |
Evaporator |
Copper tube and aluminum fin |
Condenser |
Bundy tube |
Copper tube and aluminum fin |
Sensor |
NTC |
Thermostat |
Electronic thermostat |
Door |
Foamed cyclopentane |
Display |
LED |
Interface |
USB (Optional 485 port) |
Power Supply |
110~220V/50~60Hz |
Power |
537W |
Current |
1.4A |
Internal Material |
Sprayed steel plate |
External Material |
Sprayed steel plate |
Lagging |
Foamed polyurethane cyclopentane |
Standard Accessories |
High and low temperature alarm, Power fault alarm, Thermostat fault alarm, Door open alarm |
Net Weight |
181kg |
204kg |
Gross Weight |
227kg |
254kg |
Internal Size(W*D*H) |
1100×454×1305mm |
1100×684×1360mm |
External Size(W*D*H) |
1220×598×1886mm |
1220×828×1886mm |
Package Size(W*D*H) |
1340×750×2100mm |
1340×980×2100mm |
