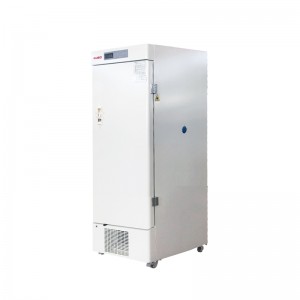

Lab Medical Ultra Low Temperature Storage Refrigerator Freezer for Vaccine
Lab Medical Ultra Low Temperature Storage Refrigerator Freezer for Vaccine,
Vaccine Freezer Medical Freezer Laboratory Freezer Freezer Low Temperature Freezer Refrigerator Ultra Low Temperature,

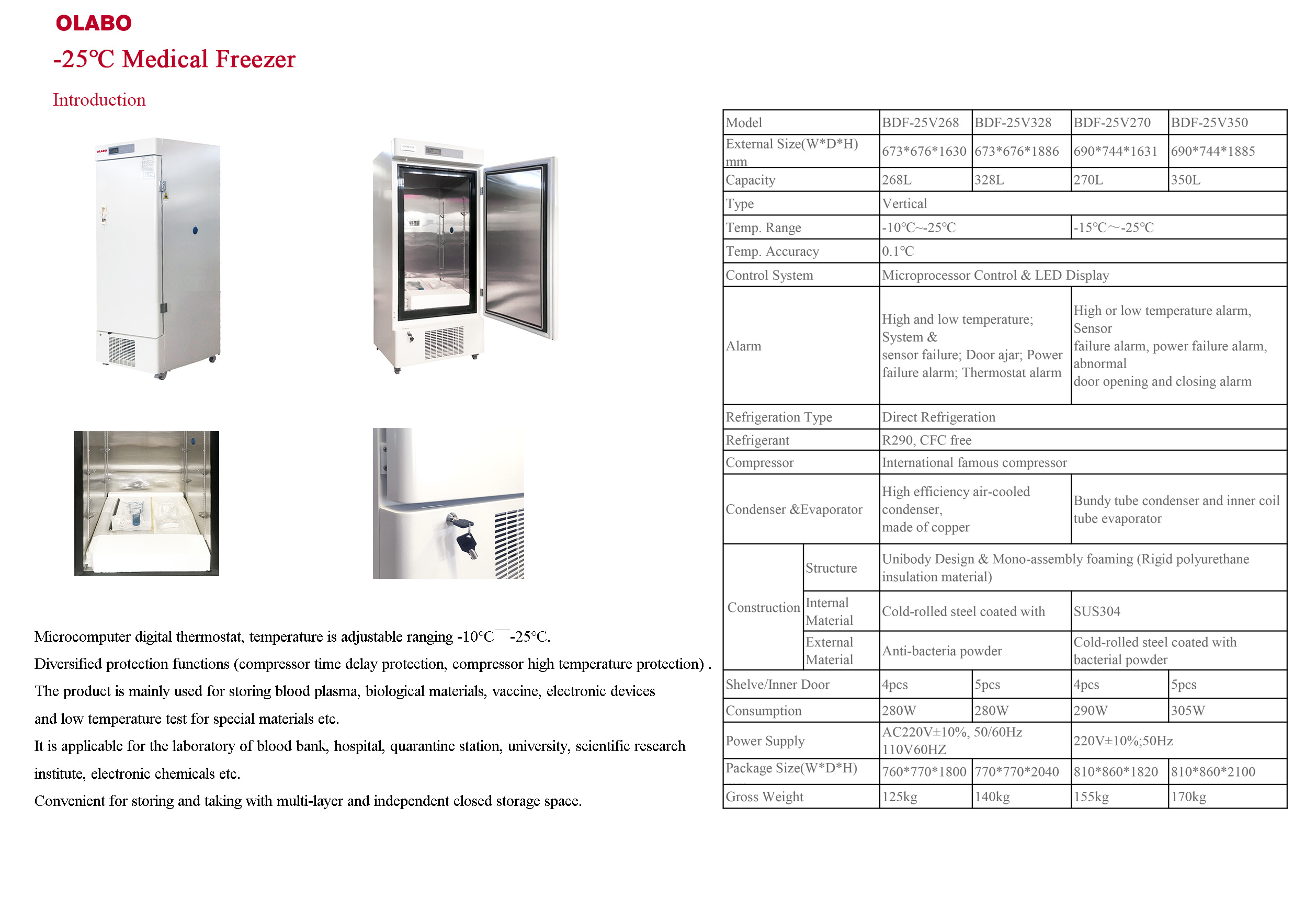

Parameter
| Model | BDF-25V268 | BDF-25V328 | BDF-25V270 | BDF-25V350 | |
| External Size(W*D*H) mm | 673*676*1630 | 673*676*1886 | 690*744*1631 | 690*744*1885 | |
| Capacity | 268L | 328L | 270L | 350L | |
| Type | Vertical | ||||
| Temp. Range | -10℃~-25℃ | -15℃～-25℃ | |||
| Temp. Accuracy | 0.1℃ | ||||
| Control System | Microprocessor Control & LED Display | ||||
| Alarm | High and low temperature; System & | High or low temperature alarm, Sensor | |||
| sensor failure; Door ajar; Power failure | failure alarm, power failure alarm, abnormal | ||||
| alarm; Thermostat alarm | door opening and closing alarm | ||||
| Refrigeration Type | Direct Refrigeration | ||||
| Refrigerant | R290, CFC free | ||||
| Compressor | International famous compressor | ||||
| Condenser &Evaporator | High efficiency air-cooled condenser, | Bundy tube condenser and inner coil | |||
| made of copper | tube evaporator | ||||
| Structure | Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) | ||||
| Construction | Internal Material | Cold-rolled steel coated with | SUS304 | ||
| External Material | anti-bacteria powder | Cold-rolled steel coated with bacterial powder | |||
| Shelve/Inner Door | 4pcs | 5pcs | 4pcs | 5pcs | |
| Consumption | 280W | 280W | 290W | 305W | |
| Power Supply | AC220V±10%, 50/60Hz 110V60HZ | 220V±10%;50Hz | |||
| Package Size(W*D*H) mm | 760*770*1800 | 770*770*2040 | 810*860*1820 | 810*860*2100 | |
| Gross Weight | 125kg | 140kg | 155kg | 170kg | |
Advantage
Microcomputer digital thermostat, temperature is adjustable ranging -10℃～-25℃.
Diversified protection functions (compressor time delay protection, compressor high temperature protection) .
The product is mainly used for storing blood plasma, biological materials, vaccine, electronic devices and low temperature test for special materials etc.
It is applicable for the laboratory of blood bank, hospital, quarantine station, university, scientific research institute, electronic chemicals etc.
Convenient for storing and taking with multi-layer and independent closed storage space.Application
-25°C medical deep freezers are designed to store vaccines, blood plasma, reagent and many other biological materials which is widely use in research institution, clinics, electronic and medical fields.
Features
■ Accurate microprocessor controller to ensure the inside temperature uniformity.
■ HC green refrigerant for energy saving and environmental protection.
■ Upright freezers use quality color sprayed steel panel inside and outside.
■ Wide available voltage range: 187V~242V.
Security

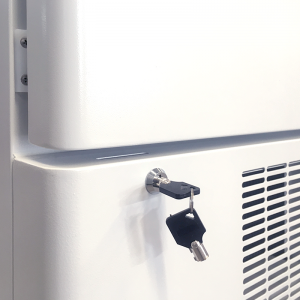

■ Safety door lock and controller setting password to prevent unauthorized access.
■ Build-in back-up battery to display temperature and to operate audible and visual alarm system when power failure(Some models).
■ Inner doors to prevent cold air from leaking out when the outside door is opening (Some models).
■ Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
■ Power failure protection: turn on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or sensor failed.
Download: BDF-25V270-medical-freezer
