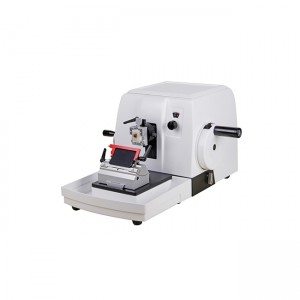

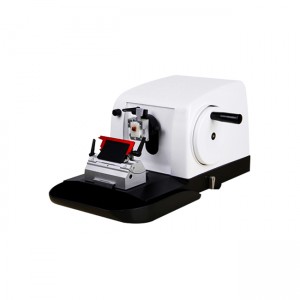

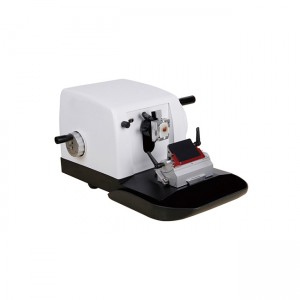

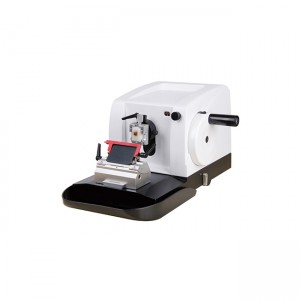

Good quality China Kd-2268 Laboratory Manual Rotary Microtome
We have our own product sales staff, style crew, technical group, QC staff and package staff. We now have strict high quality management procedures for each approach. Also, all of our workers are experienced in printing subject for Good quality China Kd-2268 Laboratory Manual Rotary Microtome, Our enterprise has been devoting that “customer first” and committed to helping shoppers expand their business, so that they become the Big Boss !
We have our own product sales staff, style crew, technical group, QC staff and package staff. We now have strict high quality management procedures for each approach. Also, all of our workers are experienced in printing subject for China Microtome Price, Semi-Auto Microtome, With strong technical strength and advanced production equipment, and SMS people purposefully , experienced, dedicated spirit of enterprise. Enterprises took the lead through the ISO 9001:2008 international quality management system certification, CE certification EU ; CCC.SGS.CQC other related product certification. We look forward to reactivating our company connection.
Parameter
Model | BK-2258 | BK-2218 | BK-2268 | ||
Function | Sectioning, trimming, fast forward, fast backward, quick conversion; | ||||
automatic retraction (Only for BK-2268). | |||||
Specimen Retraction | / | / | 60μm (on/off) | ||
Sectioning Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
0~2μm increment 0.5μm | 0~10μm increment 1μm | 0~20μm increment 1μm | |||
2~10μm increment 1μm | 10~20μm increment 2μm | 20~60μm increment 5μm | |||
10~20μm increment 2μm | 20~60μm increment 5μm | ||||
20~60μm increment 5μm | |||||
Trimming Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
Mini. Sectioning Thickness | 0.5μm | 1μm | |||
Max. Specimen Size | 50*70mm | 60*70mm | 70*70mm | ||
Precision | ±5% | ||||
Specimen Horizontal Feed | 28mm | 29mm | 28mm | ||
Specimen Vertical Stroke | 52mm | 60mm | 70mm | ||
Specimen Orientation | XY – 8° | ||||
External Size (W*D*H) | 565*440*285mm | 570*440*290mm | 590*500*330mm | ||
Package Size (W*D*H) | 620*530*450mm | 620*530*450mm | 690*590*500mm | ||
Gross Weight | 40kg | 40kg | 54kg |
Features
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.We have our own product sales staff, style crew, technical group, QC staff and package staff. We now have strict high quality management procedures for each approach. Also, all of our workers are experienced in printing subject for Good quality China Kd-2268 Laboratory Manual Rotary Microtome, Our enterprise has been devoting that “customer first” and committed to helping shoppers expand their business, so that they become the Big Boss !
Good quality China Microtome Price, Semi-Auto Microtome, With strong technical strength and advanced production equipment, and SMS people purposefully , experienced, dedicated spirit of enterprise. Enterprises took the lead through the ISO 9001:2008 international quality management system certification. We look forward to reactivating our company connection.
