China Laboratory Manual Retraction Principle of Rotary Microtome
Together with the “Client-Oriented” enterprise philosophy, a arduous good quality control technique, sophisticated producing equipment and a sturdy R&D staff, we generally offer superior quality merchandise, superb solutions and aggressive rates for China Laboratory Manual Retraction Principle of Rotary Microtome, We have been in operation for more than 10 years. We are dedicated to quality products and consumer support. We invite you to visit our company for a personalized tour and advanced business guidance.
Together with the “Client-Oriented” enterprise philosophy, a arduous good quality control technique, sophisticated producing equipment and a sturdy R&D staff, we generally offer superior quality merchandise, superb solutions and aggressive rates for China Pathological Analysis, Microtome, Only for accomplishing the good-quality product to meet customer’s demand, all of our goods have been strictly inspected before shipment. We always think about the question on the side of the customers, because you win, we win!
Parameter
| Model | BK-2258 | BK-2218 | BK-2268 | ||
| Function | Sectioning, trimming, fast forward, fast backward, quick conversion; | ||||
| automatic retraction (Only for BK-2268). | |||||
| Specimen Retraction | / | / | 60μm (on/off) | ||
| Sectioning Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
| 0~2μm increment 0.5μm | 0~10μm increment 1μm | 0~20μm increment 1μm | |||
| 2~10μm increment 1μm | 10~20μm increment 2μm | 20~60μm increment 5μm | |||
| 10~20μm increment 2μm | 20~60μm increment 5μm | ||||
| 20~60μm increment 5μm | |||||
| Trimming Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
| Mini. Sectioning Thickness | 0.5μm | 1μm | |||
| Max. Specimen Size | 50*70mm | 60*70mm | 70*70mm | ||
| Precision | ±5％ | ||||
| Specimen Horizontal Feed | 28mm | 29mm | 28mm | ||
| Specimen Vertical Stroke | 52mm | 60mm | 70mm | ||
| Specimen Orientation | XY – 8° | ||||
| External Size (W*D*H) | 565*440*285mm | 570*440*290mm | 590*500*330mm | ||
| Package Size (W*D*H) | 620*530*450mm | 620*530*450mm | 690*590*500mm | ||
| Gross Weight | 40kg | 40kg | 54kg | ||
Features
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.
Together with the “Client-Oriented” enterprise philosophy, a arduous good quality control technique, sophisticated producing equipment and a sturdy R&D staff, we generally offer superior quality merchandise, superb solutions and aggressive rates for Personlized Products China Laboratory Manual Retraction Principle of Rotary Microtome, We have been in operation for more than 10 years. We are dedicated to quality products and consumer support. We invite you to visit our company for a personalized tour and advanced business guidance.
Personlized Products China Pathological Analysis, Microtome, Only for accomplishing the good-quality product to meet customer’s demand, all of our goods have been strictly inspected before shipment. We always think about the question on the side of the customers, because you win, we win!

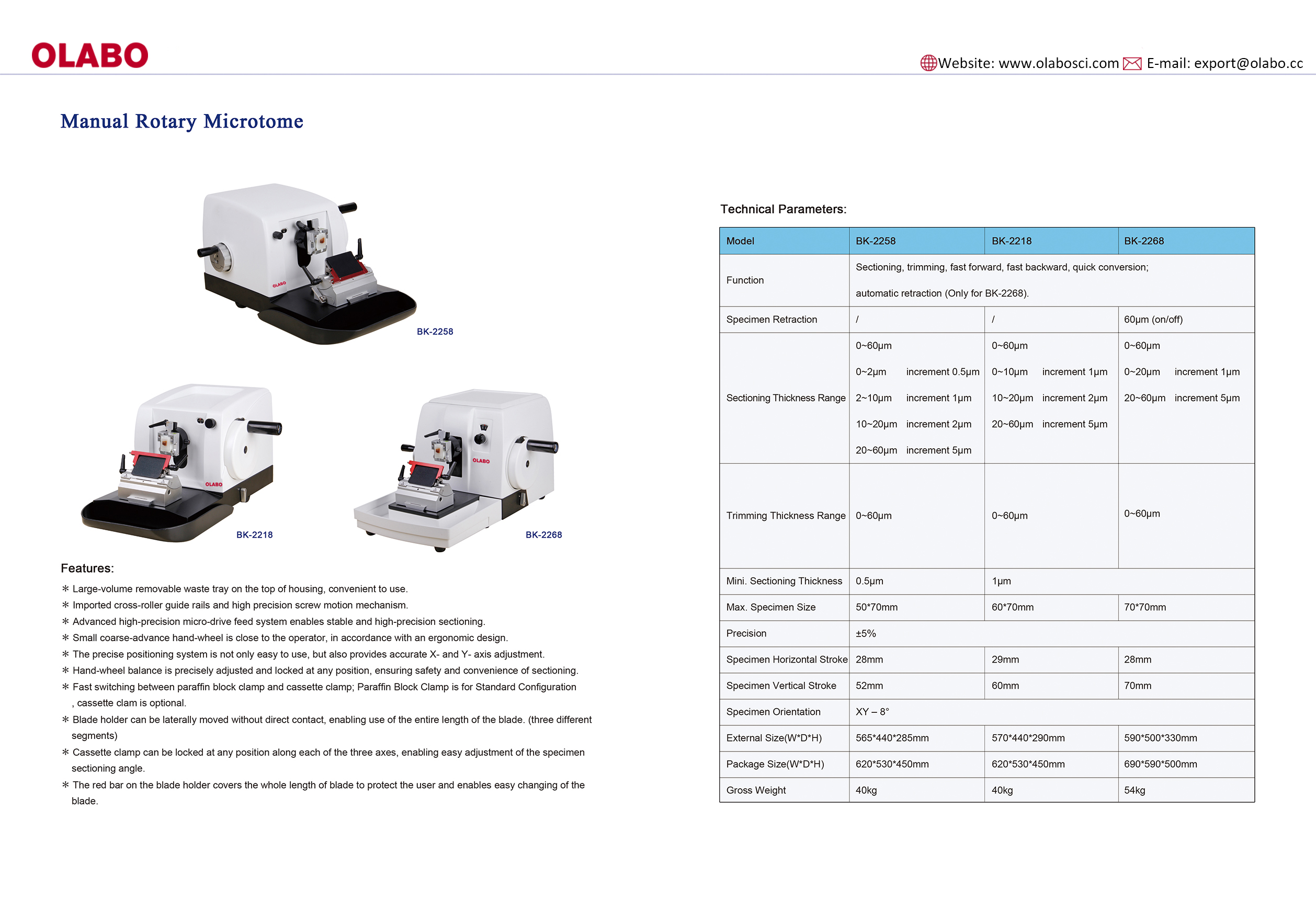

Downloads:OLABO TOP sales Manual Rotary Microtome
