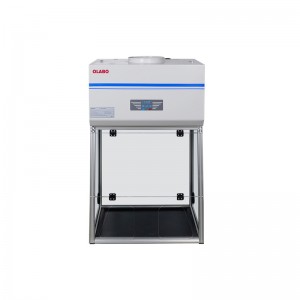

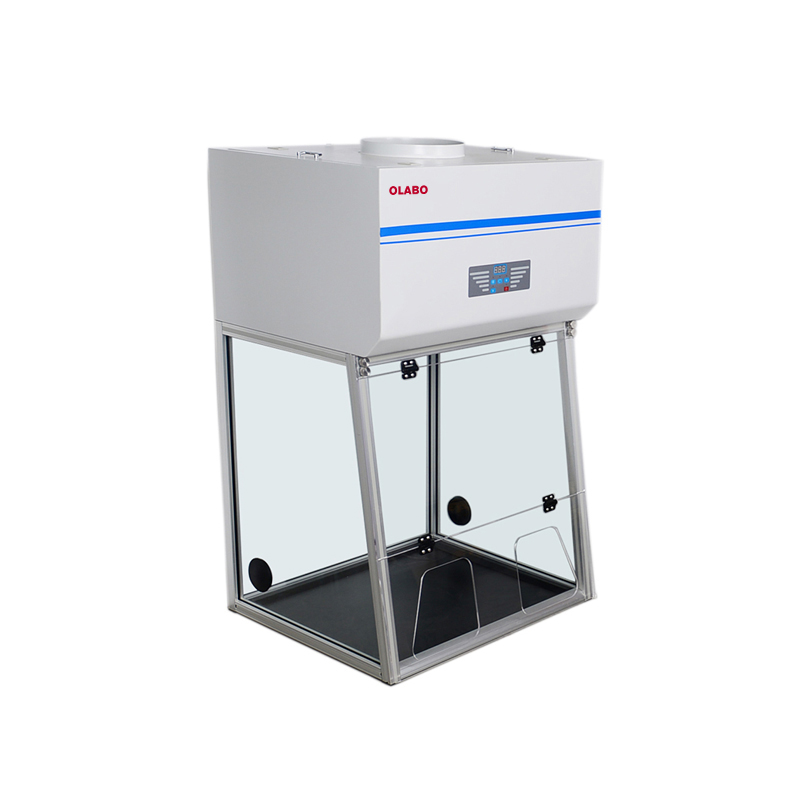

BIOBASE FH700 Small Benchtop Fume Hood
BIOBASE FH700 Small Benchtop Fume Hood
In the chemical laboratory, the experimental operation will produce a variety of harmful odor gases, bad smell, moisture and corrosive substances, in order to protect the safety of users and prevent contaminants in the experiment from spreading to the laboratory, the fume hood is used in the vicinity of pollution sources.

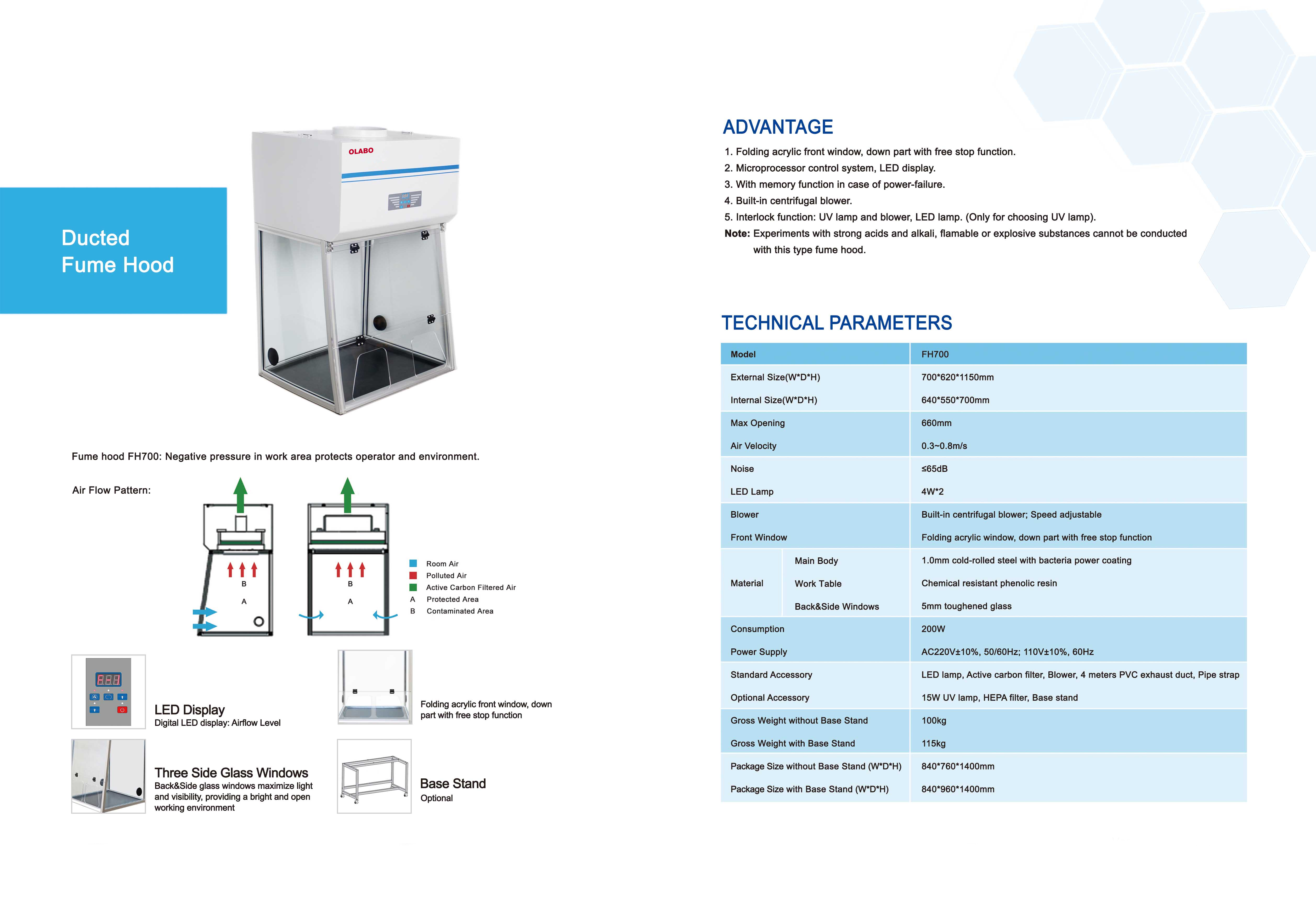

Fume Hood FH700:Negative pressure in work area protects operator and environment.
ADVANTAGE
1. Folding acrylic front window, down part with free stop function.
2. Microprocessor control system, LED display.
3. With memory function in case of power-failure.
4. Built-in centrifugal blower.
5. Interlock function: UV lamp and blower, LED lamp. (Only for choosing UV lamp).
Note: Experiments with strong acids and alkali, flamable or explosive substances cannot be conducted with this type fume hood.
ADVANTAGE
1. Folding acrylic front window, down part with free stop function.
2. Microprocessor control system, LED display.
3. With memory function in case of power-failure.
4. Built-in centrifugal blower.
5. Interlock function: UV lamp and blower, LED lamp. (Only for choosing UV lamp).
Note: Experiments with strong acids and alkali, flamable or explosive substances cannot be conducted with this type fume hood.
ADVANTAGE
1. Folding acrylic front window, down part with free stop function.
2. Microprocessor control system, LED display.
3. With memory function in case of power-failure.
4. Built-in centrifugal blower.
5. Interlock function: UV lamp and blower, LED lamp. (Only for choosing UV lamp).
Note: Experiments with strong acids and alkali, flamable or explosive substances cannot be conducted with this type fume hood.
Models:
| Model | FH700 | |
| External Size(W*D*H) | 700*620*1150mm | |
| Internal Size(W*D*H) | 640*550*700mm | |
| Max Opening | 660mm | |
| Air Velocity | 0.3~0.8m/s | |
| Noise | ≤65dB | |
| LED Lamp | 4W*2 | |
| Blower | Built-in centrifugal blower; Speed adjustable | |
| Front Window | Folding acrylic window, down part with free stop function | |
| Material | Main Body | 1.0mm cold-rolled steel with bacteria power coating |
| Work Table | Chemical resistant phenolic resin | |
| Back&Side Windows | 5mm toughened glass | |
| Consumption | 200W | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, Active carbon filter, Blower, 4 meters PVC exhaust duct, Pipe strap | |
| Optional Accessory | 15W UV lamp, HEPA filter, Base stand | |
| Gross Weight without Base Stand | 100kg | |
| Gross Weight with Base Stand | 115kg | |
| Package Size without Base Stand(W*D*H) | 840*760*1400mm | |
| Package Size with Base Stand(W*D*H) | 840*960*1400mm | |
Standard Accessory:
LED lamp, Active carbon filter, Blower, 4 meters PVC exhaust duct, Pipe strap
Optional Accessory： 15W UV lamp, HEPA filter
