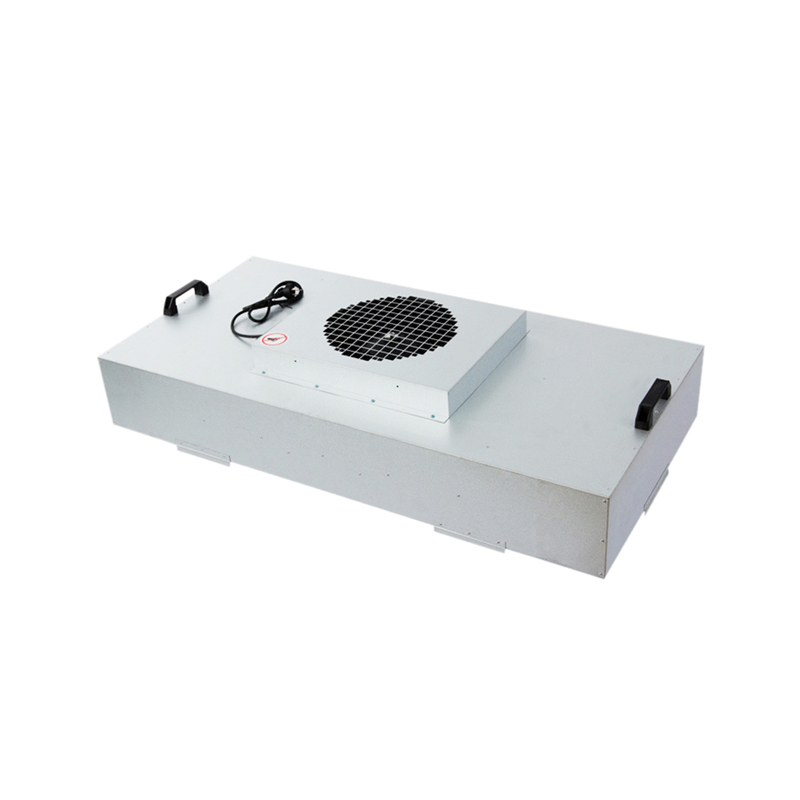

BIOBASE FFU Fan Filter Unit Hepa With Hepa Filter Clean Room
BIOBASE Ffu Fan Filter Unit Hepa With Hepa Filter Clean Room
The FFU (Fan Filter Unit) is a kind of self-powered, modular end air supply device with filtration function.
The FFU filters the top air through a HEPA filter, and the filtered clean air is uniformly sent out over the entire air outlet at the velocity of 0.45 m/s ± 20%. It is widely used in semiconductor, liquid crystal manufacturing, electronics, bio-pharmaceutical and other industries.
Technical parameters
| Model | FFU 1000 | FFU 1200 | FFU 1500 | FFU 1800 |
| External Size (W*D*H) | 975*575*380mm | 1175*575*380mm | 1475*575*380mm | 1775*575*380mm |
| Air Velocity | 0.45m/s±20% | |||
| HEPA Filter | 99.999% efficiency at 0.3μm | |||
| HEPA Filter Size(W*D*H) | 970*69*570mm | 1170*69*570mm | 1470*69*570mm | 1770*69*570mm |
| Blower | Built-in centrifugal blower | |||
| Noise | ≤60dB | |||
| Consumption | 110W | 220W | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 50/60Hz | |||
| Shell Material | Aluminium coated zinc plate | |||
| Gross Weight | 60kg | 70kg | 90kg | 110kg |
| Package Size(W*D*H) | 1135*540*800mm | 1335*540*800mm | 1635*540*800mm | 1935*540*800mm |
