Table Top Autoclave Class B Series BKM-Z05B BKM-Z10B

Short Description:

Introduction
BKM-Z05B/10B small pressure steam sterilizer series is a B-class sterilizer, which uses steam as a medium, through repeated vacuum and steam filling pulsating cycle, so that the sterilization chamber reaches a certain degree of vacuum, and then fills saturated steam again to achieve the purpose of sterilizing the sterilized items. It can meet the needs of oral, ophthalmic, operating room and other medical institutions for rapid sterilization.


Product Detail

Brochures

Product Tags

Features

1.Sterilization chamber: The square pot body design is adopted, and the capacity of the sterilization load unit is high.

2.Automatic door structure: automatic door structure is adopted to prevent burns.

3.Rapid Sterilization: The fast program completes the sterilization cycle in as little as 25 minutes.

4.Diversified programs: 5 sets of sterilization programs including built-in quick program, packaging device, dressing program, rubber program, custom program, B&D test, and vacuum test.

5.Interactive operation interface: real-time display of information such as pressure, temperature, time, sterilization status, and alarm codes.

6.Sterilization records: standard thermal micro-printer and USB interface.

7.High-quality material selection: The sterilization chamber is made of high-quality S30408 stainless steel.



Technical Parameters

Model BKM-Z05B BKM-Z10B
Capacity 5L 10L
Design Pressure -0.1/0.3Mpa
Rated Working Temp. 105-138℃
Chamber Material SUS30408
Power 2kW
Ambient Temp. 5-40℃
Internal Size 210*96*368mm 240*144*327mm
External Size 470*325*600mm 485*325*582mm
Power Supply Standard: 220V 50/60Hz, optional: 110V 50/60Hz
Packing Size 695mm*595mm*463mm
Gross Weight 55kg 57kg

  • Previous:
  • Next:

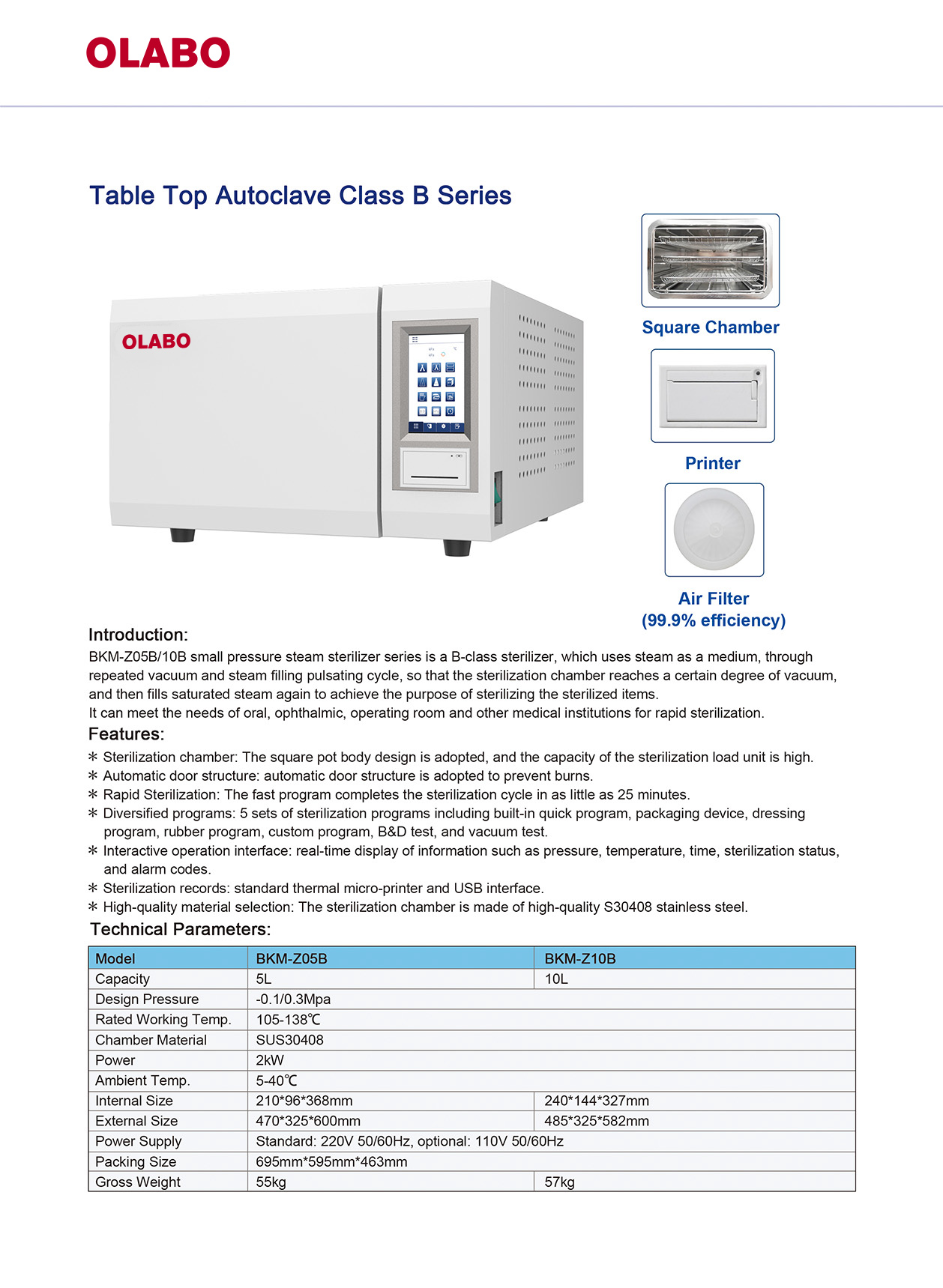

  • Downloads:Table-Top-Autoclave-Class-B-Series.jpg

    Table Top Autoclave Class B Series
