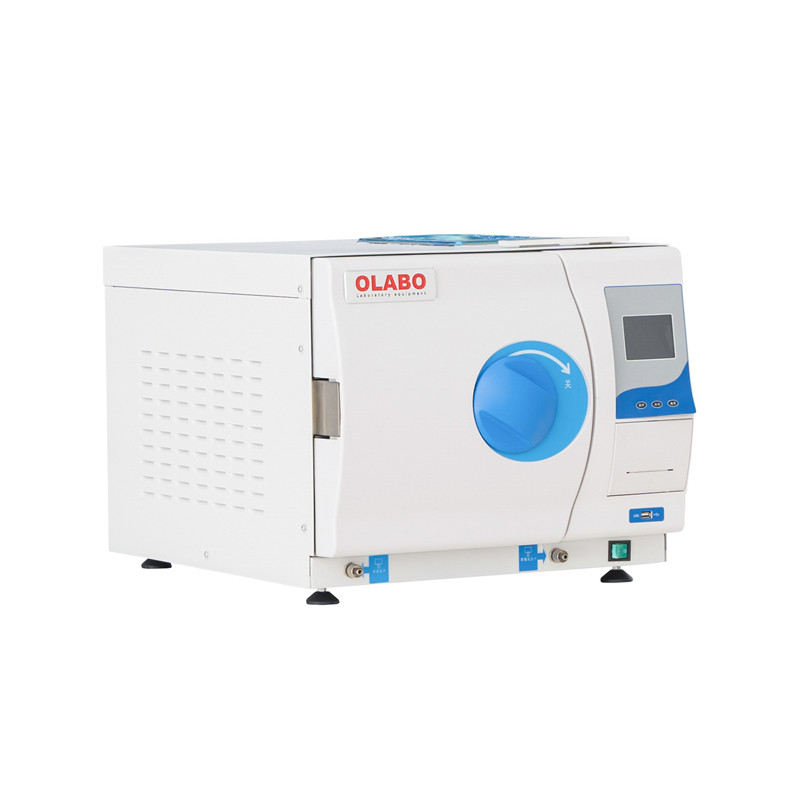

OEM Factory for Portable Steam Autoclave - Table Top Autoclave Class B Series – OLABO
OEM Factory for Portable Steam Autoclave - Table Top Autoclave Class B Series – OLABO Detail:
Parameter
| Model | BKM-Z18A | BKM-Z23B |
| Capacity | 18L | 23L |
| Chamber Size(mm) | φ247*360 | φ247*470 |
| Sterilization Class | Class B (according toGB0646) | |
| Sterilization Temp. | 121℃,134℃ | |
| Special Program | / | |
| Drying System | Vacuum drying system | |
| Display | LCD display | |
| Testing System | B&D Test | |
| Vacuum Test | ||
| Helix Test | ||
| Control Precision | Temperature: 1℃ | |
| Pressure: 0.1bar | ||
| Sterilization Data | BKM-Z16B:Printer(optional) | |
| BKM-Z18B/BKM-Z24B:USB(standard) and printer(optional) | ||
| Safety System | Hand lock door | |
| Pressure lock system | ||
| Relief valve in case of over pressure | ||
| Pressure or temperature over load protection | ||
| Alarm for system failure, finish reminding, water level warning | ||
| Water Supply System | Build-in water tank easy to clean | |
| WaterTankCapacity | 4L | |
| Water Consumption | 0.16L~0.18L in one cycle | |
| Tray Holder | 3 pcs SS trays on SS shelf | |
| Chamber | SUS304 | |
| Max working pressure:2.3bar | ||
| Min working pressure: -0.9bar | ||
| Designtemperature: 140℃ | ||
| Ambient Temp. | 5～40℃ | |
| Noise | <50dB | |
| Consumption | 1950W | 1950W |
| Power Supply | 110/220V±10%,50/60Hz | |
| External Size(W*D*H)mm | 495*600*410 | 495*700*410 |
| Packing Size(W*D*H)mm | 610*810*590 | 610*810*590 |
| Gross Weight(kg) | 63 | 65 |
| Model | BKMZA |
| Internal dimensions/mm | Φ247×360 |
| Overall dimension/mm | 600×495×410 |
| Net weight/Kg | 48 |
| Power / VA | 2000 |
| Equipment type | Class B |
| Power Supply | AC220V±22V，50Hz |
| Sterilization temperature | 121℃/134℃ |
| Design pressure | 0.28MPa |
| Water tank capacity | About 3.5L (maximum water level); minimum water supply 0.5L (minimum water level) |
| Ambient temperature | 5~40℃ |
| Relative humidity | ≤85% |
| Atmospheric pressure | 76Kpa-106kpa |
| Model | BKMZB |
| Internal dimensions/mm | Φ247×470 |
| Overall dimension/mm | 700×495×410 |
| Net weight/Kg | 53 |
| Power / VA | 2000 |
| Equipment type | Class B |
| Power Supply | AC220V±22V，50Hz |
| Sterilization temperature | 121℃/134℃ |
| Design pressure | 0.28MPa |
| Water tank capacity | About 3.5L (maximum water level); minimum water supply 0.5L (minimum water level) |
| Ambient temperature | 5~40℃ |
| Relative humidity | ≤85% |
| Atmospheric pressure | 76Kpa-106kpa |
| Model | BKM-Z45B |
| Capacity | 45L |
| Design pressure | -0.1~0.3MPa |
| Sterilization temperature | 105-138℃ |
| Cavity material | SUS304 |
| Power Supply | AC220V, 50/60HZ |
| Power | 5.8KW |
| Ambient temperature | 5-40℃ |
| Internal dimensions/mm | φ316*621 |
| Overall dimension/mm | 1000*610*560 |
| Net weight/Kg | 150 |
Application
BKMZA series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room
and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.
Features
1. Build-in open type water tank
The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.
2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
3. Large LCD display for BKMZA/BKMZB
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.
4. Multiple program types
The system has various programs that include packed items, unpacked items, BD testing program, vacuum testing program and drying function.
Custom program, rapid program and preheat function(for BKM-Z16B).
5. Standard USB port for BKMZA/BKMZB
Users can store the sterilization data with USB disk.
6. Optional mini printer can be attached to record the process of sterilization.
