Keep of the Laboratory in a Safety Environment

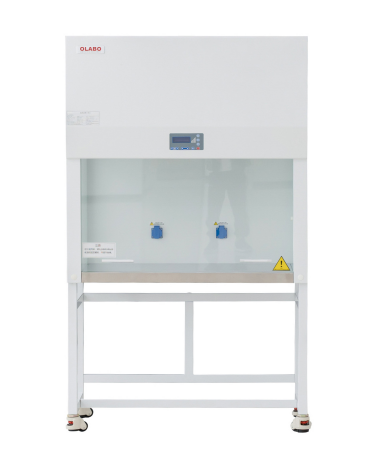

—Vertical Horizontal Laminar Flow Cabinet

Function

Laminar Flow Cabinet –LAF Cabinet is only for sample protection.

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. This model is vertical laminar flow cabinet.

Protected Objects

Laminar flow cabinet is to protect the experimental material, to create a local high cleanliness air environment, the main role is to ensure the accuracy of the experiment in the operating area, but it cannot provide protection for environment and operator.

Features

High-Quality Construction

1.Stainless steel worktop

2.Spill-retaining design will ensure containment of accidental liquid spills

Quiet Operation

1.Comfortable low noise< 65dB

2.Reduce fatigue and improve work concentration

Security

The UV lamp is turned on with a delay of five seconds to protect the safety of the operator.

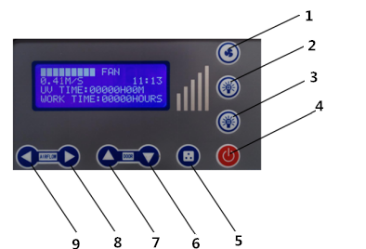

Control panel

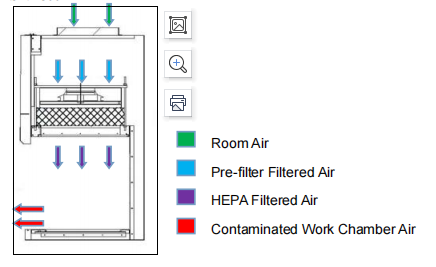

Operating Principle/Air flow Pattern

Parameter
