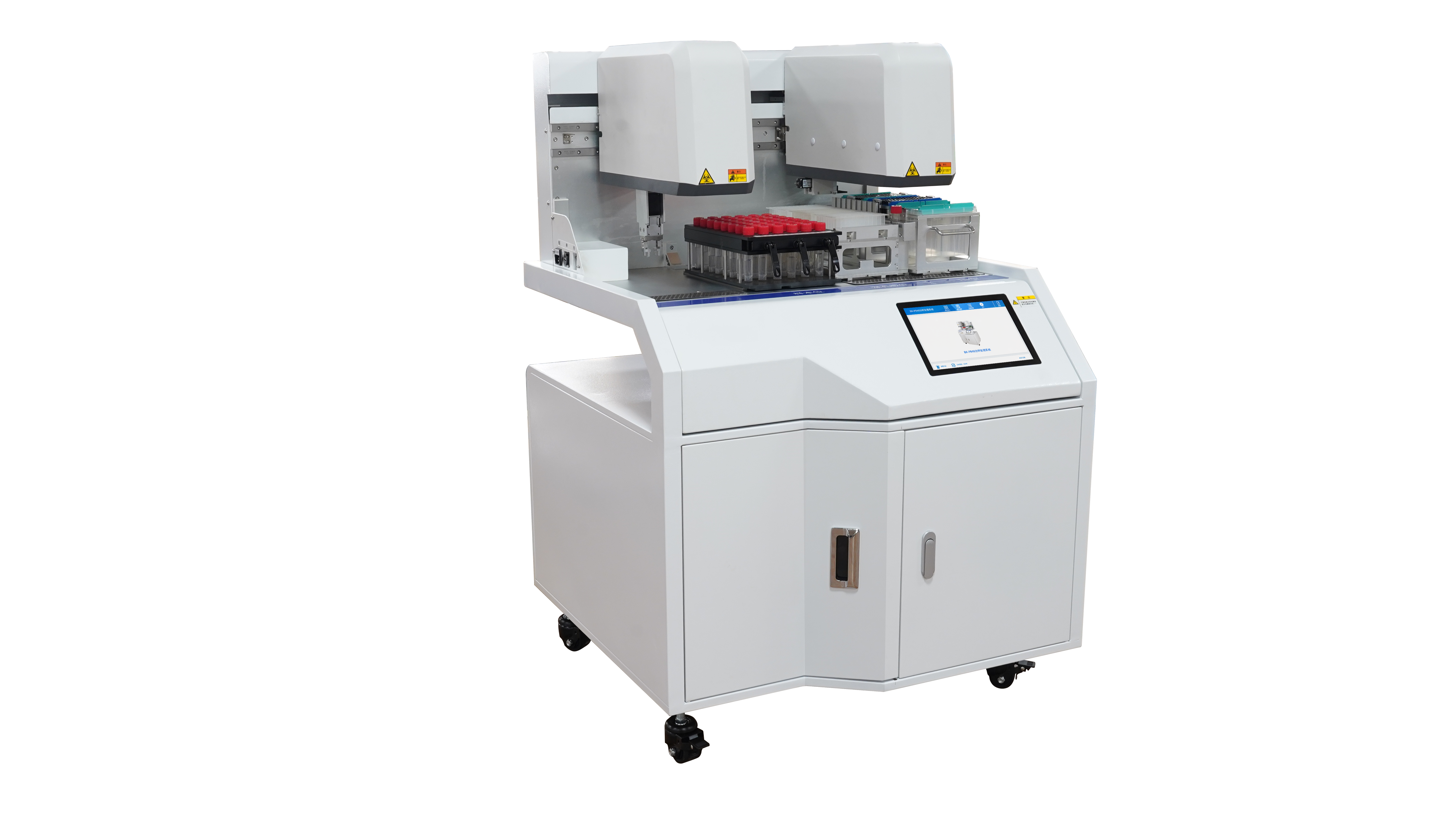

High reputation Biochemistry Analyzer Machine - Automated Sample Processing System BK-PR48 – OLABO
High reputation Biochemistry Analyzer Machine - Automated Sample Processing System BK-PR48 – OLABO Detail:
Introduction

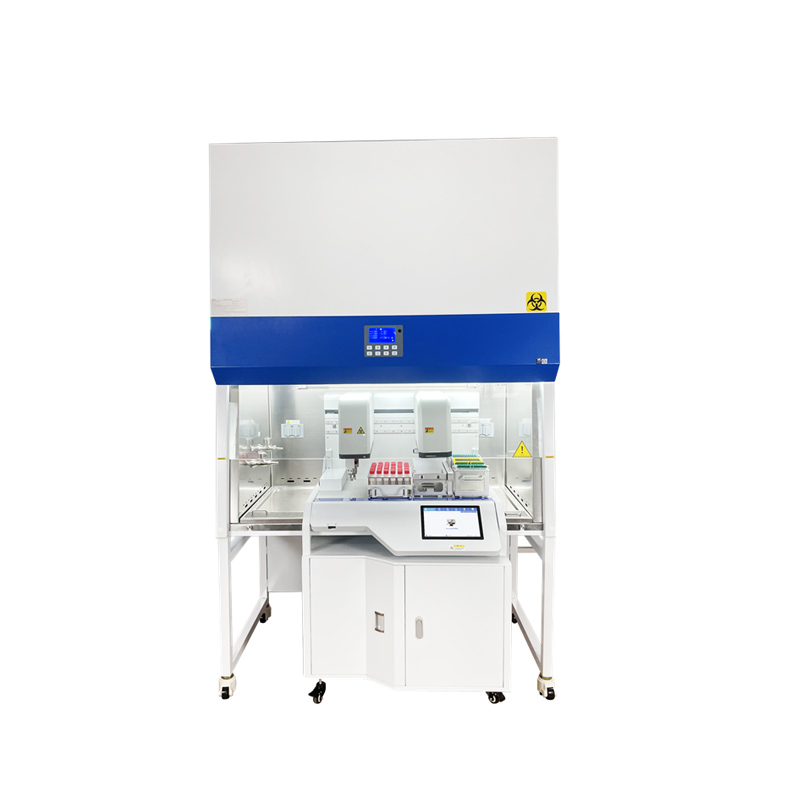

The Automated Sample Processing System can be used with a biological safety cabinet. Could complete lid opening/closing, dispensing, proteinase K/internal control addition, it only takes 16 minutes to transfer 48 samples at one time, which helps laboratories quickly improve their large-scale nucleic acid detection capabilities
Application
Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases.

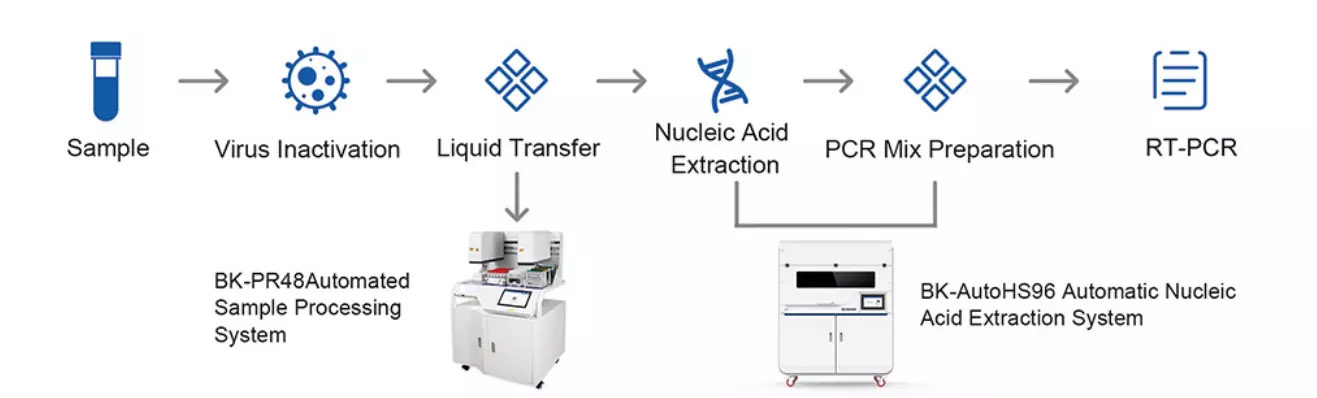

Work Process
Features
Safety: BK-PR48 is equipped with high-efficiency filter and built-in UV lamp, and BK-PR48 can be used with a biological safety cabinet, to effectively prevent aerosol pollution.
Efficient: Cooperative processing with dual robotic arms, 20s/PCs
Convenient: Visual interface operation, easy to operate
Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes. (including blood collection tubes) specifications
Smart: One-key operation, smart dispensation
Parameters
| Model | BK-PR32 | BK-PR48 | ||||||
| Throughput | 1-32 | 1-48 | ||||||
| Processing Time | 32 samples/16min | 48 samples/16min | ||||||
| Sample Type | Plasma, serum, whole blood, swab solution and other samples | |||||||
| Sample Rack | 1Pcs, 3*12 with locking device (compatible with a variety of sampling tubes) | 1Pcs, 6*8 with locking device (compatible with a variety of sampling tubes) | ||||||
| Robot Arm | 1pcs（Dispensation arm） | 2pcs（Dispensation arm and Screw cap arm） | ||||||
| Plate Position | 2 pcs（Compatible with I-shaped and square boards） | 3 pcs（Compatible with multi-specification deep-well plates） | ||||||
| Tip Position | 3 pcs（Including tip waste box position） | |||||||
| Reagent Rack | 1 pcs (4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube) | |||||||
| Protective Function | Can be used in a biological safety cabinet | |||||||
| External droplet catch tray design | ||||||||
| With air-tight and anti-drip design | ||||||||
| Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle | |||||||
| Pipetting Volume | 5-1000ul（1000/50ul Tip） | |||||||
| Pipetting Accuracy | 10ul, CV≤1.5%, Accuracy≤6.0%, 50ul Tip | |||||||
| 50ul, CV≤1.0%, Accuracy≤2.0%, 1000ul Tip | ||||||||
| 100ul, CV≤0.5%, Accuracy≤2.0%,1000ul Tip | ||||||||
| Power Supply | 220V,50/60HZ;110V,60HZ | |||||||
| External Size (W*D*H) | 540*637*1133mm | 827*794*1223mm | ||||||
| Net Weight | 56kg | 100kg | ||||||
| Package Size (W*D*H) | 670*810*1314mm | Main instrument: 925*925*817mm; Base cabinet:1030*995*1045 |
||||||
| Gross Weight | 76kg | Main instrument: 115kg; Base cabinet:105kg |
||||||
Product detail pictures:
