Bottom price Refrigerator For Pharmacy Use - Laboratory Equipment -80 Degree Vertical Freeze Dryer for Industrial – OLABO
Bottom price Refrigerator For Pharmacy Use - Laboratory Equipment -80 Degree Vertical Freeze Dryer for Industrial – OLABO Detail:
Parameter
| Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering | |
| chamber with 8 port manifold | |||||
| Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||
| Tray | 4 pcs | 3 pcs | |||
| Height Between Trays | 50mm | 68mm | |||
| Cold Trap Temperature | ≤-60℃/-80℃ | ||||
| Cold Trap Capacity | 9.5L | ||||
| Cold Trap Size (Dr*H) | Φ215*260mm | ||||
| Vacuum Degree | <10 Pa | ||||
| Water Capture Capacity | 4kg/24h | ||||
| Tray Size (D*H) | Φ200*20mm | ||||
| Freeze Drying Time | 24h | ||||
| Loading Capacity/Shelf (Liquid) | 0.3L | ||||
| Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||
| Drying Chamber Size (D*H) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||
| Can Load Vials Qty | Φ22mm | 260 | 195 | ||
| Φ16mm | 480 | 360 | |||
| Φ12mm | 920 | 690 | |||
| Refrigerant | R600a+R290+R23 | ||||
| Cooling System | Air cooling | ||||
| Consumption | -60℃: 0.9kW,-80℃: 1.5kW | ||||
| Power Supply | AC220V, 50Hz, 60Hz (single phase) | ||||
| 110V/220V, 60Hz (single phase, only for -60℃) | |||||

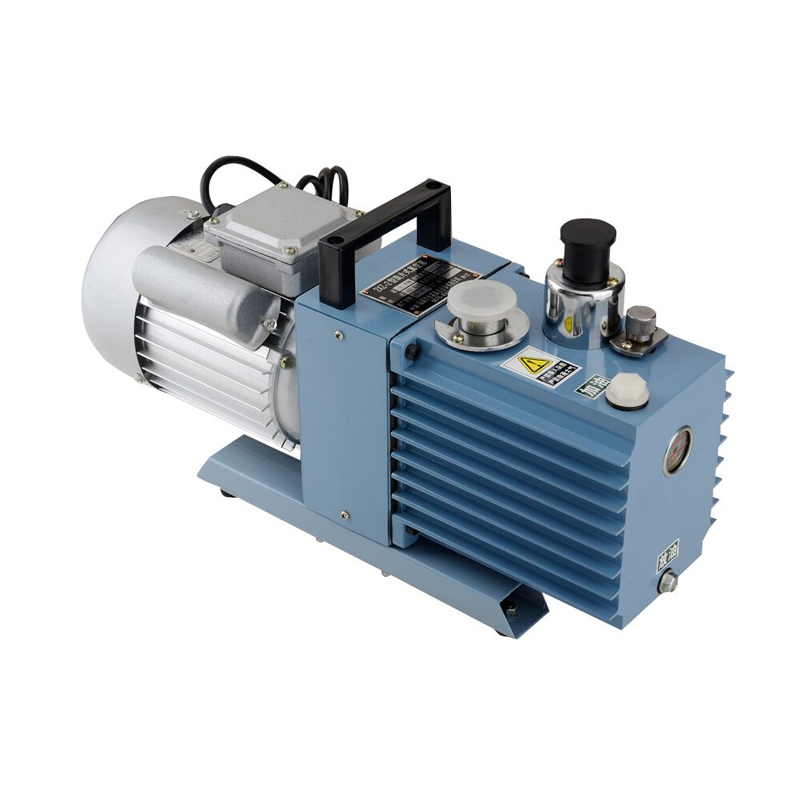

| Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||
| Optional Function & Accessory | Tray heating (for all models), | ||||
| Cold trap defrosting (for all models), | |||||
| Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), | |||||
| Import vacuum pump | |||||
| External Size (W*D*H) | 460*620*920/1370mm | ||||
| Package Size (W*D*H)mm/ | Main Body | 590*710*1170/90kg | 590*710*1170/90kg | ||
| Gross Weight | Drying Chamber | 340*340*460/12kg | 390*390*670/12kg | ||
| Vacuum Pump | 590*380*220/22kg | 590*380*220/22kg | |||
Advantage
*LCD touch screen.
*With historical data inquiry function.
*With USB interface to export the data.
*Large capacity ice condenser trap and without coil inside.
*With cascade refrigeration technology.
*Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
*Ice condenser trap and operation panel are made by stainless steel.
*Drying chamber is transparent which is visual and safe.
*Shelves are stainless steel, which can be adjustable per the requirements.

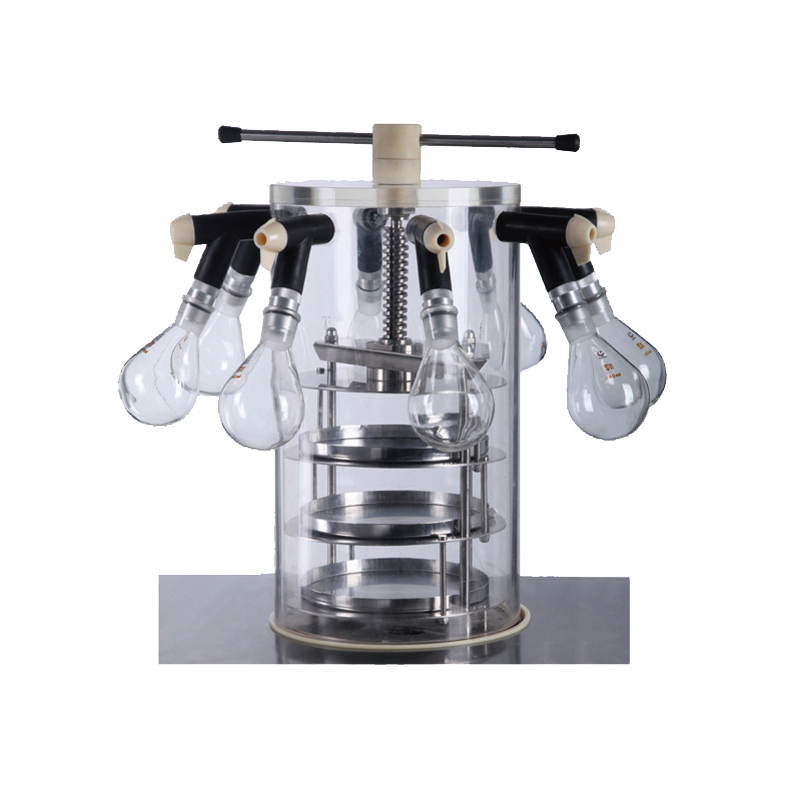

Product detail pictures:
