8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

Our growth depends on the superior equipment ,exceptional talents and continuously strengthened technology forces for Fully Automated Biochemistry Analyzer, Semi Automated Biochemistry Analyser, Vertical Pressure Steam Sterilizer, By more than 8 years of company, now we have accumulated rich experience and advanced technologies from the generation of our merchandise.
8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO Detail:

Parameter

Model BKQ-B50II BKQ-B75II BKQ-B100II BKQ-B120II
Capacity 50L 75L 100L 120L
Chamber Size(mm) φ386*514 φ386*694 φ386*874 φ386*1054
Chamber Material SUS304
Designed Pressure 0.28Mpa
Designed Temp 150℃
Working Pressure 0.22MPa
Working temp. 105~136℃
Temp. Displayaccuracy ±0.1℃
Timing range 0~999min
Dynamic Pulse
Exhaust Times
0~9 times
Dynamic Pulse
Exhaust Temp.
105~134℃
Dissolution Temp. Range 60~100℃ (programmable)
Temp. Holding Range 40~60℃ (programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW
Power Supply AC110/220V±10%, 50/60Hz 380V, 50Hz/200V, 50/60Hz
SS Basket 1 pc 2pcs 2pcs 3pcs
External Size(W*D*H)mm 640*550*970 640*550*1070 640*550*1270 640*550*1370
Packing Size(W*D*H)mm 750*745*1100 750*745*1240 750*745*1450 750*745*1540
Gross Weight(kg) 102 112 125 140

Safety Features

● Over pressure. Safety valve can automatically open to release pressure.
● Over temperature. The system will power off automatically.
● Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
● Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
● Over current. over voltage or electric leakage protection apparatus-air switch.
● Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features

● Water inlet filter to keep high water quality.
● Optional printer for recording sterilization data.
● LED screen displays all steps of full process as well as error codes.
● Independent quick service window, easy for repairing and maintenance.
● Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
● Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
● Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
● Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
● Adopting certain temperature(98~102℃) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
● Inner stainless steel water tank for water and steam to circulate inside. Steam dose not exhaust during sterilization, so as to keep the outside clean and dry.
● Drying function.
● Optional stainless steel bucket and tray.

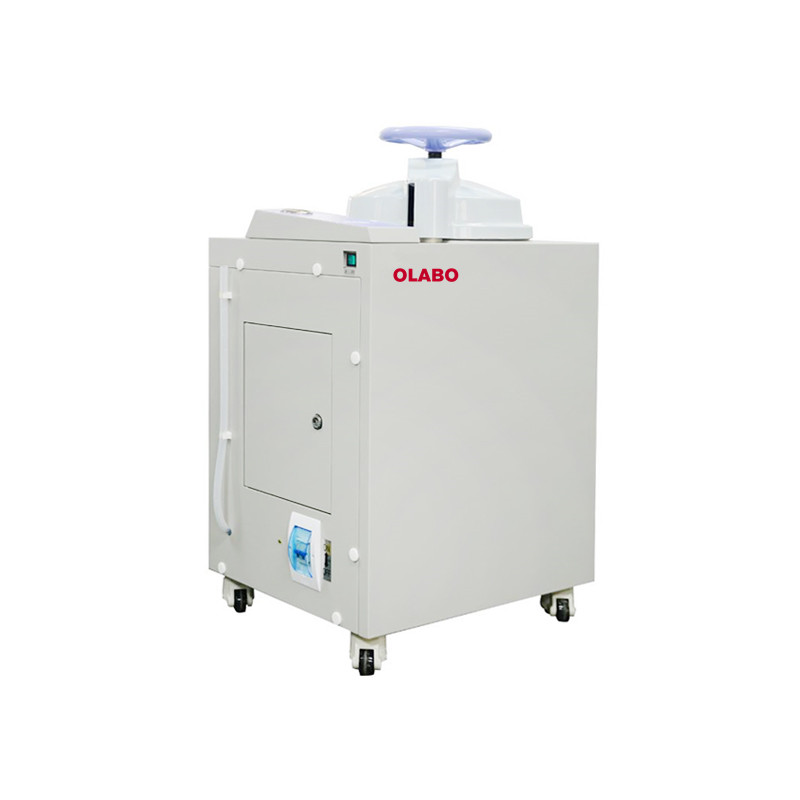

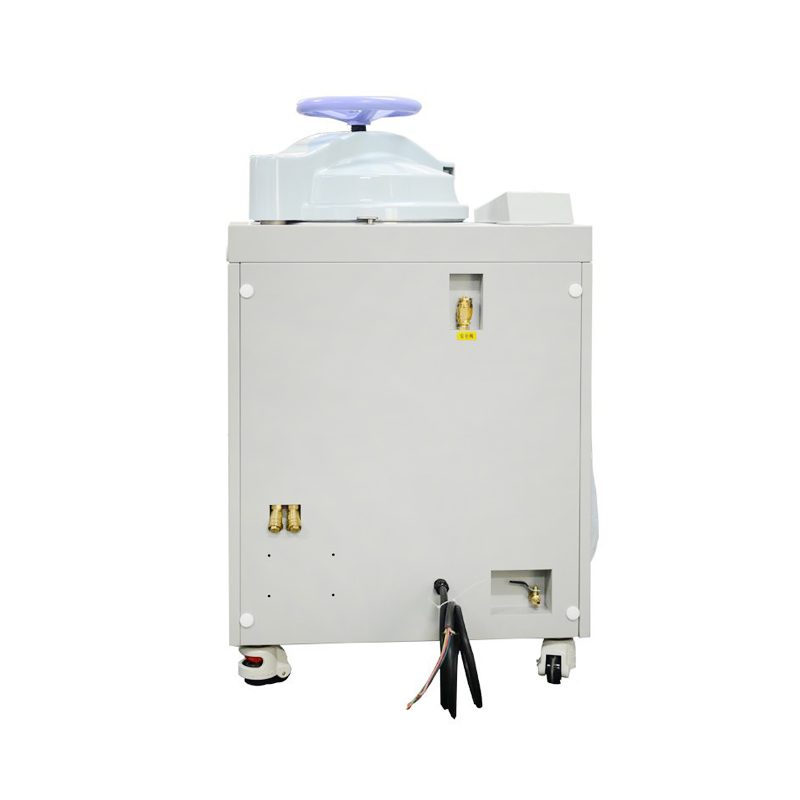

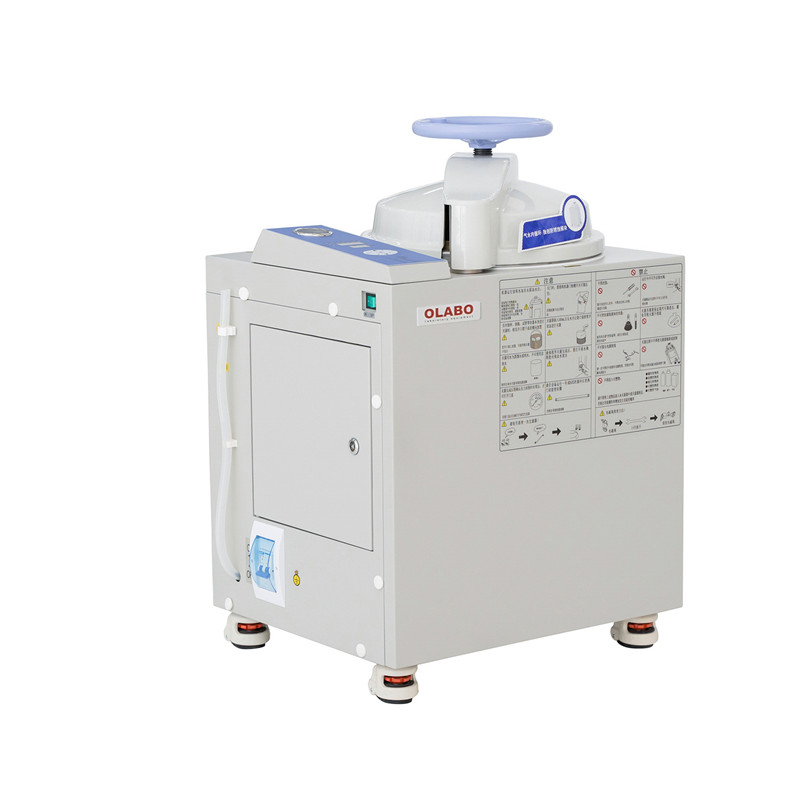

Product detail pictures:

8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO detail pictures

8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO detail pictures

8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO detail pictures

8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO detail pictures

8 Year Exporter Large Autoclaves - OLABO Manufacturer Vertical Autoclave For Lab – OLABO detail pictures
