Nucleic Acid Extraction System

1.Product Description：

This instrument is a high-tech product that uses the universal magnetic bead method to extract nucleic acids. It has the advantages of high automation, fast extraction speed, stable results, and easy operation. Using a dedicated 96-well deep well plate, 1-32 samples can be operated simultaneously.It is widely used in routine scientific research, genomics, disease control system, food safety, forensic and other fields.

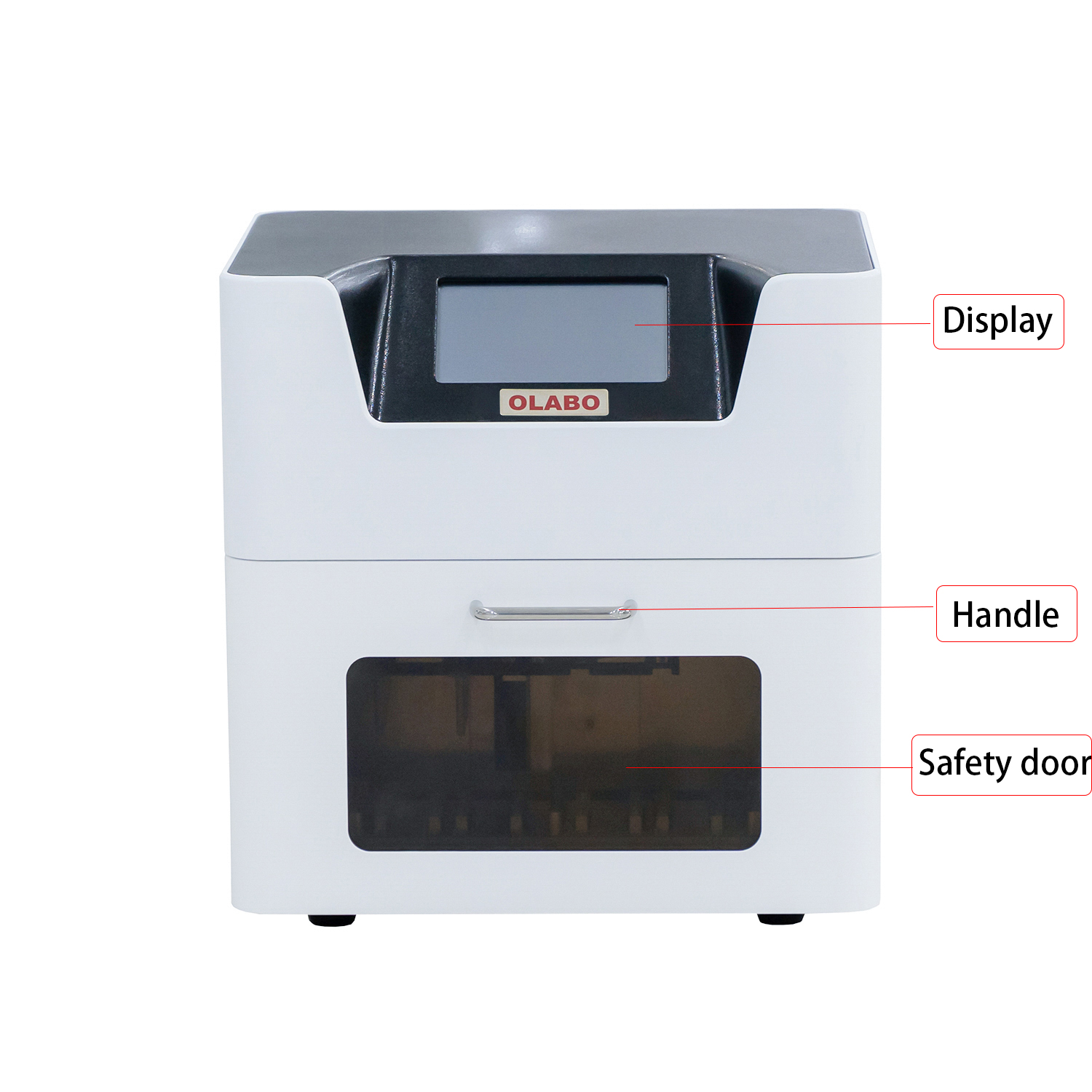

Figure 1-1 The front of the nucleic acid extractor

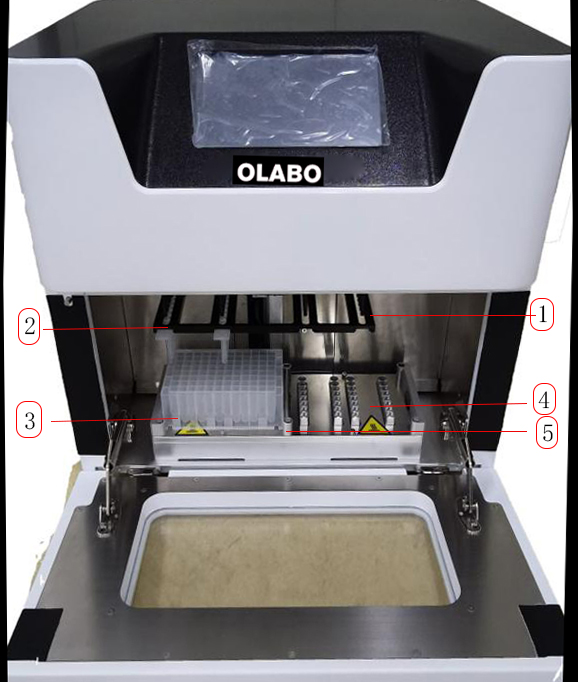

  Figure 1-2 Experiment Cabin

As shown in Figure 1-2, the contents of the experiment cabin are as follows:

(1) Magnetic rod holder and magnetic rod

(2) Mixing frame

(3) Guide strips at both ends of the 96-well deep-well plate

(4) Heating strip

(5) Middle guide strip of 96-well deep well plate

2.Working principle：

Use the magnetic rod on the magnetic rod holder of the experiment chamber to move the magnetic beads with nucleic acid to different reagent wells, and then use the stirring sleeve sheathed on the outer layer of the magnetic rod to stir the liquid repeatedly and quickly to make the liquid and the magnetic beads uniform After cell lysis, nucleic acid adsorption, washing and elution, high purity nucleic acid is finally obtained, as shown in the figure below.

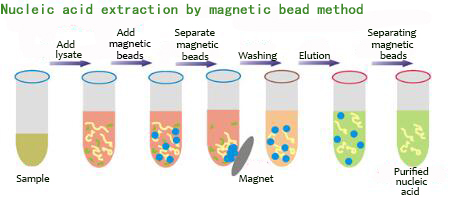

 Figure 2-1 Schematic diagram of the principle of nucleic acid extraction

3.Matters needing attention：

a) Ambient temperature: 10 ℃～30 ℃;

b) Relative humidity: ≤70%;

c) Atmospheric pressure: 86 kPa～106 kPa;

d) There is no strong vibration and corrosive gas around;

e) Avoid direct sunlight or other heat and cold sources;

f) Keep away from strong electromagnetic field interference;

g) Power supply voltage: 220 V, 50 Hz;
