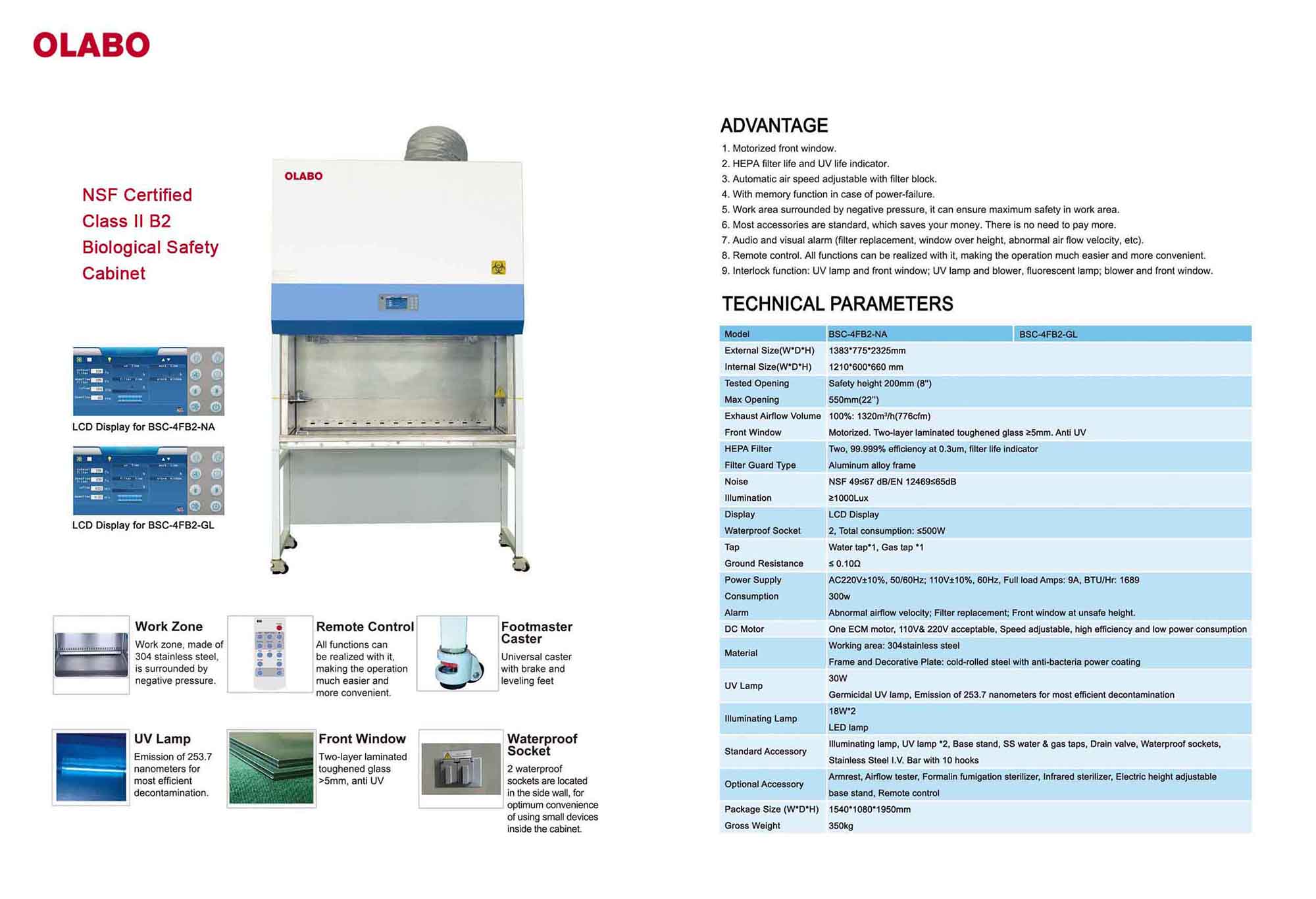

NSF Certified Class II B2 Biological Safety Cabinet
Parameter
| Model | BSC-4FB2-NA | BSC-4FB2-GL |
| External Size(W*D*H) | 1383×775×2325mm | |
| Internal Size(W*D*H) | 1210×600×660 mm | |
| Tested Opening | Safety height 200mm (8'') | |
| Max Opening | 550mm(22’’) | |
| Exhaust Airflow Volume | 100%:1320m3/h(776cfm) | |
| Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV | |
| HEPA Filter | Two, 99.9999% efficiency at 0.3um, filter life indicator | |
| Filter Guard Type | Aluminum alloy frame | |
| Noise | NSF 49≤67 dB/EN 12469≤65dB | |
| Illumination | ≥1000Lux | |

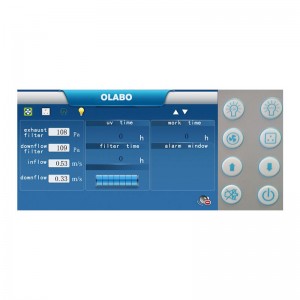

| Display | LCD Display | |

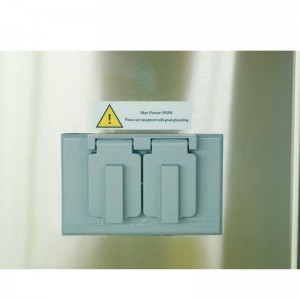

| Waterproof Socket | 2, Total consumption:≤500W | |
| Tap | Water tap*1, Gas tap *1 | |
| Ground Resistance | ≤ 0.10Ω | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | |
| Consumption | 300w | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | |
| DC Motor | One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption | |
| Material | Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating | |
| UV Lamp |
30W | |

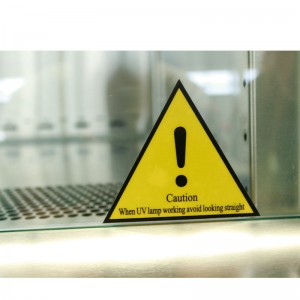

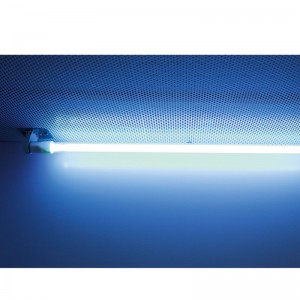

| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | ||
| Illuminating Lamp | 18W*2 | |
| LED lamp | ||
| Standard Accessory | Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
|
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Remote control |
|
| Package Size (W*D*H) | 1540*1080*1950mm | |
| Gross Weight | 350Kg |
|
BSC is a kind of necessary equipment in laboratories of microbiology, biomedical science, genetic recombination, animal experiment and biological products. It plays a significant role in the occasion where protective actions are needed for operator, such as healthcare, pharmaceutical analysis and biomedical research. This equipment provides a germ-free and dust-free working environment during bacterial culture.
Advantage
- Motorized front window.
- HEPA filter life and UV life indicator.
- Automatic air speed adjustable with filter block.
- With memory function in case of power-failure.
- Work area surrounded by negative pressure, it can ensure maximum safety in work area.
- Most accessories are standard, which saves your money. There is no need to pay more.
- Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
- Remote control. All functions can be realized with it, making the operation much easier and more convenient.
- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
