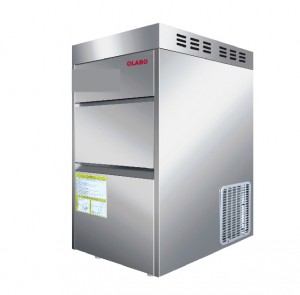

OLABO Professional Customization High Quality Mini Home Ice Maker

Short Description:

Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc.

Send email to us Download as PDF

Product Detail

Brochures

Product Tags

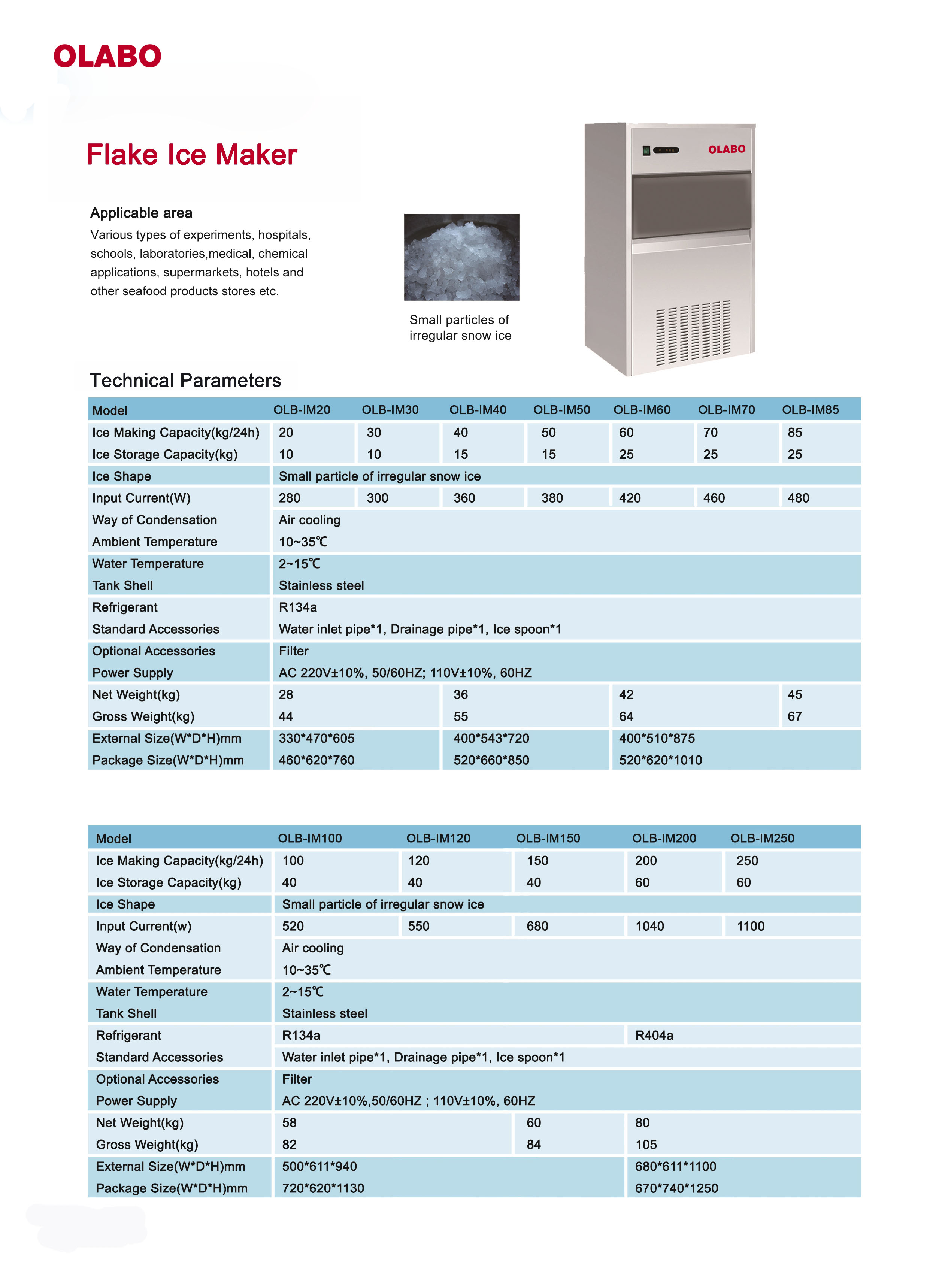

Parameter

Model	IMS-20	IMS-30	IMS-40	IMS-50	IMS-60	IMS-70
Ice production (kg/24h)	20	30	40	50	60	70
Ice storage capacity (kg)	10	10	15	15	25	25
Input power (w)	280	300	360	380	420	460
Condensation method	Wind cold
Water inlet method	Tap water automatically enters
Box shell	stainless steel
Ice shape	Irregularly small particles of snowflake ice
Compressor/icing agent	Imported fluorine-free/134a
Dimension of machine (mm)	330480605	330480605	400543720	400543720	400510875	400510875
Net weight (kg)	32	38	40	40	45	57

Advantage

1. Adopt stainless steel shell, one-piece structure, compact and simple, save space.
2. The insulation layer of the box machine is made of fluorine-free foam, which has good heat preservation, and the inner tank is clean and energy-saving.
3. Adopt R134a compressor.
4. The ice-making process is controlled by a full computer program, and the control runs smoothly.
5. Adopt Italian Haitec secondary reducer and Korean GGM motor, with low noise and stable operation. The top of the ice maker is provided with cooling holes and a fan, and the motor of the reducer can operate normally under high temperature and harsh conditions.
6. Row-cavity separator ice-making evaporator is adopted, which has high refrigeration efficiency and large ice production.
7. Spiral hob extrusion ice-making type, compact structure, real ice, water automatic separation. The optimized design of the blade of the ice blade makes the ice shape small.
8. Water tank float type water inlet system, no residual water, no deicing process, no water loss, water saving and energy saving.
9. There are protective shutdown functions such as ice full display, water shortage display, overcooling protection display, fault display and so on. The ice maker will automatically stop when the ice is full and lack of water, and it will automatically turn on when there is a call for water. It has an automatic memory recovery function.
10. The shape of the ice made is amorphous fine granular snowflake ice, the shape of the ice is small, it can penetrate into a narrow gap, the cooling speed is fast, and the ice bath is good. It is designed for the laboratory.
11. The front part is equipped with power switch and function indicator lights, thoughtful and detailed operation instructions, intuitive and convenient to use, and all indicators have passed the electrical performance test.
12. Products are used in laboratories of schools, biology, chemical industry, scientific research institutes and other types. And supermarket food preservation, fishery fishing refrigeration, chemical industry, hotel, food processing and other industries.
