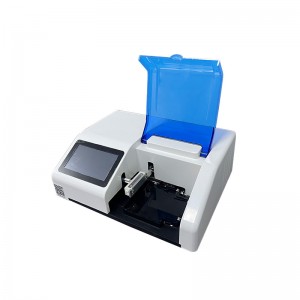

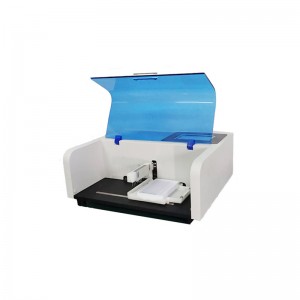

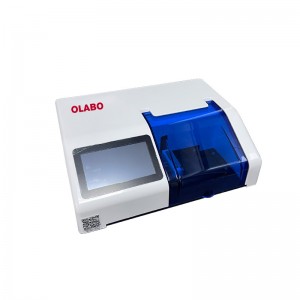

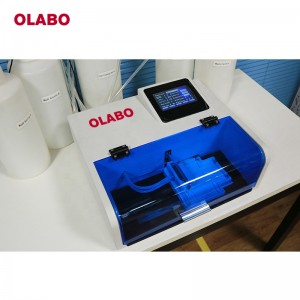

OLABO Elisa Microplate Washer BK-9622 BK-9613

Short Description:

The microplate washer is a medical device specially used for cleaning the microplate, and it is generally used in conjunction with the microplate reader. It is mainly used to clean some residues after the detection of the ELISA plate, thereby reducing the error caused by residues in the subsequent detection process. It has been widely used in the cleaning of enzyme-labeled plates in hospitals, blood stations, sanitation and epidemic prevention stations, reagent factories, and research laboratories.

Send email to us Download as PDF

Product Detail

Brochure

Product Tags

Features

Parameter

* Microcomputer control, automatically complete the plate washing operation.

* The liquid level sensing function automatically detects the liquid level, and automatically alarms when the cleaning liquid is insufficient and the waste liquid is overflowing.

* The user-friendly operating system allows users to customize the plate type, set the number of washes, the amount of wash solution, the way to wash the plate, the suction point, the soaking and shaking time and other parameters.

* The wash head is self-balancing, has two-point aspiration, and performs bottom flushing.

*2 kinds of Automatic washing,Soaking and Shaking, to reduce the interference adsorption during the reaction; time adjustable.

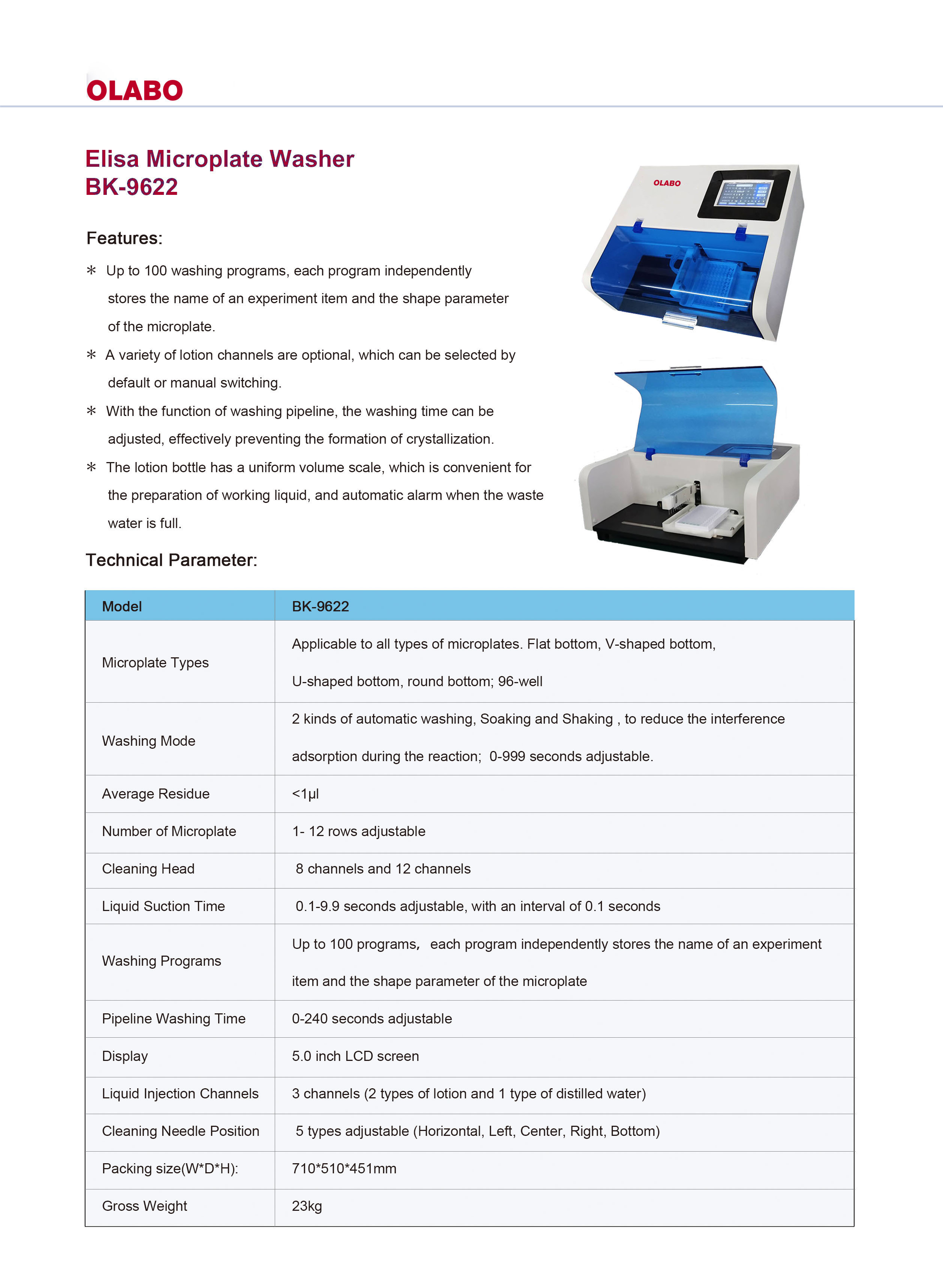

Model	BK-9622	BK-9613
Cleaning Head	8 channels and 12 channels	96 pins, single row controllable
Microplate Types	Four kinds, flat bottom, U bottom, V bottom, round bottom
Average Residue	<1μl(per hole)	<0.7μl(per hole)
Liquid Suction Time	0.1~999.9 seconds adjustable, with an interval of 0.1 seconds
Line Flush Time	0~240 seconds, adjustable
Washing Programs	Up to200 programs
Display	7-inch touch display
Liquid Injection Channels	3 (2 types of lotion and 1 type of distilled water)
Cleaning Needle Position	6 types (horizontal,left, middle, right, bottom, hole spacing)
Consumption	80W	350W
Power Supply	AC220V±10%, 50/60Hz;110±10%, 60Hz
Packing size(WDH):	690490400mm	740675562mm
Gross Weight	22kg	42kg
