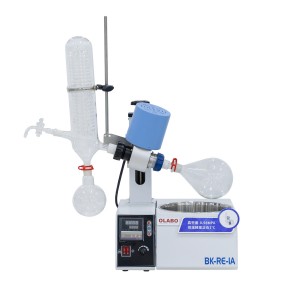

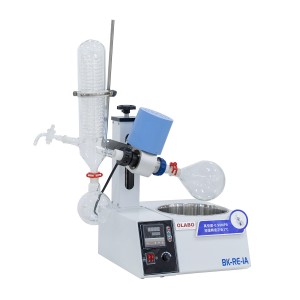

OLABO Laboratory Rotary evaporator 1L Small Capacity BK-RE-1A

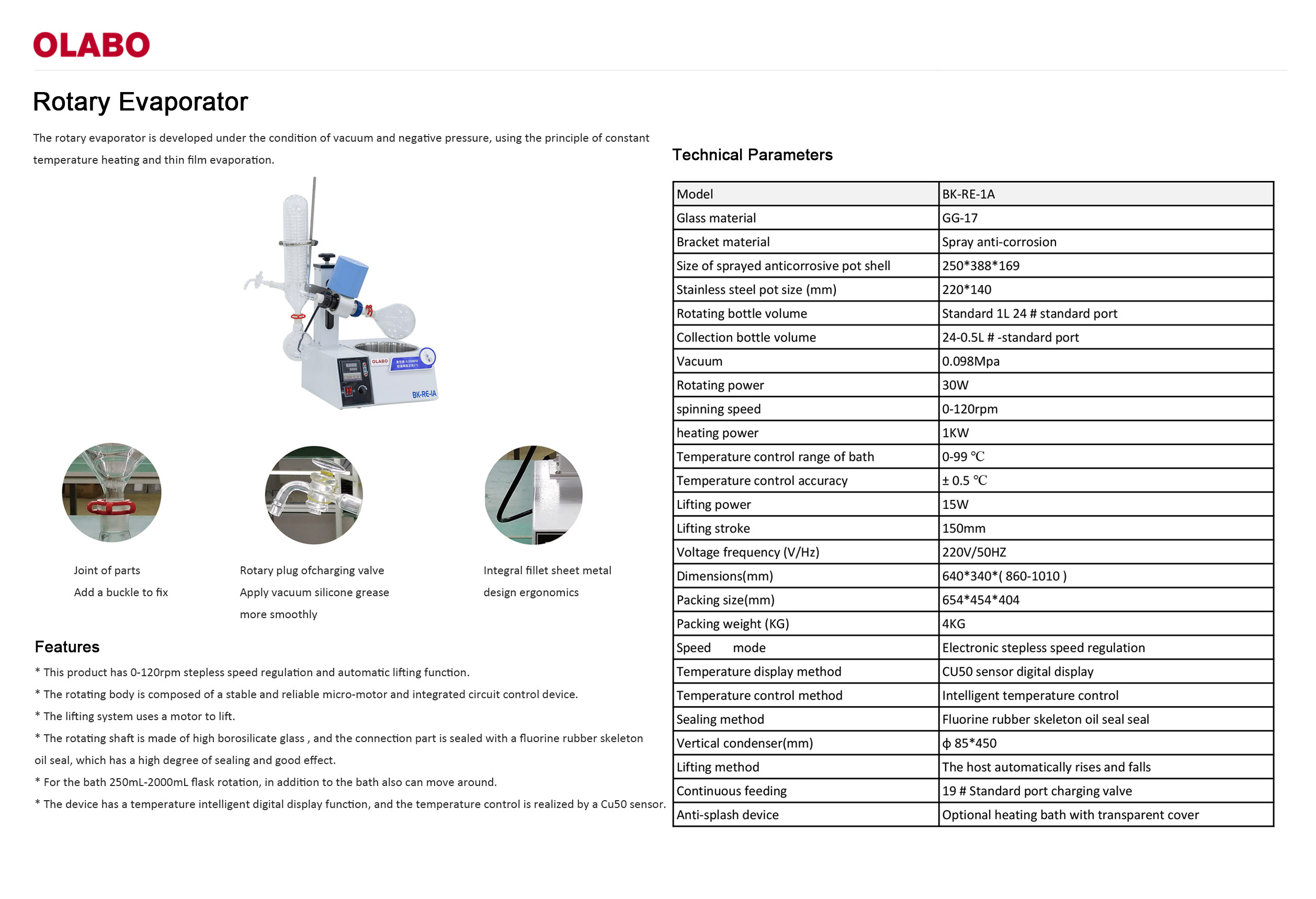

Technical Parameters
|
Model
|
BK-RE-1A
|
|

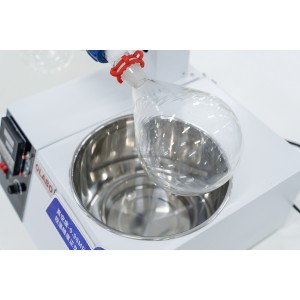

Rotary Bottle
|
1 L24#(standard size）
|
|
Collecting Bottle
|
0.5L 24＃(standard size）
|
|
Glass Material
|
GG-17
|
|
Shelf Material
|
Spray anti-corrosion steel
|
|
Heating Unit Size
|
250*388*169mm
|
|
Chamber Size
|
220*140 mm
|
|
Heating Power
|
1KW
|
|
Temp. Range
|
0-99℃
|
|
Temp. Accuracy
|
±1℃
|
|
Temp. Sensor
|
PT100
|
|
Vacuum
|
0.096Mpa
|
|
Rotary Motor
|
30W
|
|
Rotating Speed
|
0-120rpm
|
|
Lift
|
Motor
|
|
Lifting Power
|
15W
|
|
Lifting Stroke
|
150mm
|
|

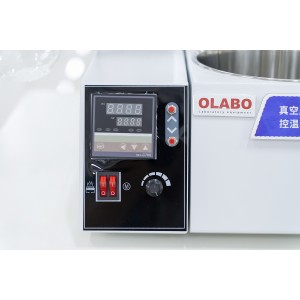

Speed Control
|
Stepless speed controller
|
|
Sealing Method
|
Fluorine rubber skeleton oil seal
|
|

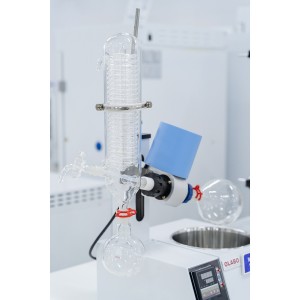

Condenser
|
φ85*450mm
|
|
Charging Valve
|
19#(standard size)
|
|
Power Supply
|
220V/50Hz
|
|
External Size(W*D*H)
|
640*340*（860-1010）mm
|
|
Package Size(W*D*H)
|
665*465*415mm
|
|
Gross Weight
|
20kg
|
|
Standard Accessory
|
1 L Rotary Bottle*1, 0.5 L Collecting Bottle*1
|
|
Optional Accessory
|
Vacuum pump, Recirculating chiller, Transparent cover
|
Downloads: Rotary evaporator BK-RE-1A
