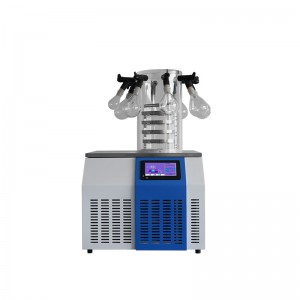

OLABO Laboratory and Food Vacuum mini Freeze Dryer Lyophilizer

Short Description:

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.


Product Detail

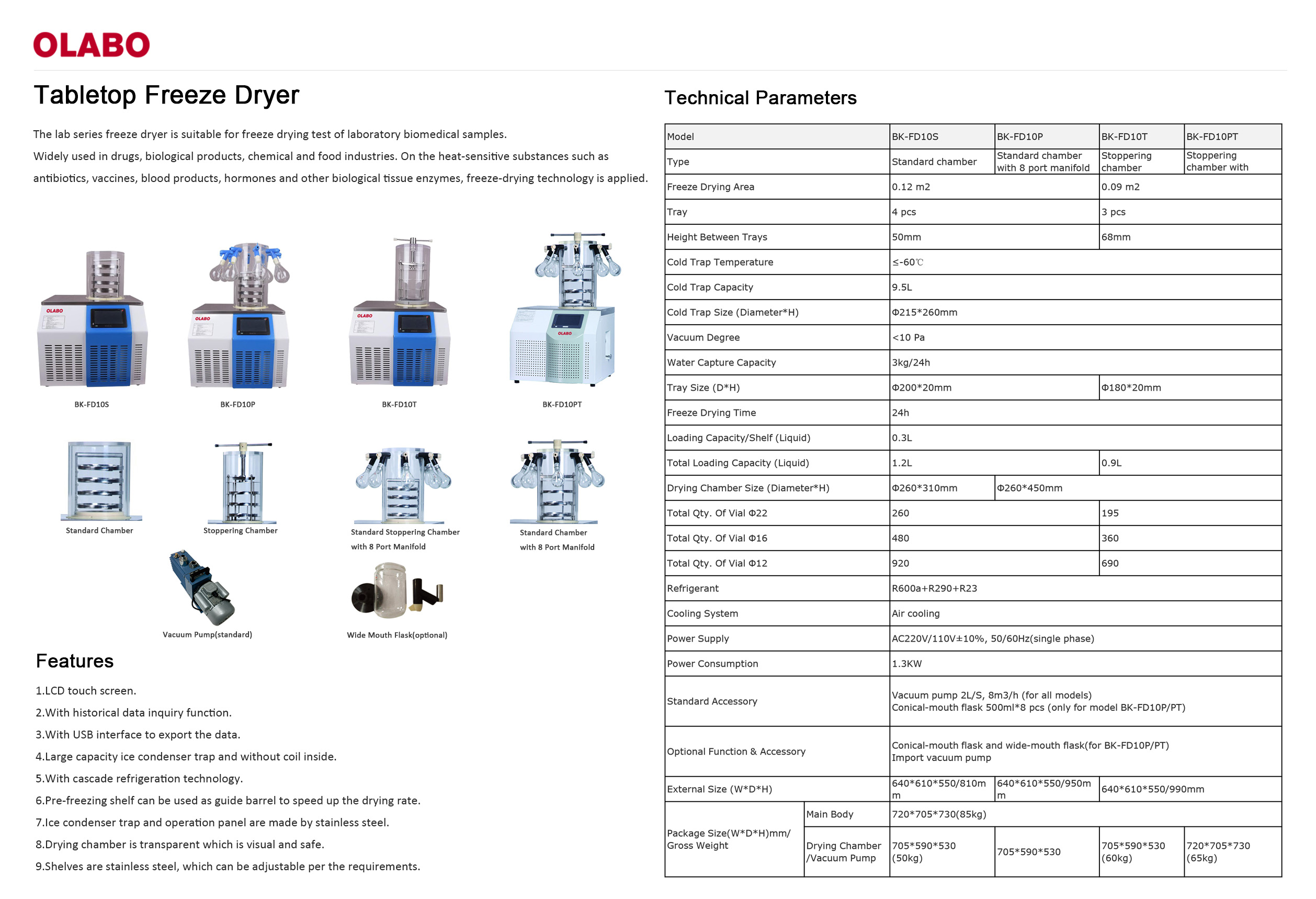

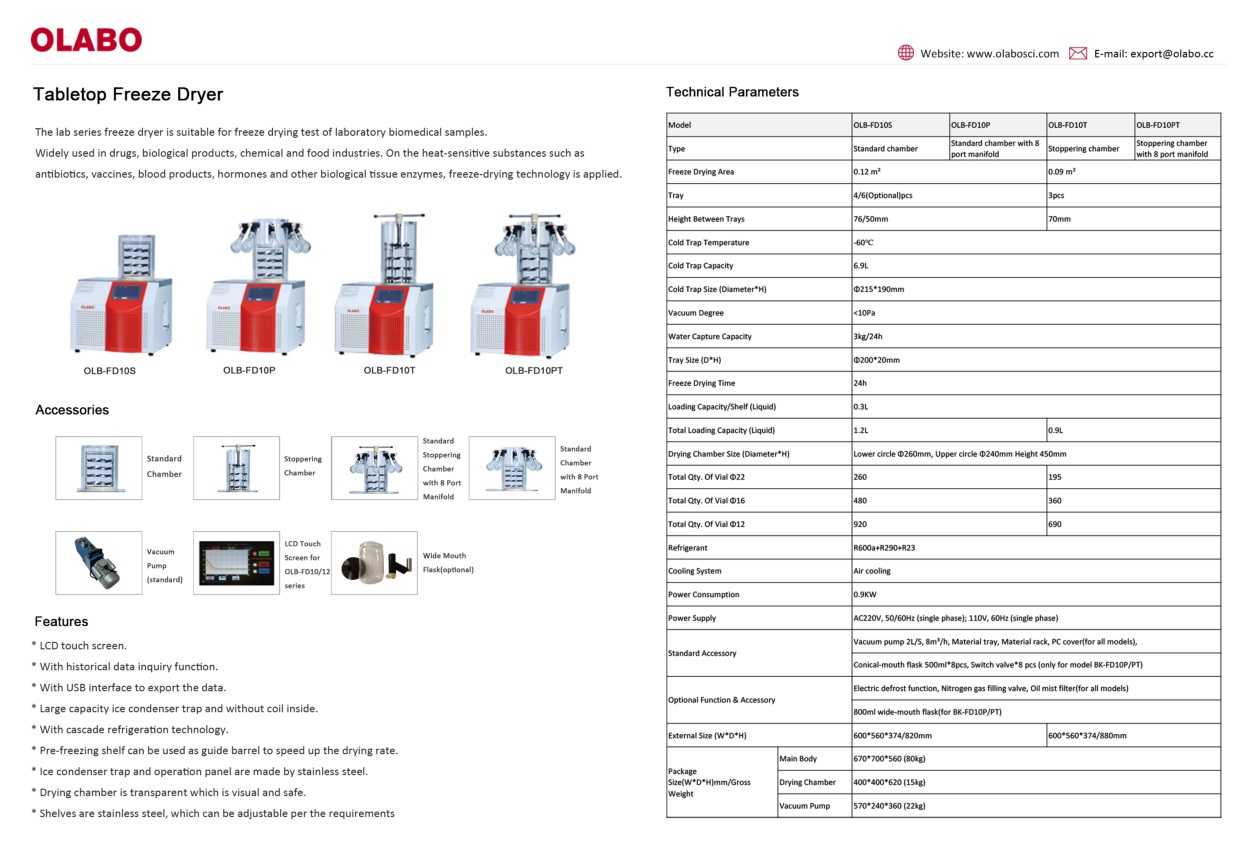

Brochures

Product Tags

Parameter

Model BK-FD10S BK-FD10P BK-FD10T BK-FD10PT
Type Standard chamber Standard chamber with 8 port manifold Stoppering chamber Stoppering
chamber with
8 port manifold
Freeze Drying Area 0.12 m2 0.09 m2
Tray 4 pcs 3 pcs
Height Between Trays 50mm 68mm
Cold Trap Temperature ≤-60℃
Cold Trap Capacity 9.5L
Cold Trap Size (Diameter*H) Φ215*260mm
Vacuum Degree <10 Pa
Water Capture Capacity 3kg/24h
Tray Size (D*H) Φ200*20mm Φ180*20mm
Freeze Drying Time 24h
Loading Capacity/Shelf (Liquid) 0.3L
Total Loading Capacity (Liquid) 1.2L 0.9L
Drying Chamber Size (Diameter*H) Φ260*310mm Φ260*450mm
Total Qty. Of Vial Φ22 260 195
Total Qty. Of Vial Φ16 480 360
Total Qty. Of Vial Φ12 920 690
Refrigerant R600a+R290+R23
Cooling System Air cooling
Power Supply AC220V/110V±10%, 50/60Hz(single phase)
110V/60Hz (single phase)
Power Consumption 1.3KW
Power Supply AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)

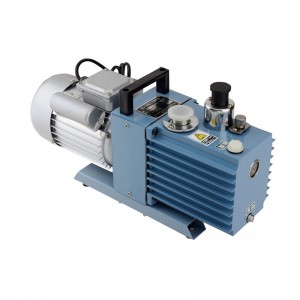

Standard Accessory Vacuum pump 2L/S, 8m3/h (for all models)
Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)
External Size (W*D*H) 640*610*550/810mm 640*610*550/950mm 640*610*550/990mm
Package Size(W*D*H)mm/
Gross Weight
Main Body 720*705*730(85kg)
Drying Chamber
/Vacuum Pump
705*590*530
(50kg)
705*590*530 705*590*530
(60kg)
720*705*730
(65kg)

Advantage

*LCD touch screen.

*With historical data inquiry function.

*With USB interface to export the data.

*Large capacity ice condenser trap and without coil inside.

*With cascade refrigeration technology.

*Pre-freezing shelf can be used as guide barrel to speed up the drying rate.

*Ice condenser trap and operation panel are made by stainless steel.

*Drying chamber is transparent which is visual and safe.

*Shelves are stainless steel, which can be adjustable per the requirements.
