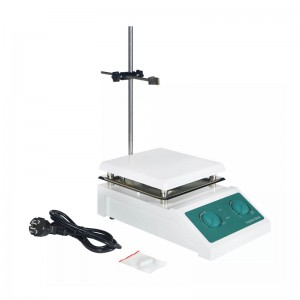

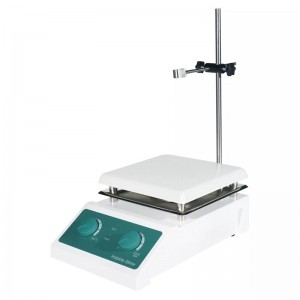

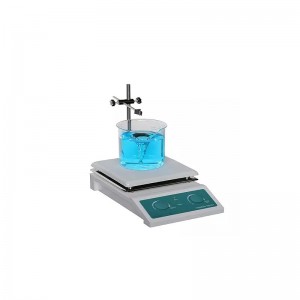

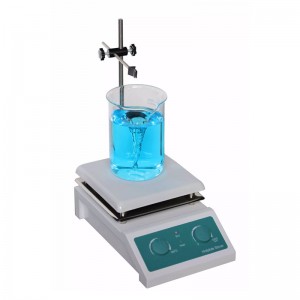

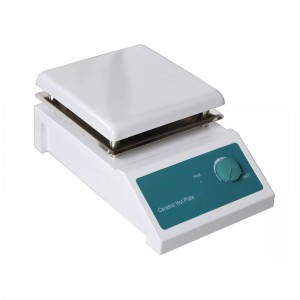

OLABO Hot Plate Magnetic Stirrer with CE

Short Description:

Magnetic stirrer is an ideal analytical detector for liquid heating and stirring,special in thermostatic automatically regulating.


Product Detail

Brochures

Product Tags

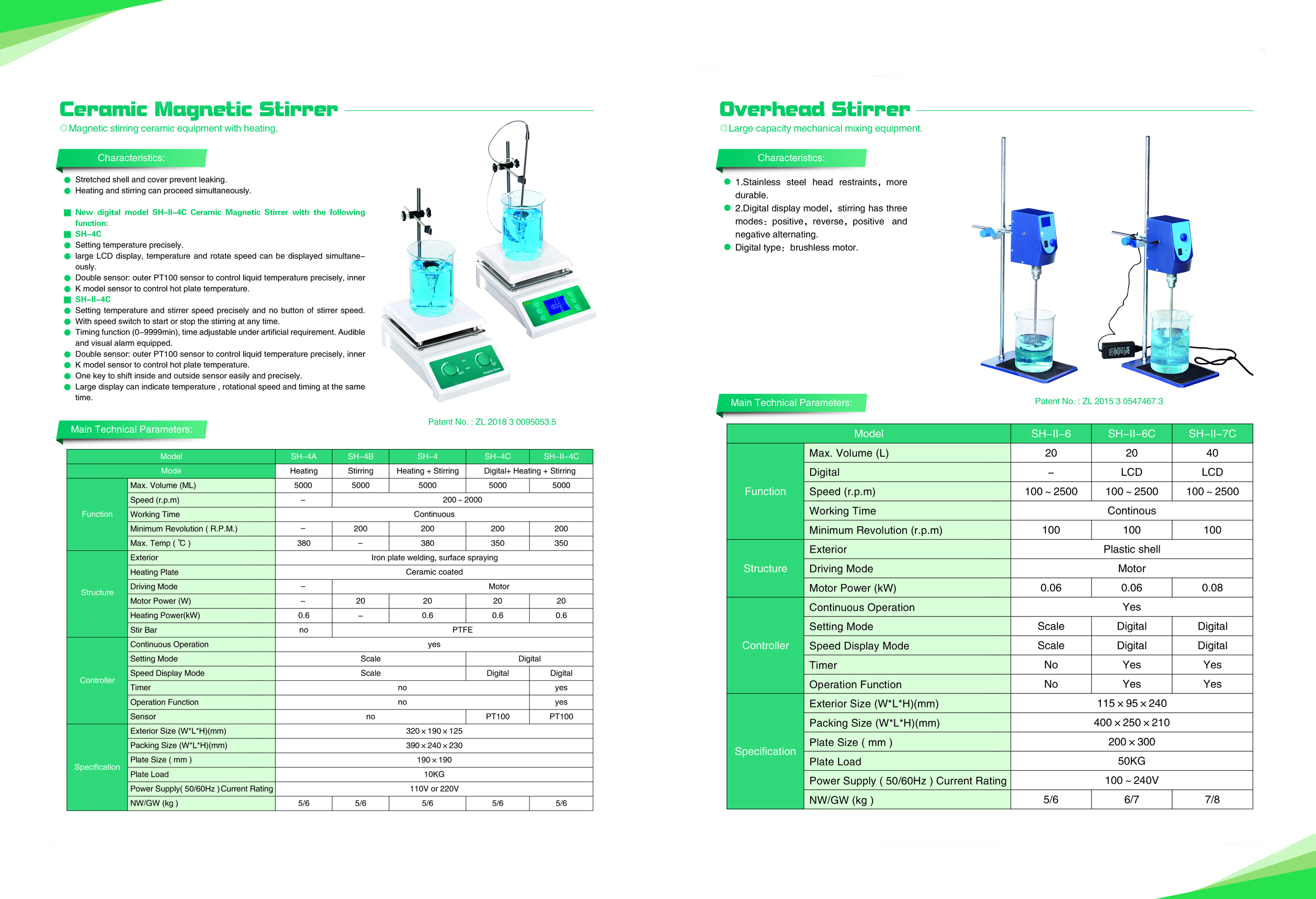

Parameter

Model SH-4A SH-4B SH-4 SH-4C SH-II-4C
Mode Heating Stirring Heating+Stirring Digital+Heating+Stirring
Function Max. Volume(ML) 5000 5000 5000 5000 5000
Speed(r.p.m) - 200~2000
Working time Continuous
Minimum revolution ( R.P.M.) - 200 200 200 200
Max. temp(℃) 380 - 380 350 350
Structure Exterior Iron plate welding, surface spraying
Heating plate Ceramic Coated
Driving mode - Motor
Motor power(W) - 20 20 20 20
Heating power(kW) 0.6 - 0.6 0.6 0.6
  Stir bar no PTFE
Controller Continuous yes
Operation
Setting mode Scale Digital
Speed display Scale Digital Digital
Mode
Timer no yes
Operation function no yes
Sensor no PT100 PT100
Specification Exterior size(W*L*H)(mm) 320*190*125
Packing size(W*L*H)(mm) 390*240*230
Plate size(mm) 190*190
Plate load 10KG
Power supply(50/60Hz) 110V or 220V
NW/GW (kg) 5/6 5/6 5/6 5/6 5/6

Advantage

1.Stretched shell and cover prevent leaking.

2. Heating and stirring can proceed simultaneously.

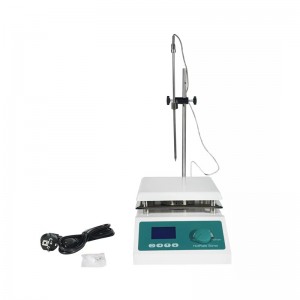

New digital model SH-II-4C, Ceramic Magnetic Stirrer with the following function:
SH-4C
1. Setting temperature precisely.And stirring speed stepless adjustable.

2. Large LCD display,temperature and rotate speed can be displayed simultaneously.

3. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.

4.K mode sensor to control hot plate temperature.

SH-II-4C
1.Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.

2.With speed switch to start or stop stirring at any time.

3. Timing function (0-9999min), time adjustable under artficial requirement. Audible and visual alam equipped.

4. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.

5. One key to shift inside and outside sensor easily and precisely.

6.Large screen LCD display can indicate temperature, rotational speed and timing at the same time.
